Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly and brake gradually to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact spare tire. Go to a dealer as soon as possible to have the regular tire repaired or replaced.


  1. Park the vehicle on firm, level, non-slippery surface and apply the parking brake.
  2. Put the transmission into P.
  3. Turn on the hazard warning lights and set the power mode to VEHICLE OFF.
Detail
Follow compact spare precautions:
Periodically check the tire pressure of the compact spare. It should be set to the specified pressure. Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm2)

When driving with the compact spare tire, keep the vehicle speed under 50 mph (80 km/h). Replace with a regular tire as soon as possible.

The compact spare tire and wheel in your vehicle are specifically for this model. Do not use them with another vehicle. Do not use another type of compact spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of the regular rear tires and replace it with the compact spare tire. Remove the flat front tire and replace it with the regular tire that was removed from the rear. Mount the tire chains on the front tire.

NOTICE
Do not use the jack if it doesn’t work properly. Call your dealer or a professional towing service.

Getting Ready to Replace the Flat Tire

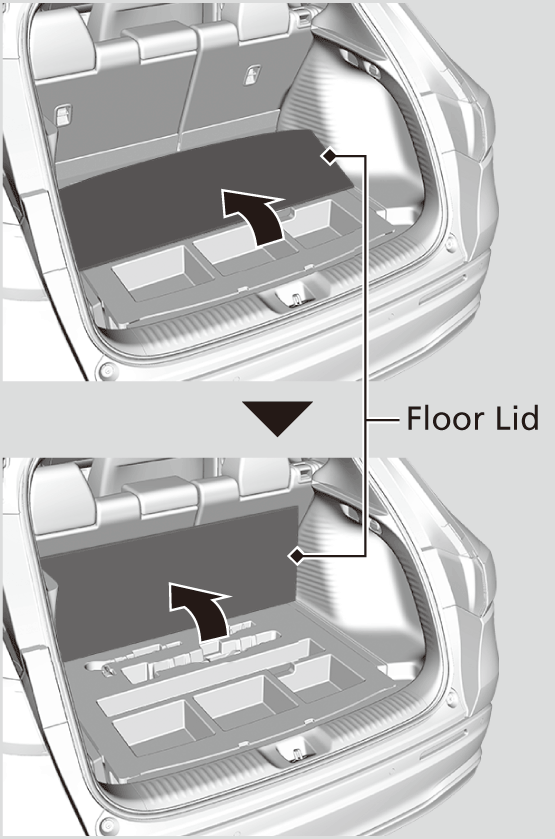

  1. Fold the cargo area floor lid into three parts.
  1. Take the tool case out of the cargo area. Take the wheel nut wrench, jack handle bar and jack out of the tool case.
  2. Unscrew the wing bolt, and remove the spacer cone. Then, remove the compact spare tire.

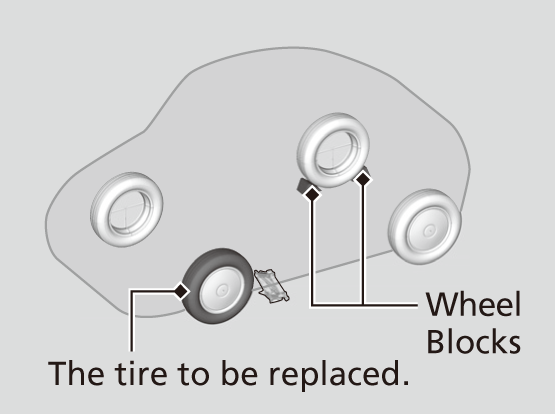

  1. Place a wheel block or rock in front and rear of the wheel diagonal to the flat tire.

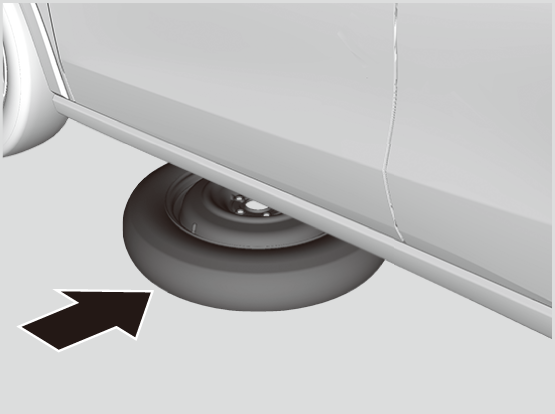

  1. Place the compact spare tire (wheel side up) under the vehicle body, near the tire that needs to be replaced.

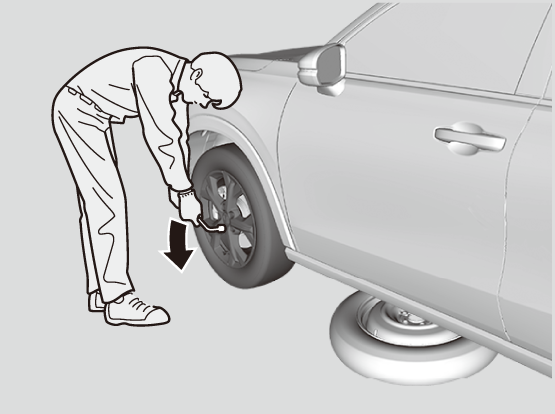

  1. Loosen each wheel nut about one turn using the wheel nut wrench.

How to Set Up the Jack

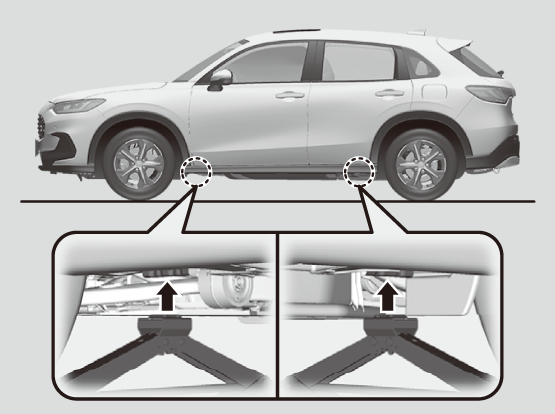

  1. Place the jack under the jacking point closest to the tire to be changed.

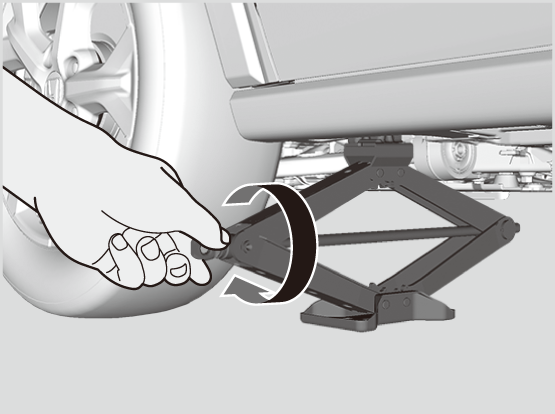

  1. Turn the end bracket clockwise as shown in the image until the top of the jack contacts the jacking point.
    • Make sure that the jacking point tab is resting in the jack notch.

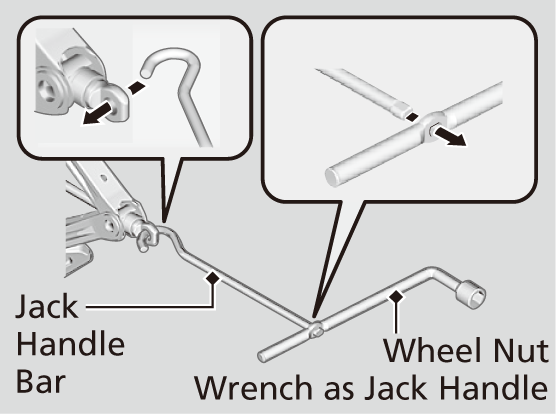

  1. Raise the vehicle, using the jack handle bar and the jack handle, until the tire is off the ground.
WARNING

The vehicle can easily roll off the jack, seriously injuring anyone underneath.

Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.

Detail
Do not use the jack with people or luggage in the vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or may not fit the jacking point.

The following instructions must be followed to use the jack safely:
  • Do not use while the engine is running.
  • Use only where the ground is firm and level.
  • Use only at the jacking points.
  • Do not get in the vehicle while using the jack.
  • Do not put anything on top of or underneath the jack.

Replacing the Flat Tire

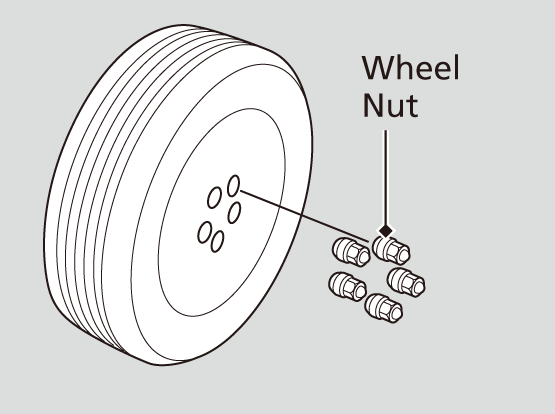

  1. Remove the wheel nuts and flat tire.

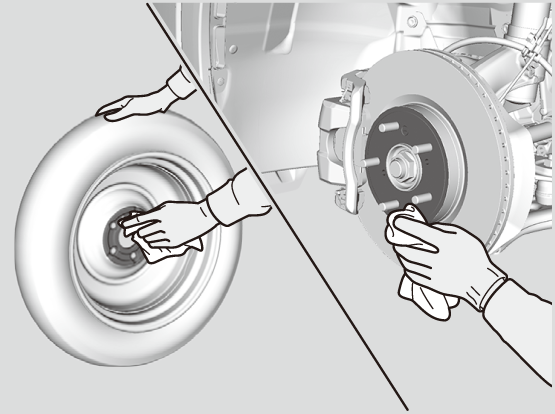

  1. Wipe the mounting surfaces of the wheel with a clean cloth.
  2. Mount the compact spare tire.
  3. Screw the wheel nuts until they touch the lips around the mounting holes, then stop rotating.

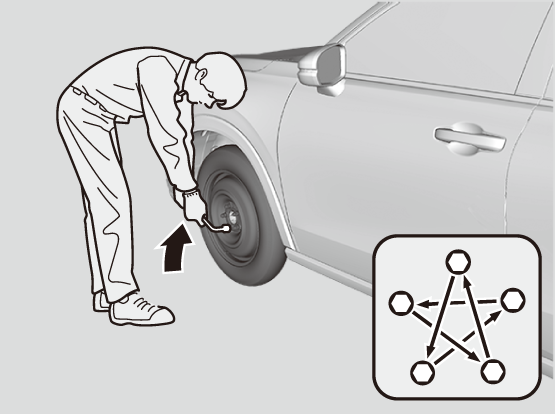

  1. Lower the vehicle and remove the jack. Tighten the wheel nuts in the order indicated in the image. Go around tightening the nuts two to three times in this order.
    Wheel nut torque:
    80 lbf∙ft (108 N∙m, 11 kgf∙m)
Detail
Do not over tighten the wheel nuts by applying extra torque using your foot or a pipe.

Storing the Flat Tire

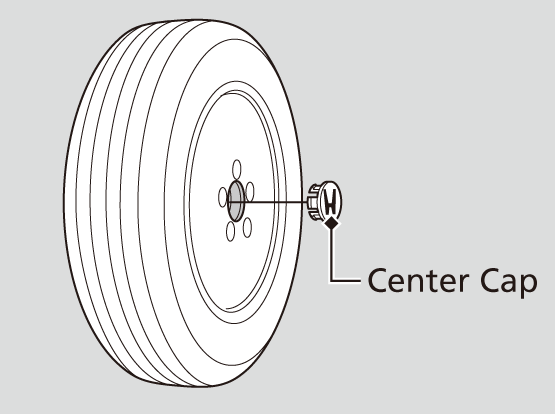

  1. Remove the center cap.
  1. Place the flat tire face down in the compact spare tire well.

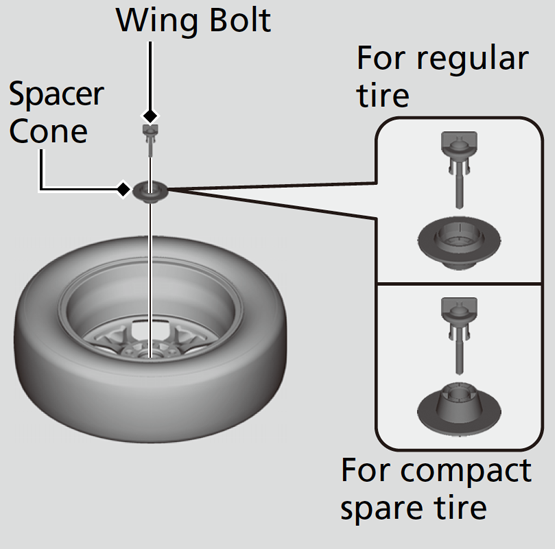

  2. Remove the spacer cone from the wing bolt, flip it over, and insert it back on the bolt. Secure the flat tire with the wing bolt.
  3. Securely store the wheel nut wrench, jack handle bar and jack back in the tool case. Store the case in the cargo area under the cargo floor lid.
WARNING

Loose items can fly around the interior in a crash and can seriously injure the occupants.
Store the wheel, jack, and tools securely before driving.

U.S. models

TPMS and the Compact Spare Tire

If you replace a flat tire with the compact spare tire, the low tire pressure/TPMS indicator comes on while you are driving. After driving for a few miles (kilometers), Tire pressure monitor system problem will appear on the driver information interface and the indicator will start blinking for a short time and then stay on; however, this is normal and is no cause for concern.

Calibrate the TPMS when you replace the tire with a specified regular tire.
