■ How to Refuel

  1. The fuel fill door is located at the left rear of the vehicle. Park next to the service pump that is most accessible.
  2. Turn off the engine.

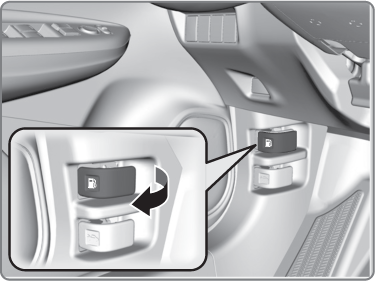

  3. Pull the fuel fill door release handle under the lower left corner of the dashboard. The fuel fill door opens.
  4. Turn the fuel fill cap slowly to open. Place the fuel fill cap in the holder.
  5. Insert the filler nozzle fully. When the tank is full, the fuel nozzle clicks off automatically.
  6. Replace the fuel fill cap. Tighten it until you hear at least one click. Close the fuel fill door.
Warning
Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
  • Stop the engine, and keep heat, sparks, and flame away.
  • Handle fuel only outdoors.
  • Wipe up spills immediately.

Parent topic: Refueling
