Setting Up the Jack

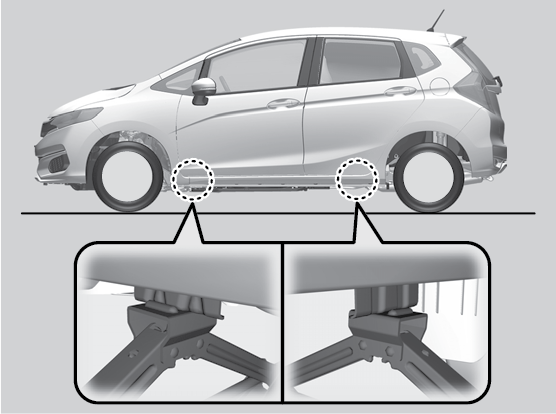

  1. Place the jack under the jacking point closest to the tire to be changed.

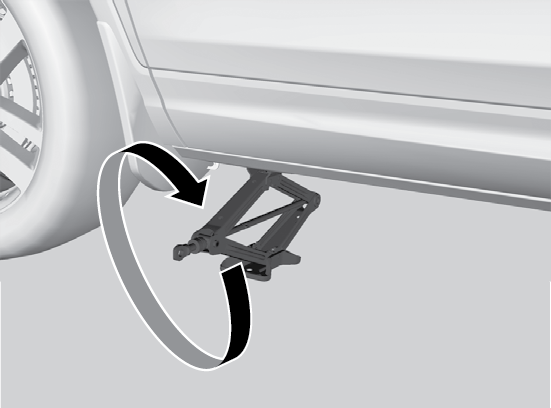

  2. Turn the end bracket clockwise (as shown in the image) until the top of the jack contacts the jacking point. Make sure that the jacking point tab is resting in the jack notch.

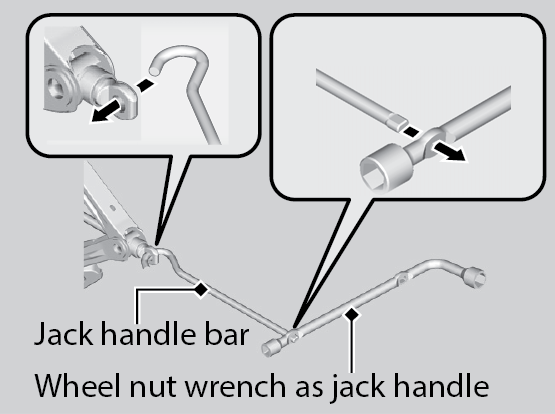

  3. Raise the vehicle, using the jack handle bar and the jack handle, until the tire is off the ground.
Warning

The vehicle can easily roll off the jack, seriously injuring anyone underneath.

Follow the directions for changing a tire exactly, and no person should place any portion of their body under a vehicle that is supported by a jack.

A
The jack shall be placed on a flat and stable surface on the same level as the vehicle is parked.

The following instructions must be followed to use the jack safely:
