Start Up

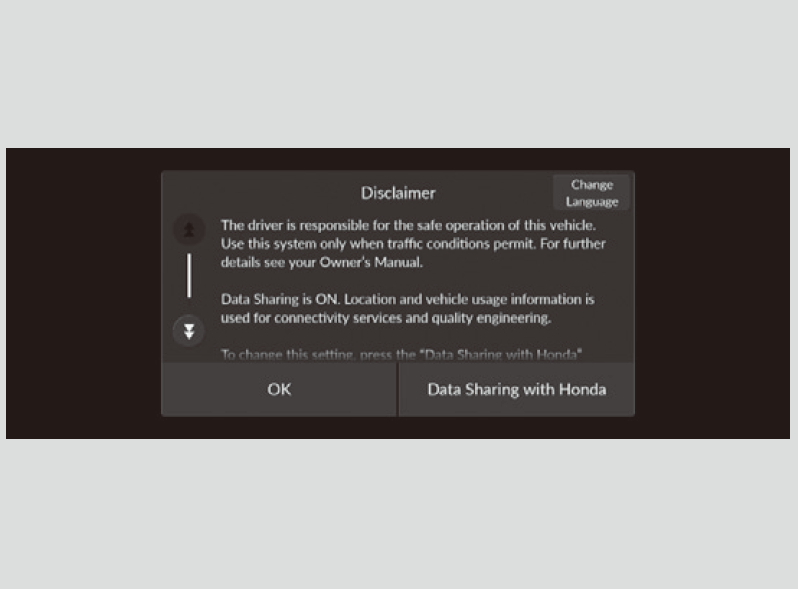

The 12.3 inch Color Touchscreen starts automatically when you set the power mode to ACCESSORY or ON. At start-up, the following screen about the data upload will be displayed. When adding a new user, entry of user information is required at start-up.

Select OK.

  • If you want to change the settings for data upload, select Data Sharing, then select the ON/OFF settings on the Data Sharing Setting screen.
  • If you do not select OK, the system will automatically be switched to the home screen, or the top screen of the last executed application, after a certain period of time.
  • If there is no registered device, select OK and the Bluetooth® pairing screen will be displayed.
  • If you check the box with Do not show this again, this screen will not be displayed.
Detail
Data Sharing Setting
ON: Data communication available.
OFF: Data communication unavailable.

Registering new user information

  1. Read the disclaimer screen and select OK.

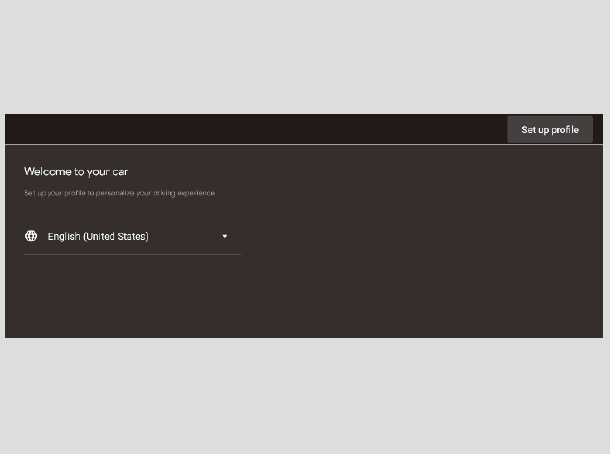

  2. Select Set up profile.
    • If you want to change the language, select English (United States).
  3. Name your profile and select Next.
Model with Google Built-In
  1. You can view the terms and conditions of the Google Services agreement.
All Models
  1. On the System-wide permission Settings screen, select the data you give permission for the system to access, and select Accept.
  2. Select Done for now.
    • By selecting Profile lock, you can set a PIN for your profile.
    • Model with Google Built-In
    • By selecting Set up Google Assistant and apps, you can customize settings related to Google.
      An internet connection is required to change settings.
Detail
Additional information for Google Apps and Services is available at mygarage.honda.com (US) or honda.ca (Canada).

Specifications may be changed via system updates, etc.
