Hill Descent Control System

When driving down hills where engine braking is not enough to decelerate the vehicle, this system helps maintain a constant vehicle speed without needing to depress the brake pedal.

WARNING

Hill descent control cannot maintain a constant vehicle speed in every situation.

When driving down a very steep hill or on slippery road surfaces, the vehicle may not be able to maintain the vehicle speed and could cause a crash, resulting in serious injury or death.

Since Hill Descent Control is not designed to increase the limits of vehicle performance, the driver must always be aware of road surface conditions and drive safely.

Operating Conditions

The system operates under the following conditions.

  1. Driving at a speed between about 2-12 mph (3-20 km/h).
  2. Driving downhill.
  3. Accelerator pedal and brake pedal are not depressed.
    1. The brake lights automatically come on while the system is in operation.
    2. The system may not operate when driving down a gentle slope.
    3. The system may activate even when not driving downhill, such as when the vehicle leans while driving over uneven surfaces.

How to Activate the System

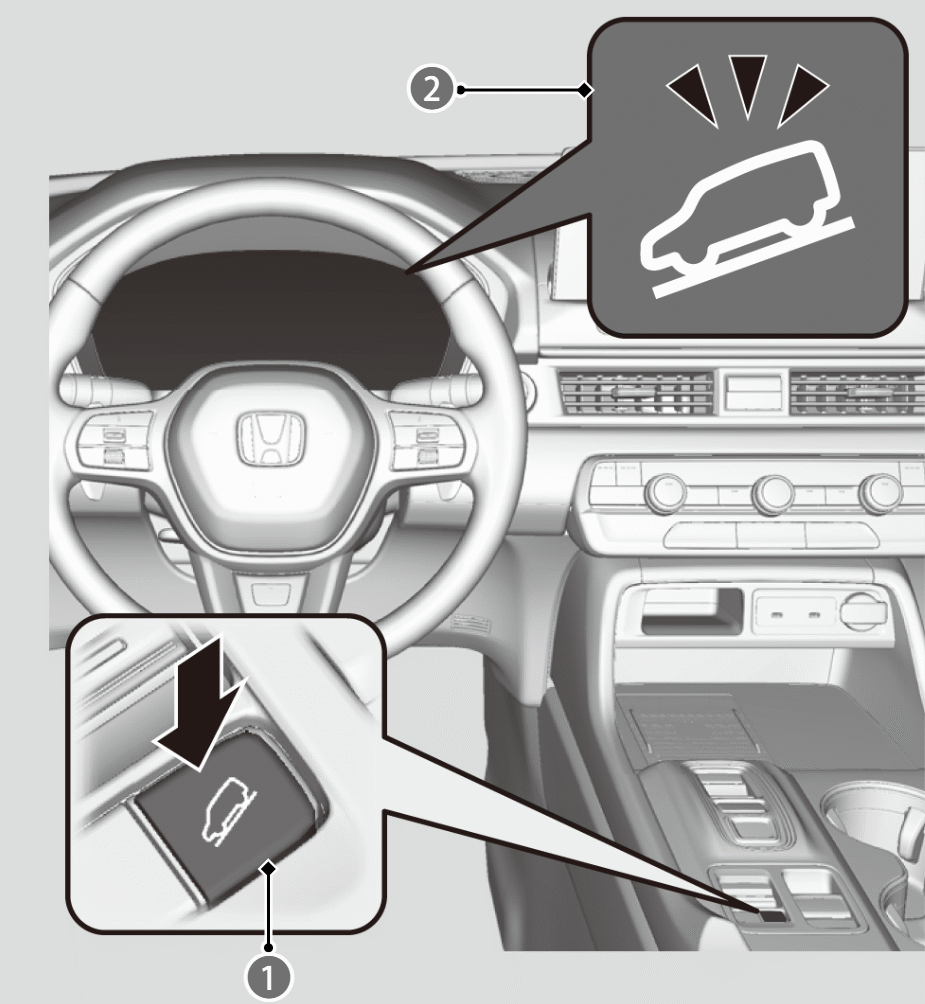

When the vehicle speed is less than about 12 mph (20 km/h), press thebutton () to turn the system on.

  1. The system goes into standby mode, and the Hill Descent Control System indicator (white) () comes on.

The system starts operating when the Hill Descent Control System indicator (green) comes on.

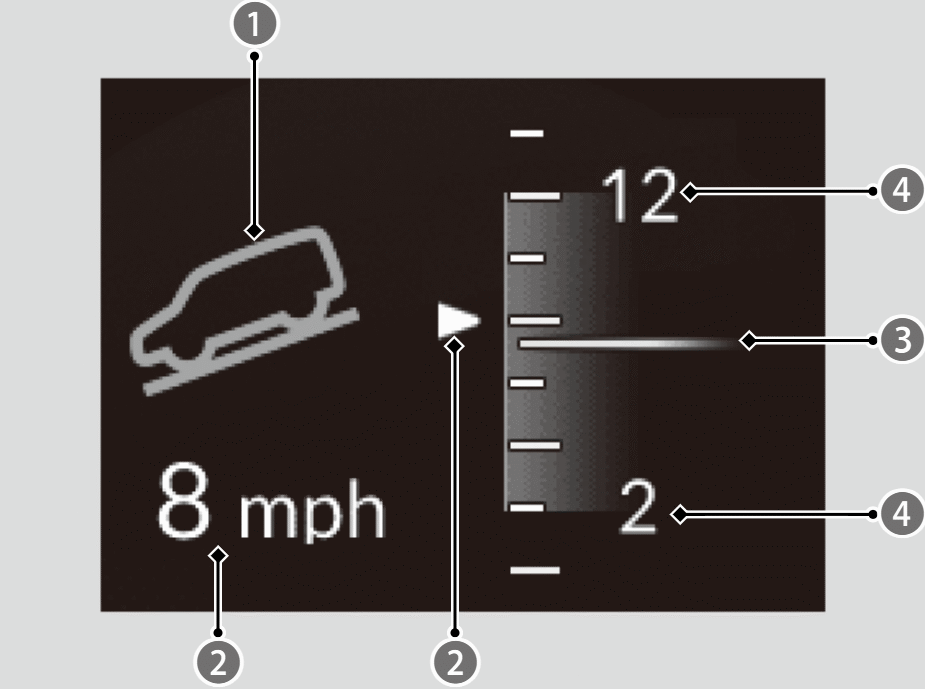

Driver Information Interface Display

  • The system’s operating status

    • Green: Activated
    • White: Standby

  • Vehicle speed display

    • White: Set speed
    • Gray: Current speed
      1. Blinks when the vehicle speed is above the operating speed.

  • Current speed

  • Operating range of set speed

  1. Using the system repeatedly for a long time may cause the brakes to heat up and make the system go into standby mode temporarily.
  2. The pedals may vibrate or you may hear the system working when in operation.
  3. The brake lights automatically come on while the system is in operation.

To Adjust the Set Speed

Depress the accelerator pedal or brake pedal to adjust the vehicle speed within the operating range. The vehicle speed at which you release the accelerator pedal or brake pedal will be the set speed.

To Cancel

Press thebutton to turn off the system.
