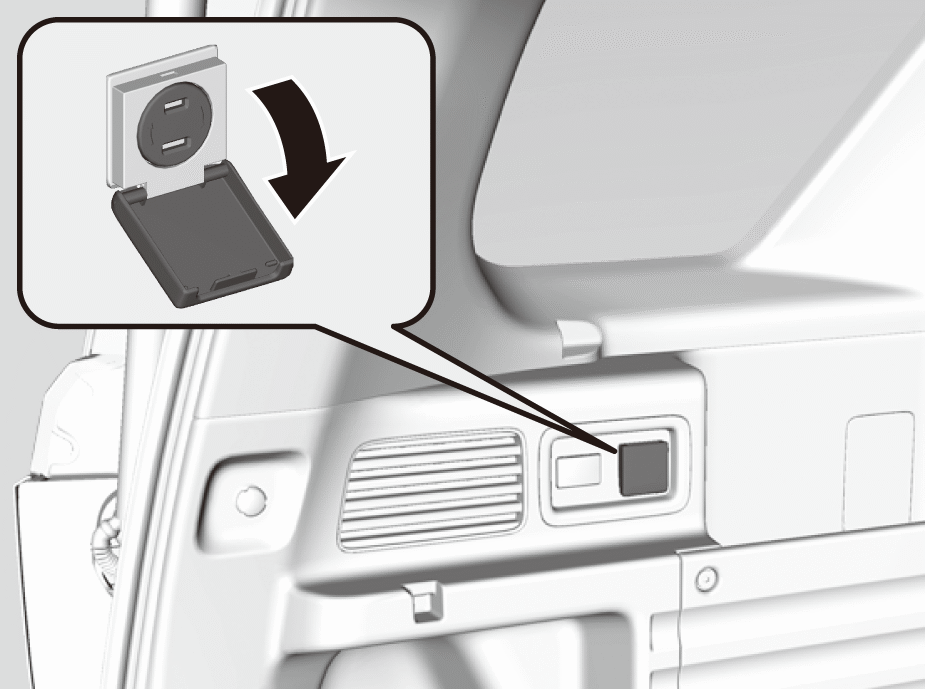

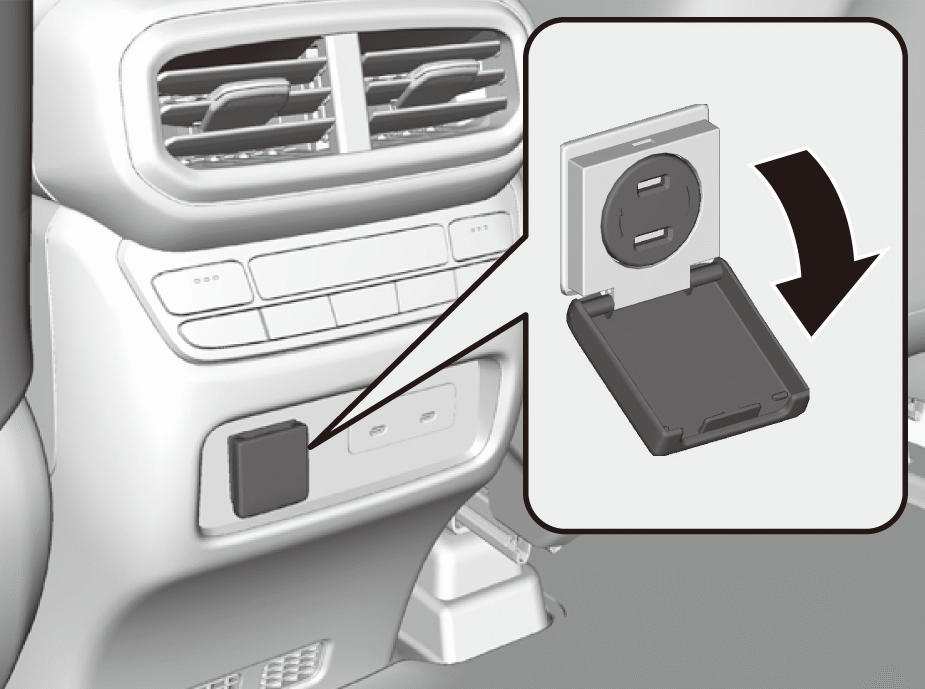

Open the cover to use it. Plug in the appliance slightly, turn it 90° clockwise, then push it all the way.

The AC power outlet can be used when the engine is running.

The AC power outlet is designed to supply power for up to 115 volt appliances that are rated 150 watts or less.





When the AC power outlet is not in use, close the cover to prevent any small foreign objects from getting into the AC power outlet.

Continued use of any electric appliance/device exceeding these ratings may result in damage to the appliance/device.

Do not use the AC power outlet for electric appliances that require high initial peak wattage, such as cathode-ray tube type televisions, refrigerators, electric pumps, etc. It is not suitable for devices that process precise data, such as medical equipment, and that require an extremely stable power supply, such as microcomputer-controlled electric blankets, touch sensor lamps, etc.

When both AC power outlets are being used, the combined power rating of the AC power outlets should not exceed 150 watts.
