Tire Labeling

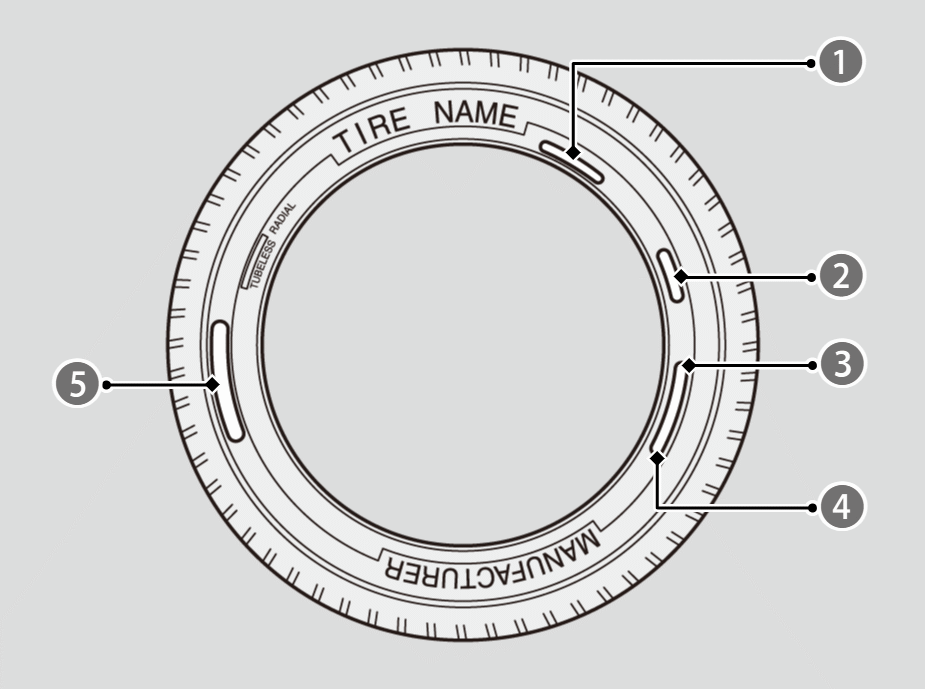

Example

  • Tire Size

  • Tire Identification Number (TIN)

  • Maximum Tire Load

  • Maximum Tire Pressure

  • Tire Size

The tires that came on your vehicle have a number of markings. Those you should be aware of are described as shown.

Tire Sizes

Whenever tires are replaced, they should be replaced with tires of the same size.

Following is an example of tire size with an explanation of what each component means.

P235/60 R18 102T

P: Vehicle type (P indicates passenger vehicle).

235: Tire width in millimeters.

60: Aspect ratio (the tire’s section height as a percentage of its width).

R: Tire construction code (R indicates radial).

18: Rim diameter in inches.

102: Load index (a numerical code associated with the maximum load the tire can carry).

T: Speed symbol (an alphabetical code indicating the maximum speed rating).

Tire Identification Number (TIN)

The tire identification number (TIN) is a group of numbers and letters that look like the examples in the side column. TIN is located on the sidewall of the tire.

There are two different formats that TIN may be listed in.



Format A

DOT B97R FW6X 2209

DOT: This indicates that the tire meets all requirements of the U.S. Department of Transportation.

B97R: Manufacturer’s identification mark.

FW6X: Tire type code.

2209: Date of manufacture (22: Week, 09: Year).



Format B

DOT 1A3 OFBEKP 1522

DOT: This indicates that the tire meets all requirements of the U.S. Department of Transportation.

1A3: PLANT CODE

OFBEKP: MANUFACTURE CODE

1522: DATE CODE (15: Week, 22: Year)

Glossary of Tire Terminology

Cold Tire Pressure– The tire air pressure when the vehicle has been parked for at least three hours or driven less than 1 mile (1.6 km).

Load Rating– Means the maximum load that a tire is rated to carry for a given inflation pressure.

Maximum Inflation Pressure– The maximum tire air pressure that the tire can hold.

Maximum Load Rating– Means the load rating for a tire at the maximum permissible inflation pressure for that tire.

Recommended Inflation Pressure– The cold tire inflation pressure recommended by the manufacturer.

Treadwear Indicators (TWI)– Means the projections within the principal grooves designed to give a visual indication of the degrees of wear of the tread.
