Replacing Light Bulbs

Rear Turn Signal Light Bulbs

When replacing, use 21W Amber (WY21W) bulbs.

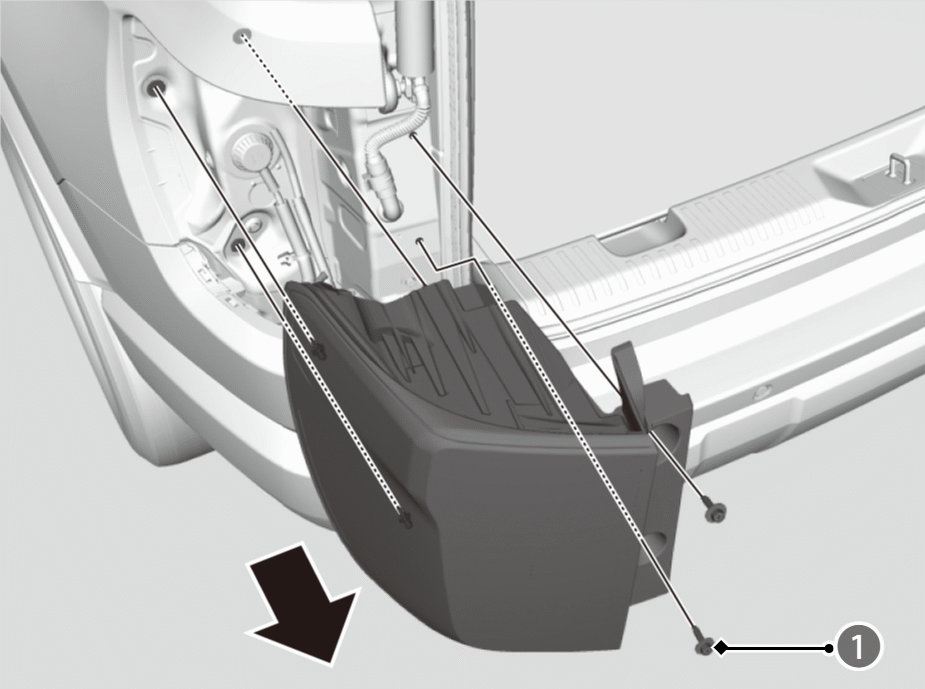

  • Bolt

  1. Remove the bolts.
  2. Pull the light assembly out of the rear pillar.

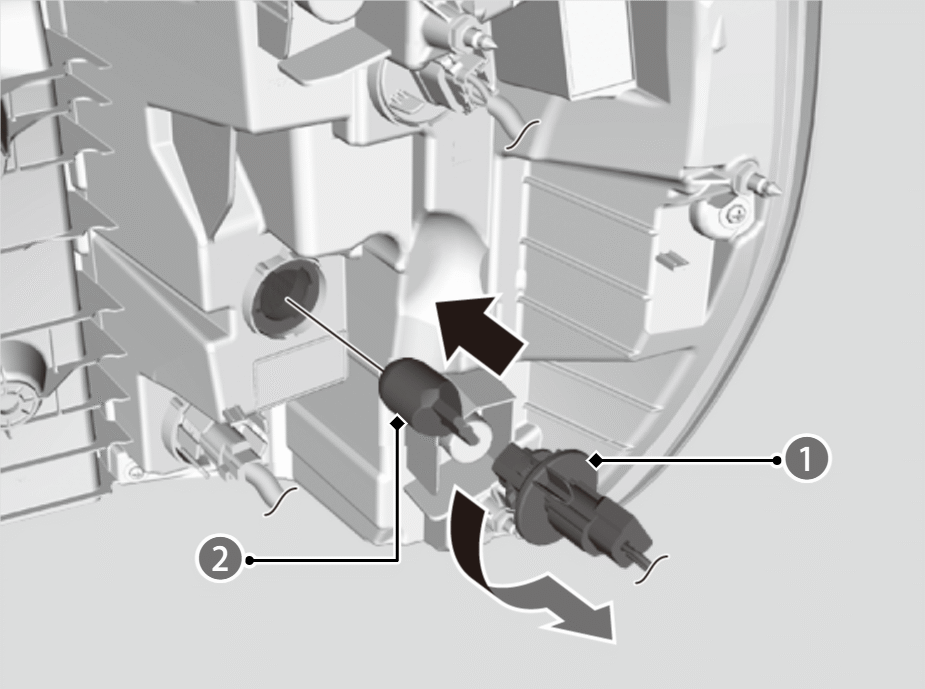

  • Socket

  • Bulb

  1. Turn the socket counterclockwise and remove it.
  2. Remove the old bulb and insert a new bulb.
  3. Align the pins with the body grommets, then push in until they fully seat.

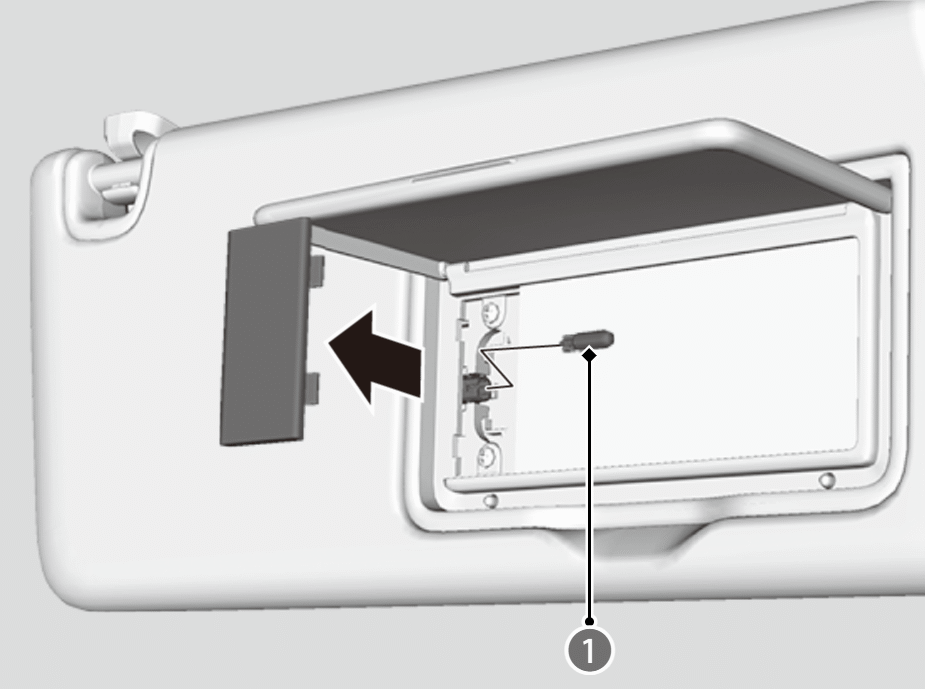

Vanity Mirror Light Bulbs

When replacing the light, please use a 2.3W bulb.

  1. Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.



  • Bulb

  1. Remove the old bulb and insert a new bulb.
  1. Wrap the flat-tip screwdriver with a cloth to prevent scratches.
