Checking Fuses
If any electrical devices are not working, set the power mode to VEHICLE OFF and check to see if any applicable fuse is blown.
Engine Compartment Fuse Box
Tab
Fuse Box
Located at the engine compartment on the left side.

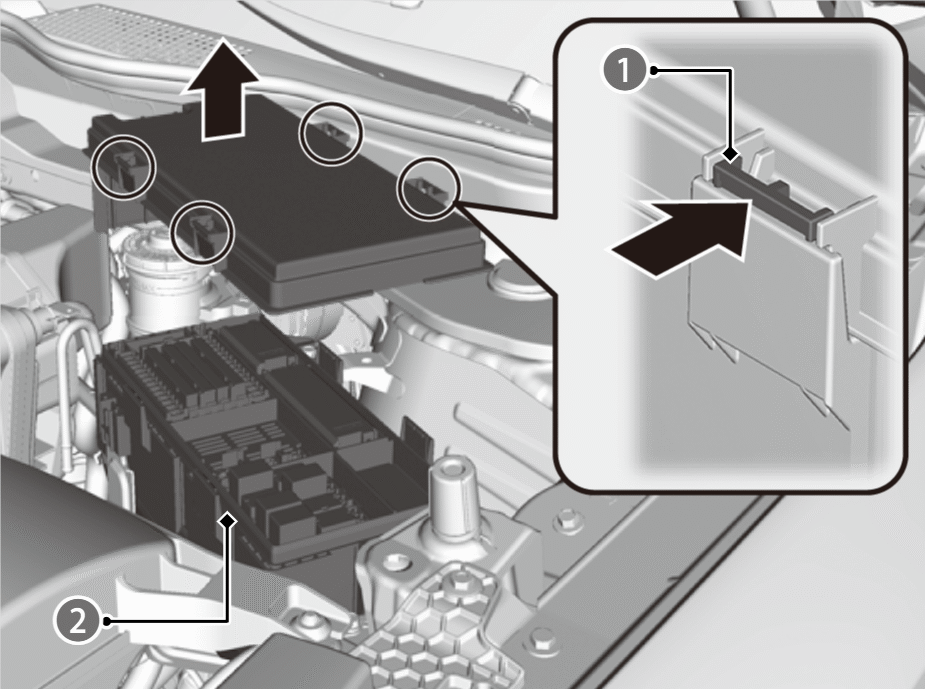

- Push the tabs () to open the box.

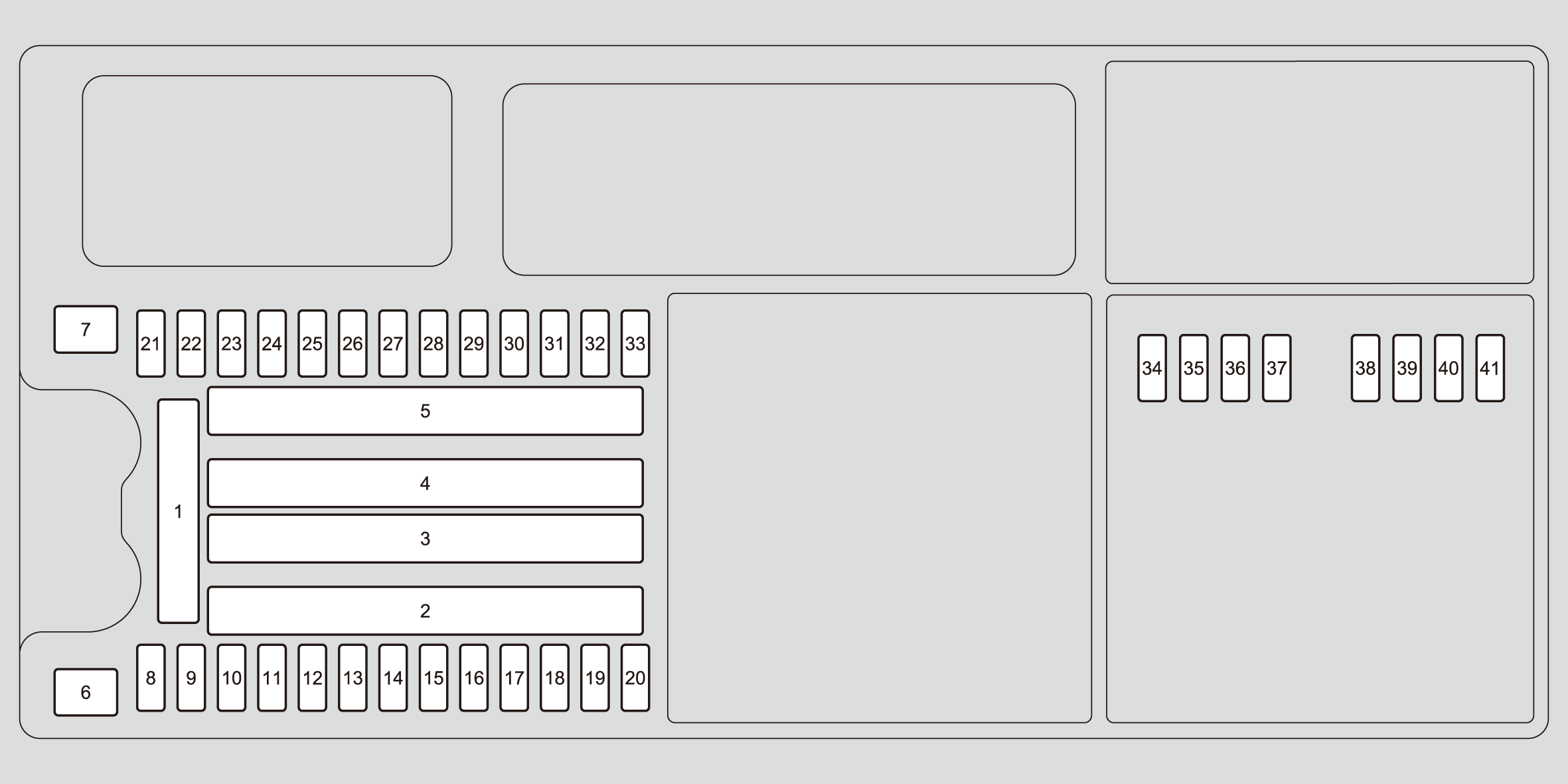

Fuse locations are shown on the fuse box cover, or the image below. Locate the fuse in question by the fuse number.
Circuit Protected and Fuse Rating
| Circuit Protected | Amps | ||
|---|---|---|---|
| 1 | － | BATTERY | 225A |
| 2 | － | IDLE STOP 1 | 30A |
| － | IDLE STOP 2 | 30A | |
| － | EPS | 80A | |
| － | FET MAIN 1 | 70A | |
| － | FUSE BOX MAIN 1 | 60A | |
| － | FUSE BOX OP 1 | 60A | |
| － | RR BLOWER | 30A | |
| 3 | － | ACM | 30A |
| － | STARTER CUT | 30A | |
| － | － | － | |
| － | RAD FAN 1 | 40A | |
| － | ACC SOCKET MAIN | 40A | |
| － | RR DEF | 40A | |
| － | FUSE BOX OP 2 | 60A | |
| 4 | － | EBB | 40A |
| － | PTG | 40A | |
| － | － | － | |
| － | HEATER MTR | 40A | |
| － | ABS/VSA FSR | 40A | |
| － | AC INVERT* | (30A) | |
| － | FUSE BOX MAIN 2 | 60A | |
| 5 | － | FET MAIN 2 | 30A |
| － | ABS/VSA MOTOR | 40A | |
| － | IG MAIN 2 | 30A | |
| － | SRM 2 | 30A | |
| － | SRM 1 | 30A | |
| － | 4WD | 30A | |
| － | IG MAIN 1 | 30A | |
| 6 | － | RAD FAN 2 | 40A |
| 7 | － | WIPER MOTOR | 30A |
| 8 | － | PTG | 20A |
| 9 | － | ICB SUB* | (20A) |
| 10 | － | RFC RELAY | 10A |
| 11 | － | BACK UP | 10A |
| 12 | － | Trailer Battery* | (20A) |
| 13 | － | Trailer Electric Brake* | (20A) |
| 14 | － | HORN | 15A |
| 15 | － | Trailer Backup Lamps* | (10A) |
| 16 | － | VBU | 10A |
| 17 | － | － | － |
| 18 | － | Trailer Parking Lamps* | (30A) |
| 19 | － | FI MAIN | 20A |
| 20 | － | INJ | 20A |
| 21 | － | TCU 1 | 15A |
| 22 | － | IG COIL | 15A |
| 23 | － | HAZARD | 10A |
| 24 | － | R H/L | 15A |
| 25 | － | STOP | 5A |
| 26 | － | L H/L | 15A |
| 27 | － | TCU 3 | 10A |
| 28 | － | TCU 2 | 10A |
| 29 | － | － | － |
| 30 | － | Trailer Stop/Turn Lamps* | (10A) |
| 31 | － | FR WASHER | 15A |
| 32 | － | BATT SNSR | 10A |
| 33 | － | SHUTTER GRILLE | 10A |
| 34 | － | IG1 START | 5A |
| 35 | － | BATT FAN | 5A |
| 36 | － | FI ECU | 5A |
| 37 | － | － | － |
| 38 | － | IG1 PCS | 5A |
| 39 | － | IGPS VSSV | 10A |
| 40 | － | － | － |
| 41 | － | － | － |

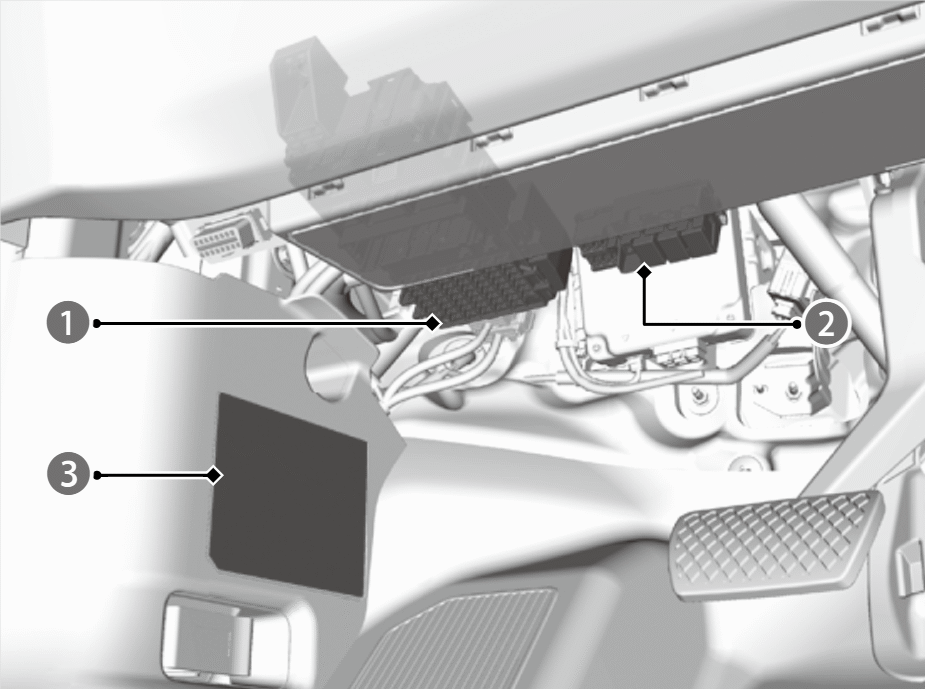

Driver’s Side Interior Fuse Box
Fuse Box
Sub Fuse Box
Label*
Located under the dashboard.

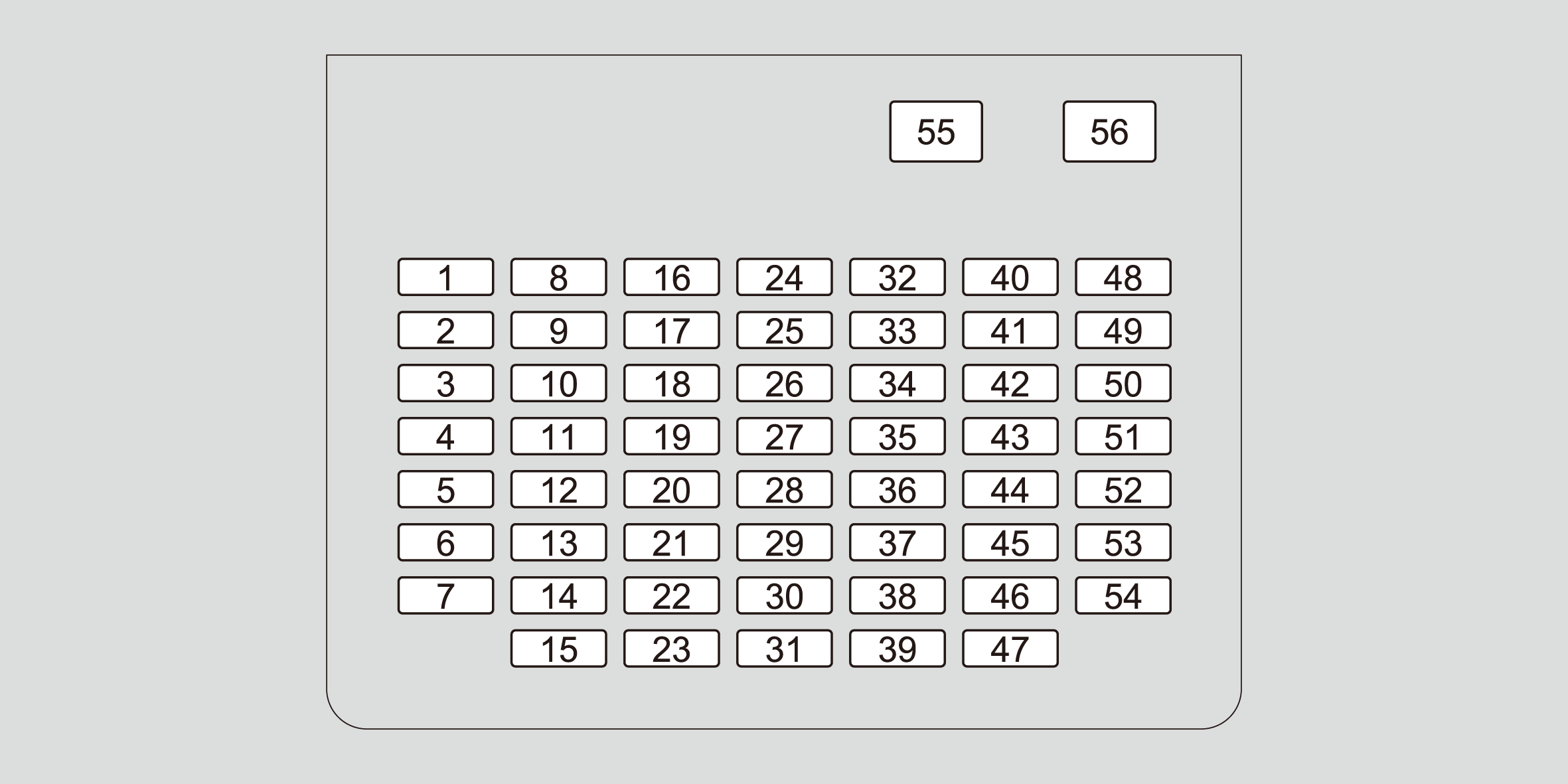

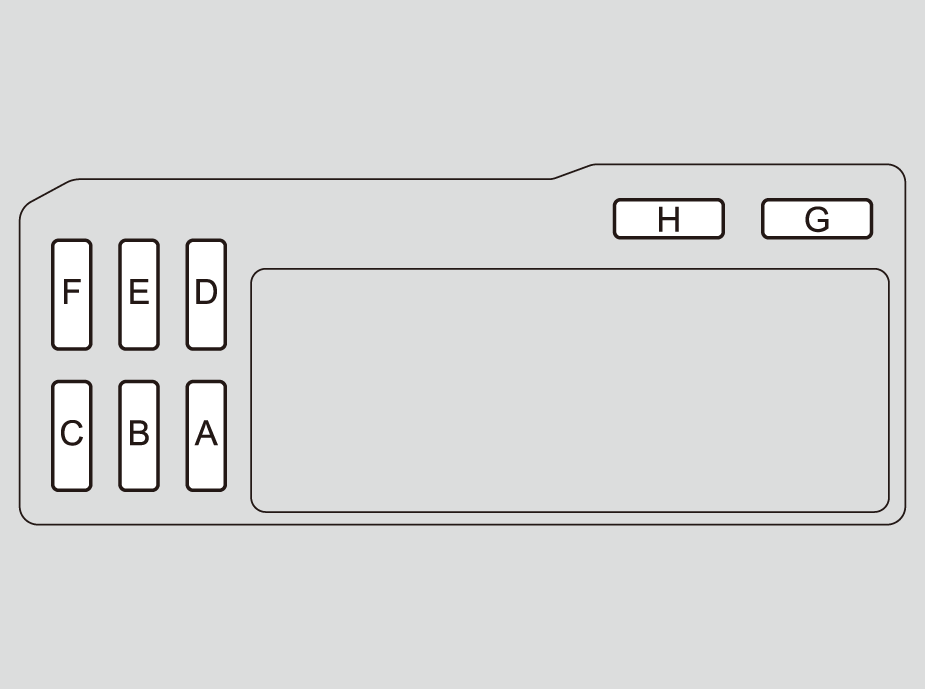

Fuse locations are shown on the label on the side panel, or the image below. Locate the fuse in question by the fuse number.
Circuit Protected and Fuse Rating
| Circuit Protected | Amps | ||
|---|---|---|---|
| 1 | － | DRIVER POWER WINDOW | 30A |
| 2 | － | PASSENGER POWER WINDOW | 30A |
| 3 | － | REAR R POWER WINDOW | 30A |
| 4 | － | REAR L POWER WINDOW | 30A |
| 5 | － | OPTION | 10A |
| 6 | － | SRS | 10A |
| 7 | － | － | － |
| 8 | － | － | － |
| 9 | － | REAR ACCESSORY* | (20A) |
| 10 | － | DOOR LOCK MAIN | 20A |
| 11 | － | METER | 10A |
| 12 | － | TRANSMISSION | 10A |
| 13 | － | REAR WIPER | 10A |
| 14 | － | － | － |
| 15 | － | DRIVER DOOR UNLOCK | 10A |
| 16 | － | SUNROOF* | (20A) |
| 17 | － | － | － |
| 18 | － | HAC ACCESSORY* | (20A) |
| 19 | － | ALL WHEEL DRIVE | 10A |
| 20 | － | DISPLAY | 10A |
| 21 | － | － | － |
| 22 | － | SMART ENTRY | 10A |
| 23 | － | DRIVER DOOR LOCK | 10A |
| 24 | － | － | － |
| 25 | － | SHIFTER | 10A |
| 26 | － | SRS | 10A |
| 27 | － | ACG | 15A |
| 28 | － | VSA/ABS | 10A |
| 29 | － | FUEL PUMP | 20A |
| 30 | － | LEFT DOOR UNLOCK | 10A |
| 31 | － | RIGHT DOOR UNLOCK | 10A |
| 32 | － | SUNSHADE* | (20A) |
| 33 | － | CGW | 10A |
| 34 | － | － | － |
| 35 | － | FRONT USB CHARGE | 10A |
| 36 | － | REAR USB CHARGE | 10A |
| 37 | － | － | － |
| 38 | － | － | － |
| 39 | － | RIGHT DOOR LOCK | 10A |
| 40 | － | DRIVER SEAT SLIDE | 20A |
| 41 | － | DRIVER SEAT RECLINE | 20A |
| 42 | － | STARTER | 10A |
| 43 | － | AIRCON | 10A |
| 44 | － | DRL | 10A |
| 45 | － | ACCESSORY | 10A |
| 46 | － | － | － |
| 47 | － | LEFT DOOR LOCK | 10A |
| 48 | － | － | － |
| 49 | － | PASSENGER SEAT SLIDE | 20A |
| 50 | － | DRIVER SEAT LUMBAR | 10A |
| 51 | － | － | － |
| 52 | － | － | － |
| 53 | － | PASSENGER SEAT RECLINE | 20A |
| 54 | － | － | － |
| 55 | － | AUDIO AMP* | (30A) |
| 56 | － | － | － |
| Circuit Protected | Amps | ||
|---|---|---|---|
| A | － | OPTION | 10A |
| B | － | ACCESSORY | 10A |
| C | － | AUDIO | 15A |
| D | － | MVC* | (10A) |
| E | － | AUDIO | 20A |
| F | － | － | － |
| G | － | METER | 15A |
| H | － | MICU | 10A |

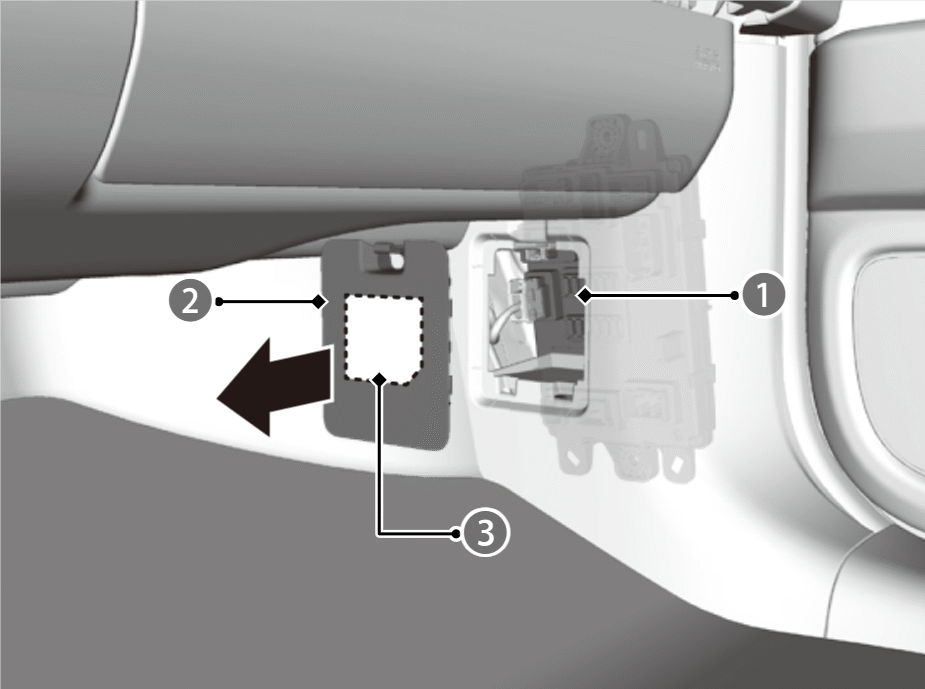

Passenger’s Side Interior Fuse Box
Fuse Box
Cover
Label*
Located on the lower side panel. Take off the cover to open.

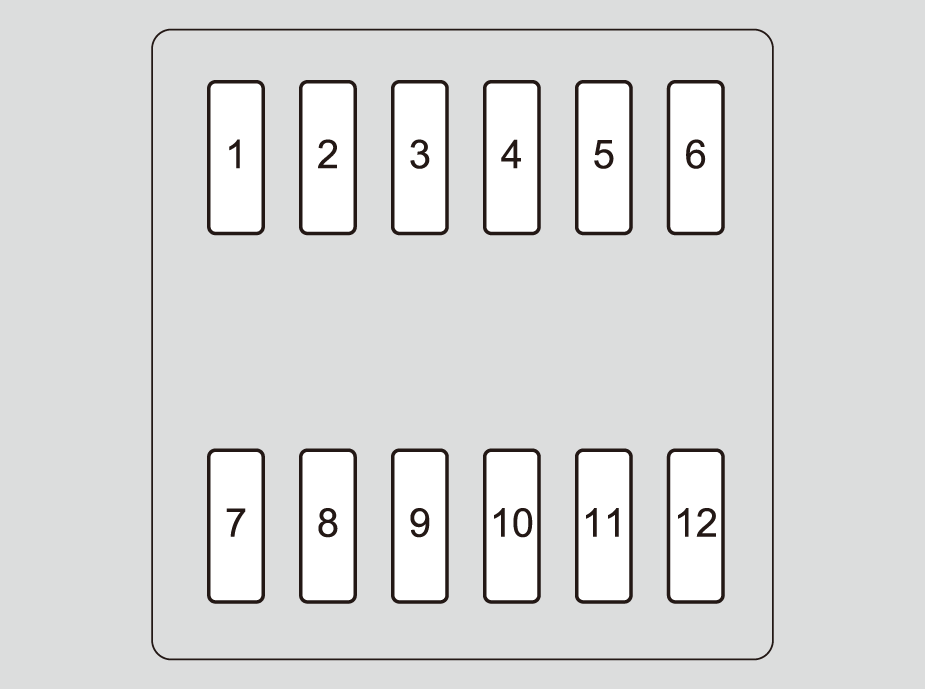

Fuse locations are shown on the fuse box cover, or the image below. Locate the fuse in question by the fuse number.
Circuit Protected and Fuse Rating
| Circuit Protected | Amps | ||
|---|---|---|---|
| 1 | − | − | − |
| 2 | − | A/C COMPRESSOR | 10A |
| 3 | − | HEATED STEERING WHEEL* | (10A) |
| 4 | − | FR DEICER* | (15A) |
| 5 | − | FRONT FOG LIGHTS* | (10A) |
| 6 | − | FI SUB | 15A |
| 7 | − | FRONT HEATED SEAT | 20A |
| 8 | − | − | − |
| 9 | − | − | − |
| 10 | − | REAR HEATED SEAT* | (20A) |
| 11 | − | − | − |
| 12 | − | FRONT ACC SOCKET | 20A |
*: Not available on all models
