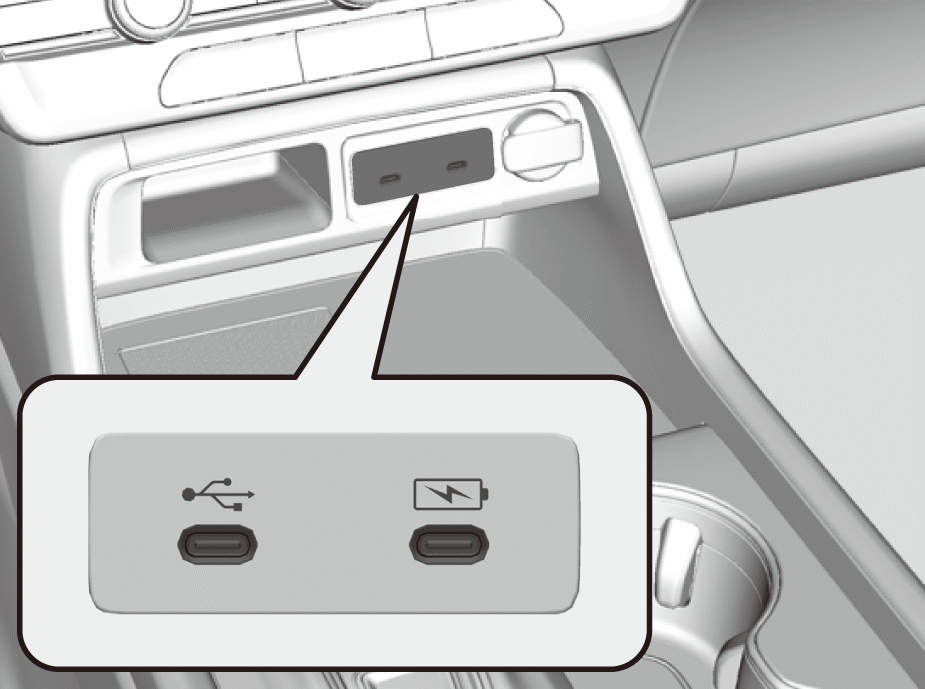

On the front panel

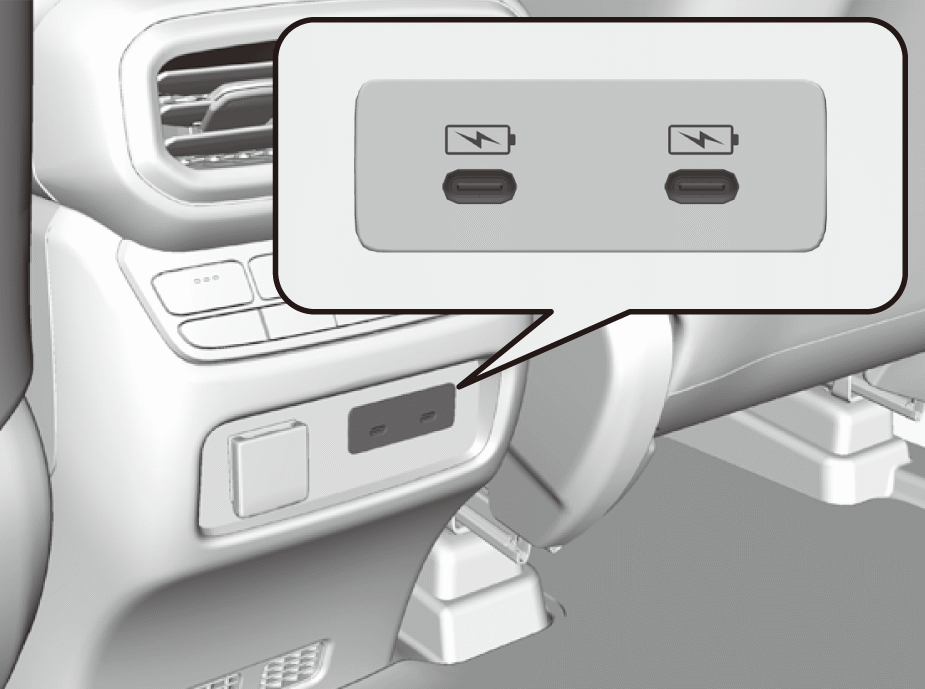

On the back of the console compartment

USB charging/connector port ()

The USB port is for charging devices, playing audio files, and connecting compatible phones with Apple CarPlay or Android Auto.

1. To prevent any potential issues, be sure to use an Apple MFi Certified Lightning Connector for Apple CarPlay. The USB cables should be certified by USB-IF to be compliant with USB 2.0 Standard.

USB charging port ()

The USB port is only for charging devices.

1. You cannot play audio files even if an audio device is connected.

1. We recommend backing up your data before using the device in your vehicle.
2. Messages displayed on the Audio System may vary depending on the device model and software version.
3. Some devices may not work even if they are connected to the USB ports.

Supplementary information about USB Charging:

1. The USB port supports USB Power Delivery.
2. USB standard output
   When using 1 port: 5V/3A(15W), 9V/3A(27W), 15V/3A(45W), 20V/3A(60W)
   When using both ports: 5V/3A(15W), 9V/3A(27W), 15V/3A(45W), 20V/2.25A(45W), Max 60W in total
   For amperage details, read the operating manual of the device that needs to be charged.
3. The USB port also supports PPS (Programmable Power Supply). PPS 5.0V-21V (Max 60W).
4. Charging may not start or may operate slowly depending on the connected devices and cables.
   Using only one port while not connecting anything (including cables) to the other port may solve the issue.
