Connecting a Device

With a connected device, you can use Apple Carplay or Android Auto to listen to audio files.

  1. Depending on the app used, smartphone battery may decrease even with a wired connection.

Always make sure your vehicle is parked in a safe location before connecting a device.

About Wired Connections

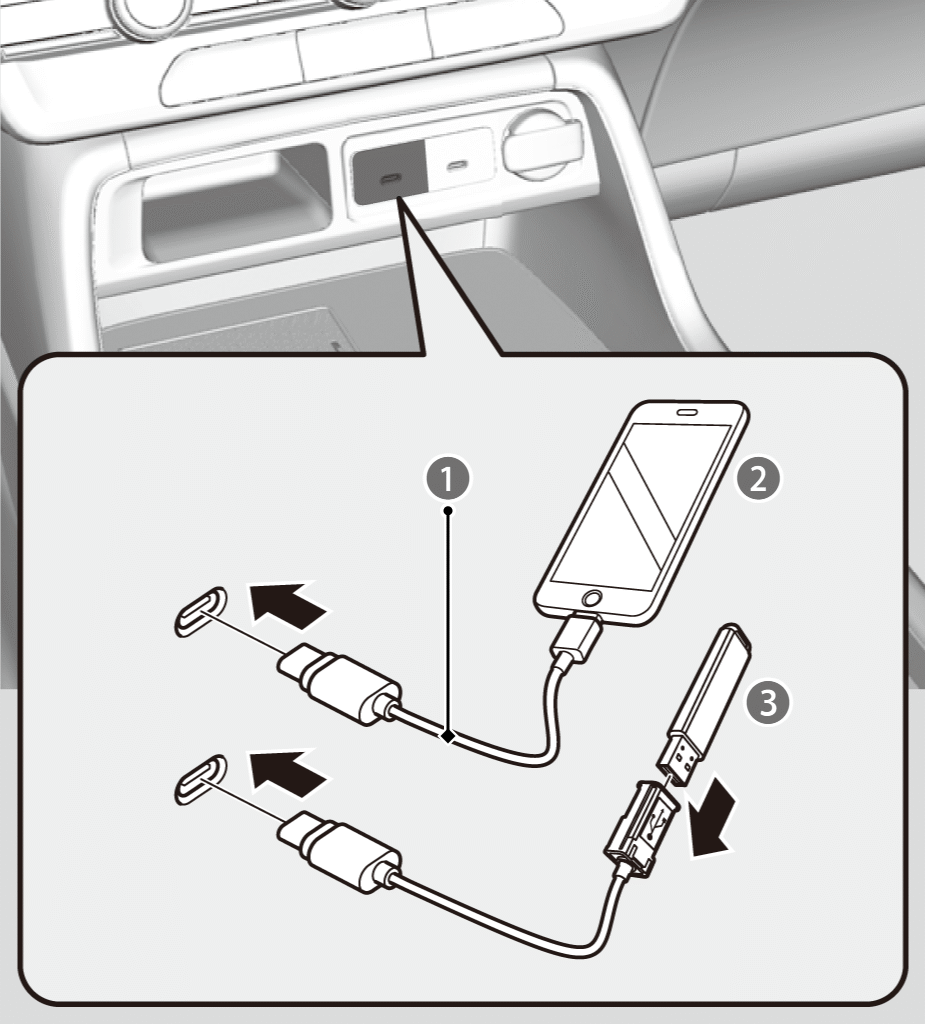

Connect a smartphone or USB flash drive to the USB charging/connector port ().

  1. You may need to operate the smartphone.

  • USB Cable

  • Device

  • USB Flash Drive



About Wireless Connections

You can modify Bluetooth® function settings.

Once you have paired a phone, you can see it displayed on the screen with one or more icons on the right side. These icons indicate the following:

: The phone is compatible with HFL and Bluetooth® Audio.

: The phone is compatible with Apple CarPlay.

: The phone is compatible with Android Auto.

Phone Pairing Tips:

  1. Up to six phones can be paired.
  2. Your phone’s battery may drain faster when it is paired to the system.

Bluetooth® setup

You can turn Bluetooth® function on and off.

  1. Select(Home) icon.
  2. Select General Settings.
  3. Select Connections.
  4. Select Manage Device Connections.
  5. Select Options.
  6. Select Bluetooth, then select On.
  7. Select Yes.

To pair a cell phone (when there is no phone paired to the system)

  1. Select(Home) icon.
  2. Select General Settings.
  3. Select Connections.
  4. Select Manage Device Connections.
  5. Select + Connect New Device.
  6. Make sure your phone is in search or discoverable mode.
  7. Select Vehicle Name from your phone.
    1. If you want to pair a phone from this audio system, select Search for Devices, and then select your phone when it appears on the list.
  8. The system gives you a pairing code on the audio/information screen. This may vary by phone.
    1. Confirm if the pairing code on the screen and your phone matches.
    2. If the audio system has not sent the pairing code to your phone, the pairing code authentication screen will be displayed. Check the pairing code and select Pair.
  9. Select Yes if you want to set this phone as the preferred connection.

To change the currently paired phone

  1. Select the(Home) icon.
  2. Select General Settings.
  3. Select Connections.
  4. Select Manage Device Connections.
  5. Select a phone to connect.
    1. HFL disconnects the connected phone and starts searching for another paired phone.
    2. You can set the connected phone priority. Check the box on the phone you want to prioritize.
  6. Select Bluetooth, Apple CarPlay, or Android Auto.
  7. Select Yes.
  1. To pair other phones, select + Connect New Device from the Bluetooth® screen.

To delete a paired phone

  1. Select(Home) icon.
  2. Select General Settings.
  3. Select Connections.
  4. Select Manage Device Connections.
  5. Select a phone you want to delete.
  6. Select Delete Device.
  7. A confirmation message appears on the screen. Select Delete.
