Adjusting the Rear Outer and Center Seat Positions

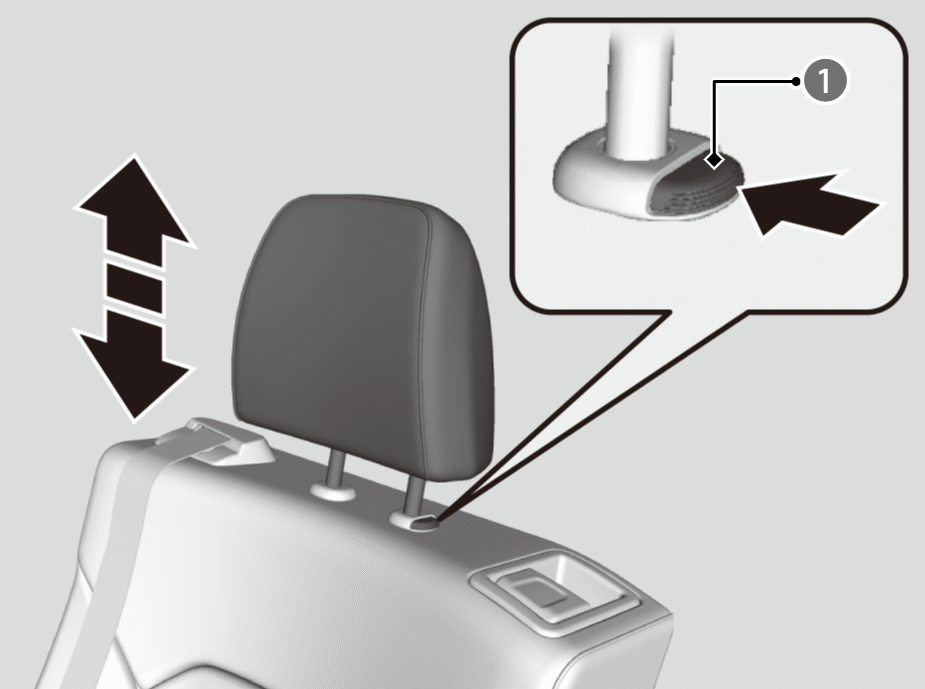

Release Button
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release button.
To remove a head restraint:
Pull the restraint up as far as it will go. Then, push the release button and pull the restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height while pressing the release button.
- Pull up on the restraint to make sure it is locked in position.
Release Button
A passenger sitting in the rear seat should adjust the height of their head restraint to an appropriate position before the vehicle begins moving.

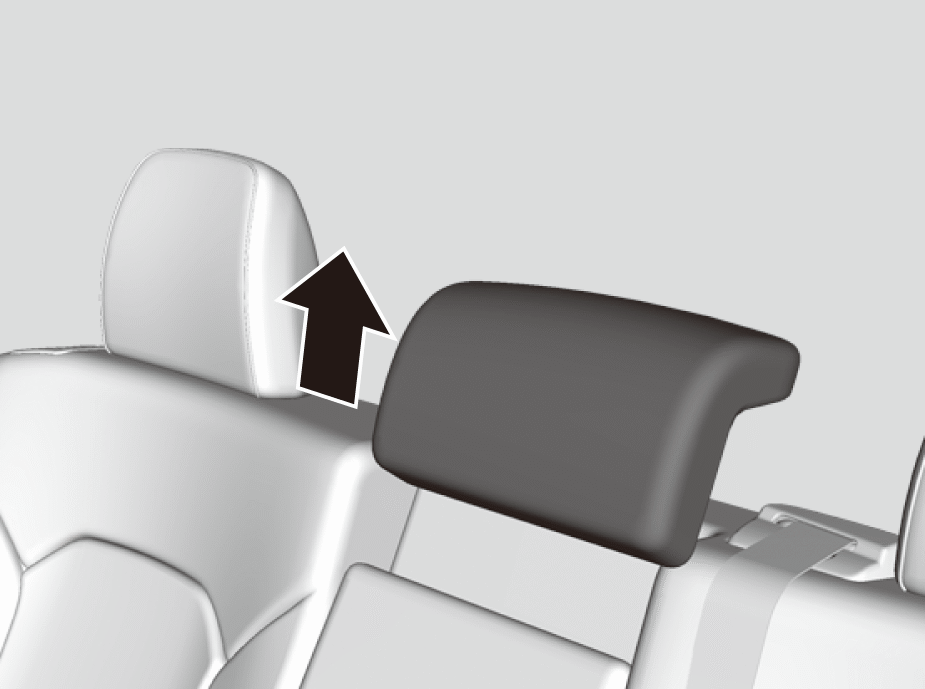

To raise the head restraint:
Pull it upward.

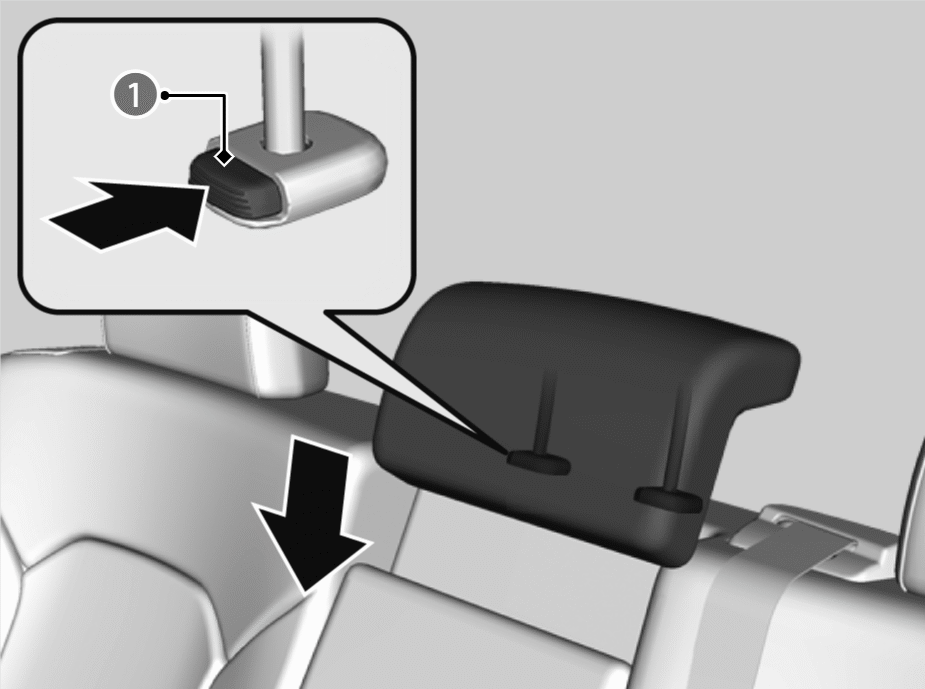

To lower the head restraint:
Push it down while pressing the left release button.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release buttons which are located on both legs at the same time, and pull the restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height while pressing the left release button.
- Pull up on the restraint to make sure it is locked in position.

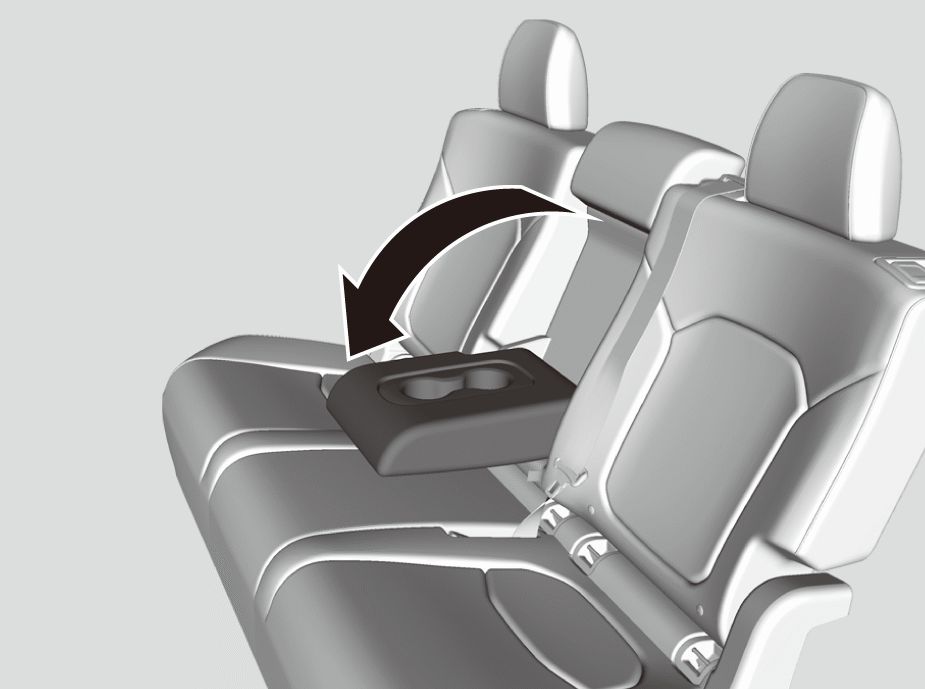

Using the rear seat armrest
Pull down the armrest in the center backrest.

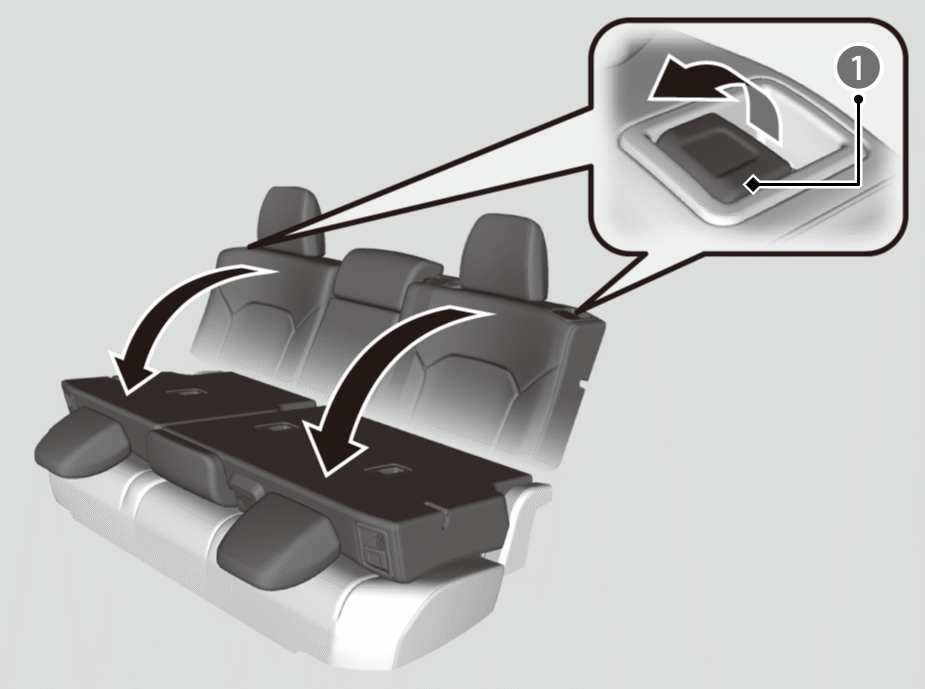

Folding down the rear seats
The rear seats can be folded down separately to allow for additional storage space.
Release Lever
- Lower the rear seat head restraint to its lowest position.
- Put the armrest back into the seat-back.
- Pull the release lever and fold down the seat.
The rear seat-back(s) can be folded down to accommodate bulkier items in the cargo area.
Make sure that the folded seat-back does not press against the front passenger seat, as this can cause the weight sensors in the front passenger seat to work improperly.
Passenger Airbag Off Indicator
The front seat(s) must be far enough forward so they do not interfere with the rear seats as they fold down.
Make sure the seat-back, head restraints and seat cushion are securely latched back into place before driving. Also, make sure all rear shoulder belts are positioned in front of the seat-back.
To lock a seat-back upright, push it backwards until it locks, so that the red tabs in the release lever go down.
When returning the seat-back to its original position, push it firmly back.
