Side Airbags
The side airbags help protect the torso and pelvis of the driver or a front passenger during a moderate-to-severe side impact.




Housing Locations

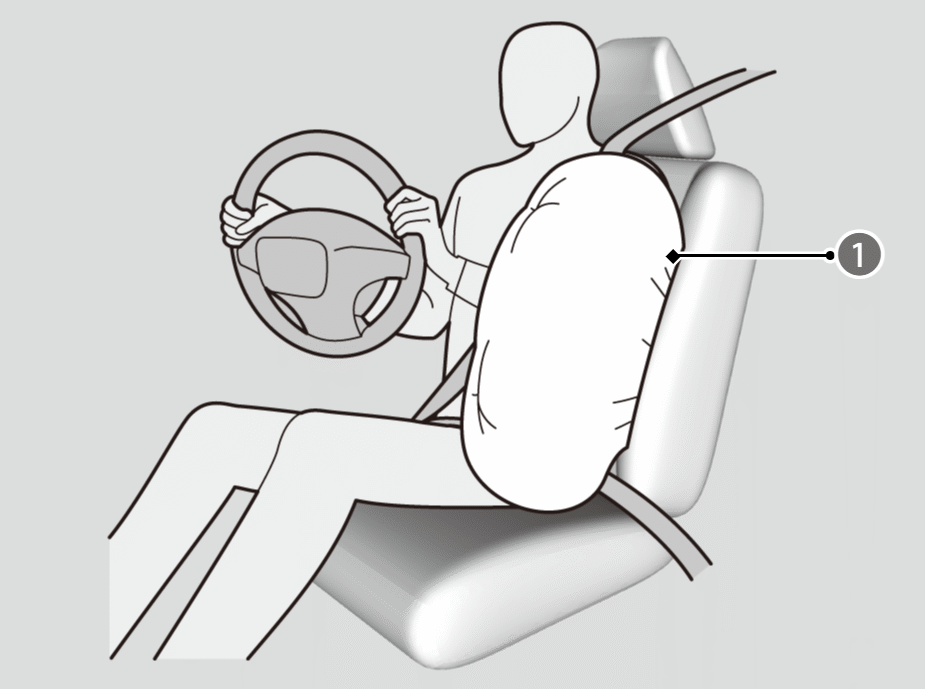

The side airbags are housed in the outside edge of the driver’s and passenger’s seat-backs.
Both are marked SIDE AIRBAG.
Operation


Side Airbag
When the sensors detect a moderate-to-severe side impact, the control unit signals the side airbag on the impact side to immediately inflate.
When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side of the vehicle’s framework can cause a side airbag to deploy. In such cases, there may be little or no damage, but the side impact sensors detected a severe enough impact to deploy the airbag.
When a side airbag may not deploy, even though visible damage appears severe
It is possible for a side airbag not to deploy during an impact that results in apparently severe damage. This can occur when the point of impact was toward the far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed most of the crash energy. In either case, the side airbag would not have been needed nor provided protection even if it had deployed.
