Wireless Charger

About Wireless Charger

To use the wireless charger, the power mode must be in ACCESSORY or ON.

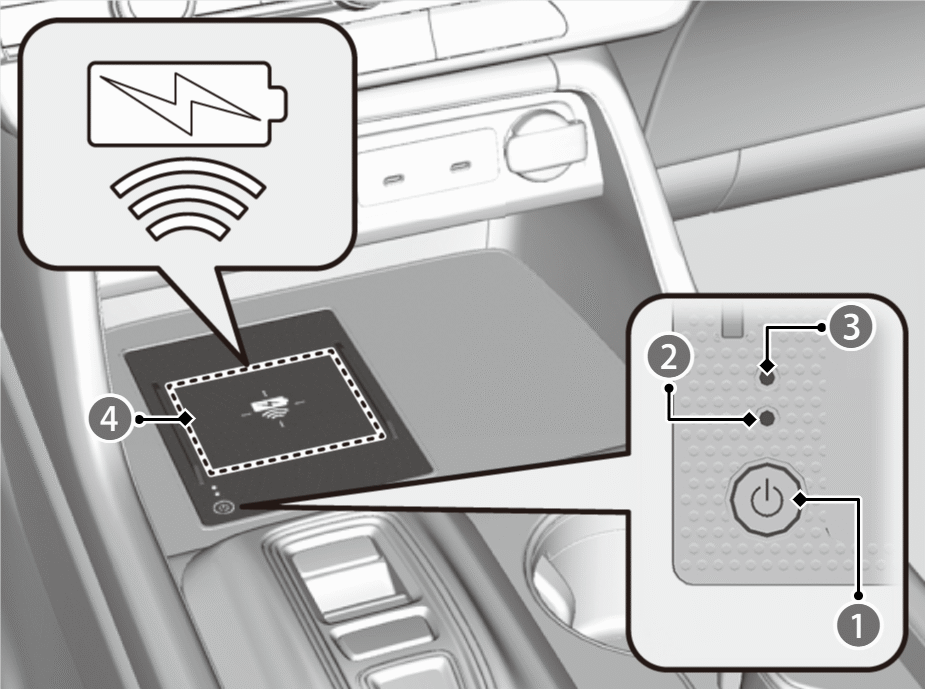

Charge any devices compatible with Qi wireless charging on the area indicated by themark as follows:

  • (Power) Button

  • Green Indicator

  • Amber Indicator

  • Charging Area

  1. To turn the system on and off, press and hold the(power) button.
    1. When the system is activated, the green indicator light comes on.
  2. Place the device you want to charge on the charging area.
    1. The system will automatically start charging the device, and the amber indicator light will come on.
    2. Make sure that the device is compatible with the system, and placed with the chargeable side in the center of the charging area.
  3. When charging is completed, the green indicator light will come on.
    1. Depending on the device, the amber indicator light will stay on.

“Qi” andmarks are the registered trademarks owned by Wireless Power Consortium (WPC).

  1. The wireless charger can support up to 15 W, but the charging rate varies based on the device and other conditions.
  2. appears on the audio/information screen when the device is being charged by the wireless charger.
  3. During the charging phase, it is normal for the charging area and the device to heat up.

Charging may be briefly interrupted when:

• All doors and the tailgate are closed to avoid interference with the proper functioning of the keyless access system.

In the following cases, charging may stop or not start:

• The device is already fully charged.

• The temperature of the device is extremely high while charging.

• You are at a place that emits strong electromagnetic waves or noises, such as a TV station, electric power plant, or gas station.

• The device has a cover, case, or accessories which are not compatible with wireless charging.

CAUTION

Metal objects between the charge pad and the device to be charged will get hot and can burn you.

  1. Always remove foreign objects from the charge pad before charging the device.
  2. Be sure the surface is clear of dust and other debris before charging.
  3. Do not spill liquids (e.g., water, drinks, etc.) on the charger and the device.
  4. Do not use oil, grease, alcohol, benzine, or thinner for cleaning the charge pad.
  5. Do not cover the system with towels, clothing, or other objects while charging.
  6. Avoid spraying aerosols which may come in contact with the charge pad surface.

This system consumes a lot of power. Do not use the system for a long period of time when the engine is not running. This may weaken the 12-volt battery, making it difficult to start the engine.

When using the wireless charger, check the user’s manual that came with the compatible device you want to charge.

Do not place any magnetic recording media or precision machines within the charge area while charging. The data on your cards such as credit cards can be lost because of the magnetic effect. Also, precision machines such as watches can be affected.

Do not charge more than one device at a time on a charging area.

Indicator is Blinking

Perform one of the following solutions:

When the Indicators (Green & Amber) Blink simultaneously

  1. Remove the obstacle(s).
  2. Pick up and reset the device to the center of the charging area whereis located.
  3. Temporarily suspend charging the device. Wait for the temperature to drop and attempt to charge the device again.

When Indicator (Amber) is Blinking

  1. Contact a dealer for repairs.

RF Radiation Exposure Statement:

U.S. models

This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment.

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Canadian models

This equipment complies with ISED RF Radiation exposure limits set forth for an uncontrolled environment.

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
