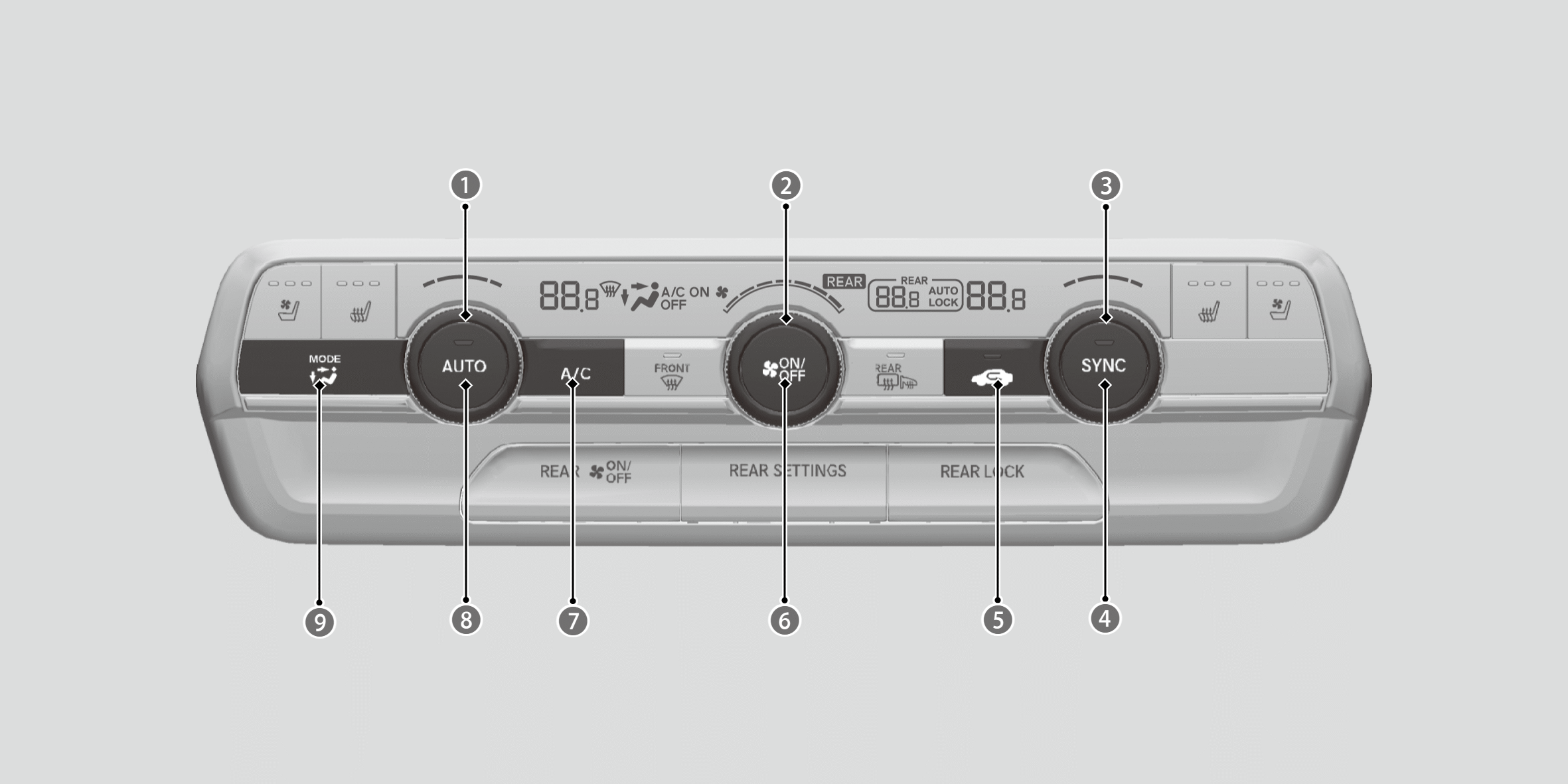

Driver’s Side Temperature Control Dial

Adjusts the interior temperature.

Fan Control Dial

Adjusts the fan speed.

Passenger’s Side Temperature Control Dial

Adjusts the interior temperature.

SYNC (Synchronization) Button

(Recirculation) Button

Switch Recirculation mode/Fresh air mode.

• Recirculation (indicator light on):

Recirculates air from the vehicle’s interior through the system.

• Fresh air (indicator light off):

Maintains outside ventilation. Keep the system in fresh air mode in normal situations.

(ON/OFF) Button

Switch ON/OFF of the climate control system.

A/C (Air Conditioning) Button

Switch ON/OFF of cooling/dehumidification function.

AUTO Button

Switch to automatic control.

MODE Control Button

• Dashboard vents and back of the console compartment
• Dashboard and floor vents, and back of the console compartment
• Floor vents
• Floor and windshield defroster vents
