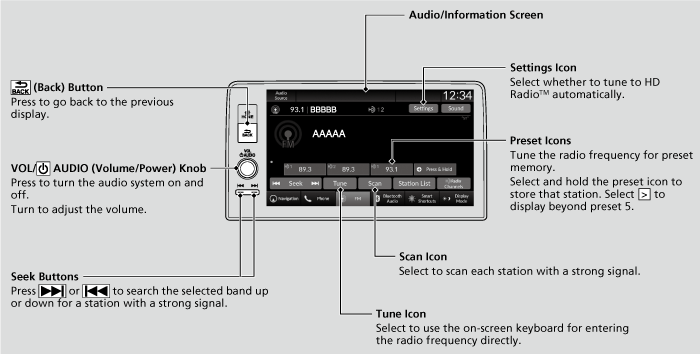

Playing AM/FM Radio

Preset Memory

To store a station:

  1. Tune to the selected station.
  2. Select and hold the preset icon to store that station.
    • Selecting Press & Hold can be set a new preset station.
Detail
The ST indicator appears on the display indicating stereo FM broadcasts.
Stereo reproduction in AM is not available.

Switching the Audio Mode
Roll the left selector wheel or select Audio Source on the screen.

You can store 12 AM/FM stations into preset memory.

HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http://dts.com/patents. HD Radio, Artist Experience, and the HD, HD Radio, and “ARC” logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.

Station List

Lists the strongest stations on the selected band.

  1. Select Station List to display a list.
  2. Select the station.

Manual update

Updates your available station list at any time.

  1. Select Station List to display a list.
  2. Select Refresh.

Scan

Samples each of the strongest stations on the selected band for 10 seconds. To turn off scan, select Stop or press the button.

HD Subchannel

Displays the subchannel list when an HD RadioTM station is selected while listening to an FM station.

  1. Select HD Radio Channels.
  2. Select the channel number.

Radio Data System (RDS)

Provides text data information related to your selected RDS-capable FM station.

To find an RDS station from Station List

  1. Select Station List to display a list while listening to an FM station.
  2. Select the station.

Manual update

Updates your available station list at any time.

  1. Select Station List to display a list while listening to an FM station.
  2. Select Refresh.
Detail
When you select an RDS-capable FM station, the RDS automatically turns on, and the frequency display changes to the station name. However, when the signals of that station become weak, the display changes from the station name to the frequency.

AM/FM Settings

Change the AM/FM settings.

  1. Select Settings.
  2. Select an option.
  • HD Radio: Automatically choose a digital or an analog channel, or listen to analog only.
  • Artwork: Turns the artwork display on and off.
