Changing the Rear Wiper Blade Rubber

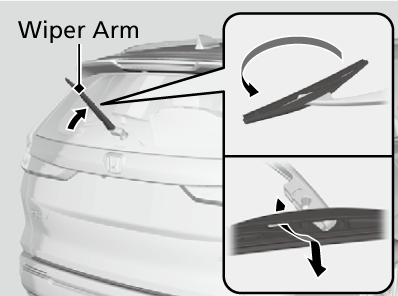

  1. Raise the wiper arm off.
  2. Pivot the bottom end of the wiper blade up until it comes off from the wiper arm.

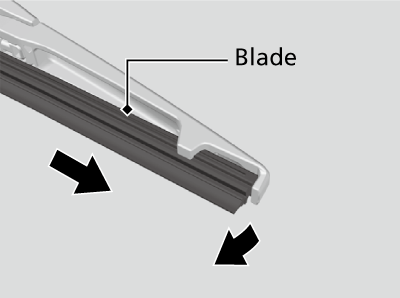

  1. Slide the blade out of the wiper.

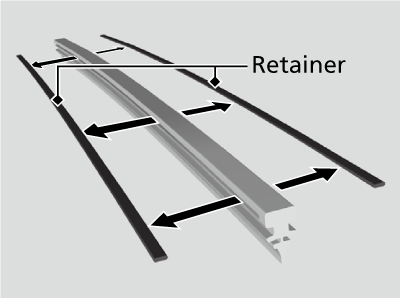

  1. Remove the retainers from wiper blade and mount to a new rubber blade.

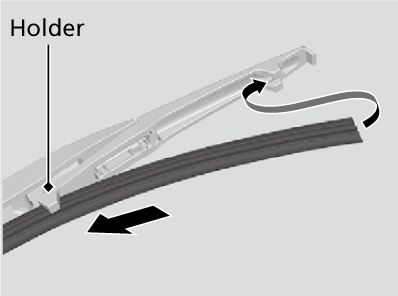

  1. Slide the new wiper blade onto the holder.
    • Make sure it is engaged correctly, then install the wiper blade assembly onto the wiper arm.
Detail

NOTICE
Avoid dropping the wiper arm, as it may damage the rear window.
