Power Flow

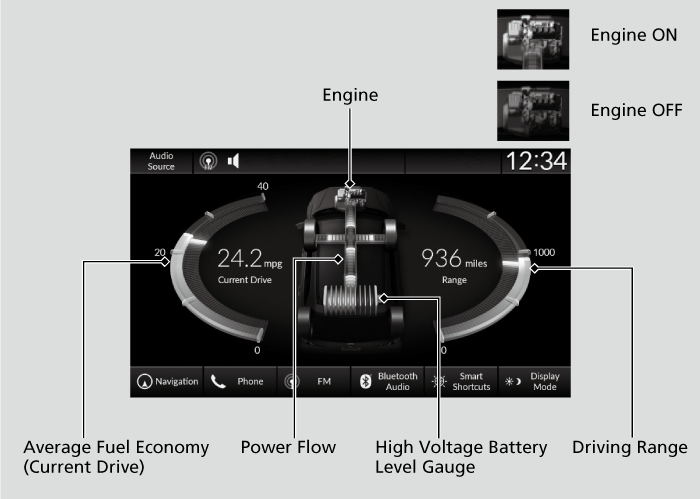

The power flow screen shows the vehicle’s power flow, average fuel economy, and range.
Shows the power flow, indicating what is supplying power to the vehicle and/or charging the battery.
- The indicator for the power transmission appears in blue, and for the battery charging operation, in green.
Display
|
Color of indicators
|
Vehicle’s Condition
|
---|---|---|
Blue
|
Power is being supplied by the High Voltage battery and the engine-driven generator.
|
|
Blue
|
Power is being supplied by the High Voltage battery.
|
|
Blue
|
Power is being supplied by the engine-driven generator.
|
|
Blue and Green
|
Power is being supplied directly by the engine and the High Voltage battery is being charged by the engine-driven generator.
|
|
Green
|
The High Voltage battery is being charged through regenerative braking.
|
|
Green
|
The High Voltage battery is being charged by the engine-driven generator.
|
- Detail
-
The power flow monitor is also displayed on the driver information interface.
Power Flow/Engine Status Display/High Voltage Battery Charge Level Gauge
While the engine provides propulsion directly to the wheels, the icon appears in the power flow monitor on the screen.
