Brake Light, Taillight, Rear Side Marker Light, and Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
|
Brake Light: LED Taillight: LED Rear Side Marker Light: LED Rear Turn Signal Light: 21 W (Amber) |
-

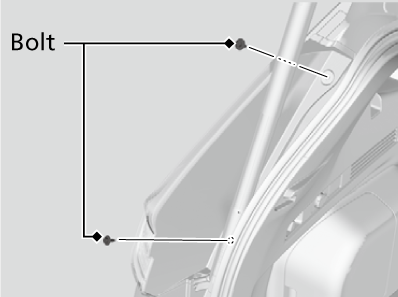

- Unscrew the bolts.
-
-

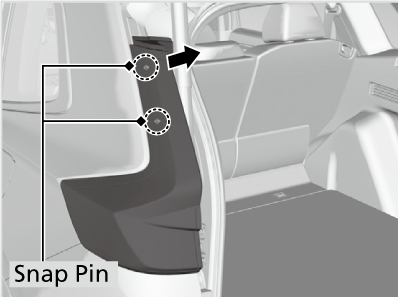

- Pull the taillight carefully until the snap pins are removed from the body grommets.
-
-
- Pull the light assembly out of the rear pillar.
-
-

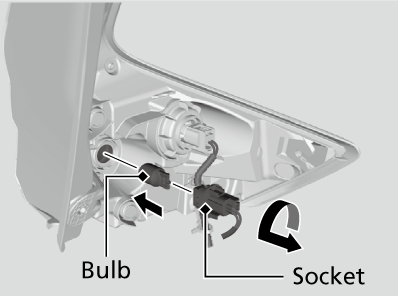

- Turn the socket counter-clockwise and remove it.
- Remove the old bulb and insert a new bulb.
- Align the pins with the body grommets, then push in until they fully seat.
-
- Detail
-
Brake lights, taillights, and rear side marker lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.
