Viewing the Route

This section describes how to follow the route guidance to your destination.

Detail
When your phone is connected to Bluetooth® HandsFreeLink®, the navigation screen will switch to the incoming call screen when receiving a call.

You can stop your vehicle en route (e.g., to rest, stop for gas, etc.), and then continue on your route.

If you did not complete your route, the navigation restarts when you restart your vehicle.

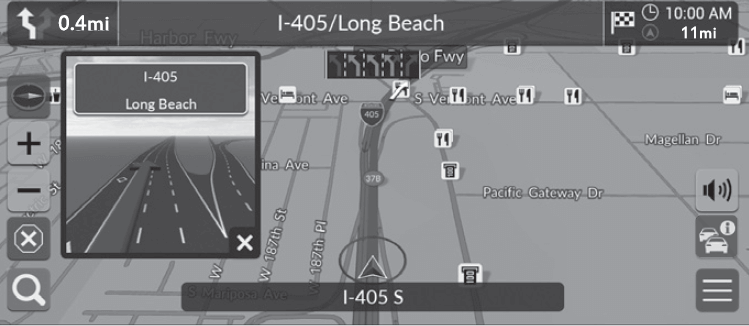

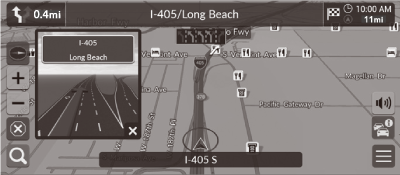

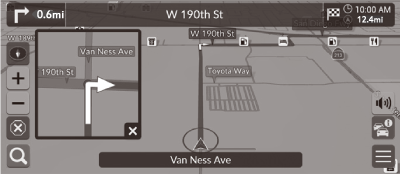

Intersection View Screen
The intersection view screen displays a view of the upcoming intersection and in which lane you should be driving.


You can also turn off the intersection view screen.

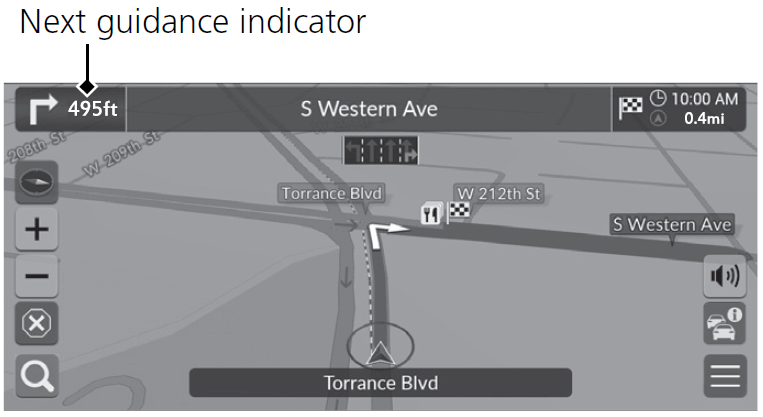

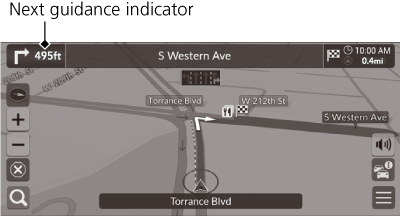

Map Screen

After calculating the route to your destination, the route is displayed on the map screen.

As you drive, the system tracks your position on the map in real time and provides guidance as you approach each guidance point on the route.

The following options are available:

  • Selects the next guidance indicator to replay the voice guidance for the next maneuver.
  • : Sets whether to turn voice guidance on and off.

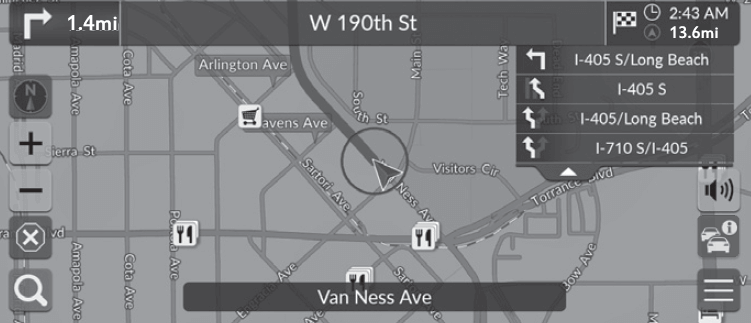

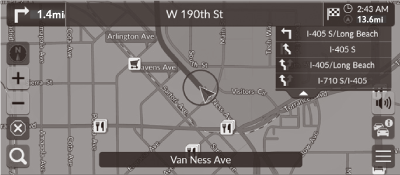

Turn List

The turn list screen displays turn-by-turn instructions and the distance between turns.

  1. Set the Maneuver List to ON.
  2. Select on the map.
Detail

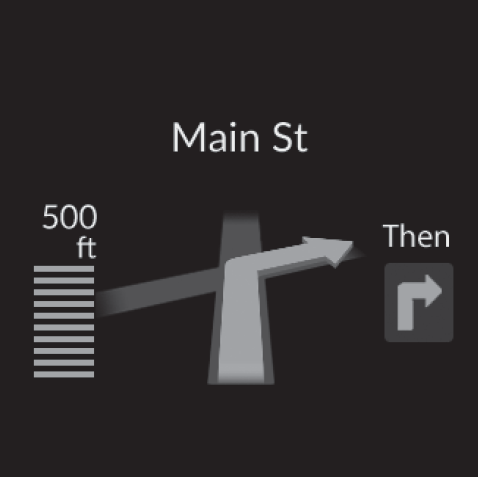

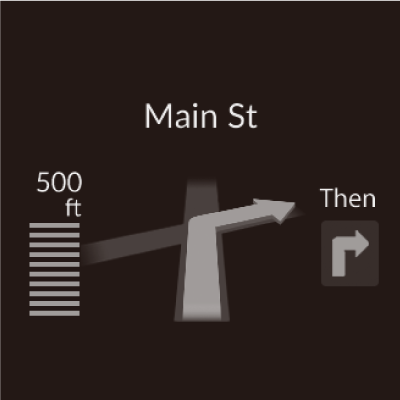

Turn-by-Turn Directions
The next guidance point appears on the Driver Information Interface.
The Turn-by-Turn directions may not be displayed if the information cannot be received correctly.

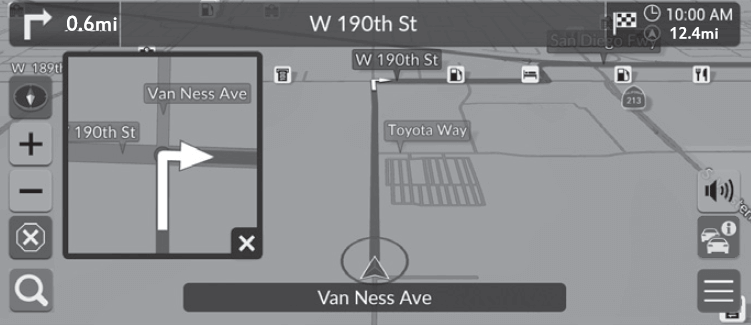

Turn Information

The turn information screen displays the turn on the map and the distance remaining before you reach the turn. The lane assist screen may display a view of the upcoming intersection.

Set the Surface Street in Maneuver Assist Popup to on.

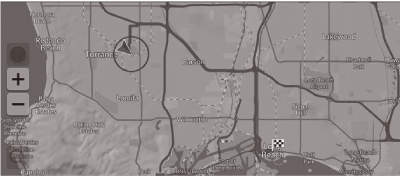

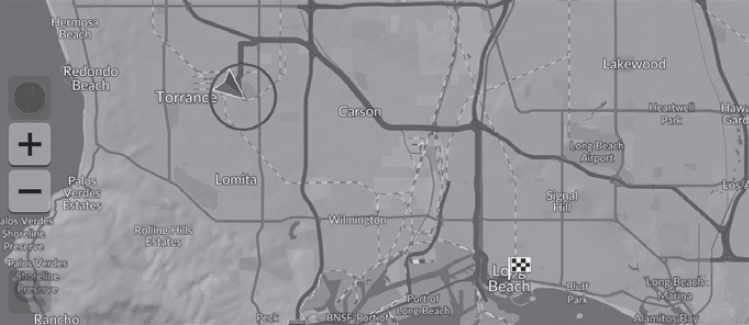

Route Overview

  • Navigation
  • Route Options
  • Route Overview (when en route)

The route overview screen displays the entire route and current vehicle position.

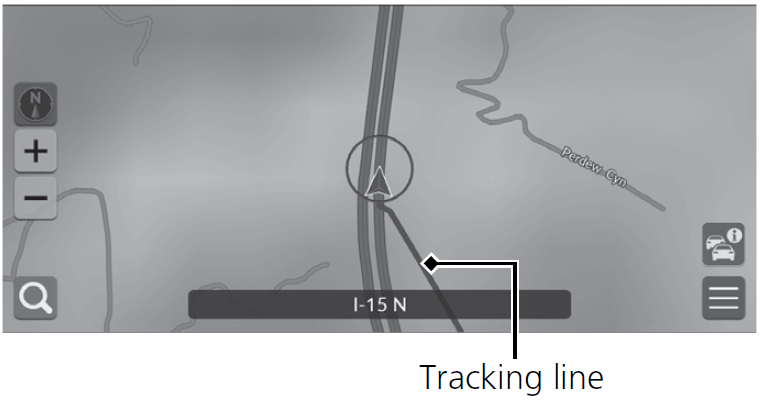

Off-Road Breadcrumbs Display

If you set the off-road breadcrumbs to show, a series of lines (breadcrumbs) are displayed to track your movement on an off-road.


Detail
You can delete the off-road breadcrumbs.
