Head Restraints

Your vehicle is equipped with head restraints in all seating positions.

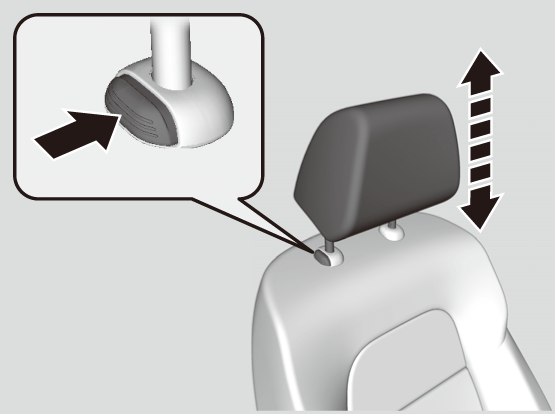

Adjusting the Front Head Restraint Positions

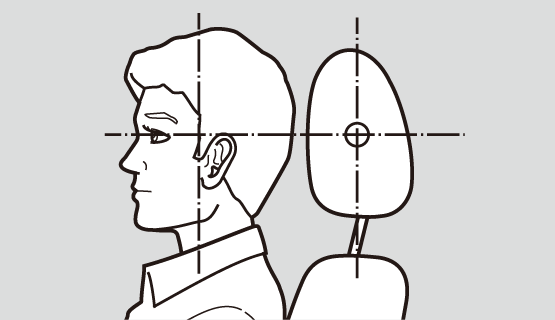

Head restraints are most effective for protection against whiplash and other rear-impact crash injuries when the center of the back of the occupant’s head rests against the center of the restraint. The tops of the occupant’s ears should be level with the center height of the restraint.

Position head in the center of the head restraint.

To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release button.

WARNING

Improperly positioning head restraints reduces their effectiveness and increases the likelihood of serious injury in a crash.

Make sure head restraints are in place and positioned properly before driving.

Detail
In order for the head restraint system to work properly:
  • Do not hang any items on the head restraints, or from the restraint legs.
  • Do not place any objects between an occupant and the seat-back.
  • Install each restraint in its proper location.

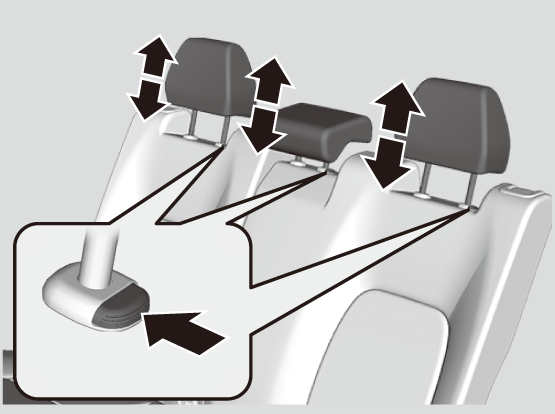

Changing the Rear Seat Head Restraint Positions

A passenger sitting in the rear seat should adjust the height of their head restraint to an appropriate position before the vehicle begins moving.

To raise the head restraint:

Pull it upward.

To lower the head restraint:

Push it down while pressing the release button.

Removing and Reinstalling the Head Restraints

Head restraints can be removed for cleaning or repair.


To remove a head restraint:

Pull the restraint up as far as it will go. Then, push the release button and pull the restraint up and out.


To reinstall a head restraint:

Insert the legs back in place, then adjust the head restraint to an appropriate height while pressing the release button. Pull up on the restraint to make sure it is locked in position.

WARNING

Failure to reinstall, or correctly reinstall, the head restraints can result in severe injury during a crash.

Always replace the head restraints before driving.

Detail
To remove and install the head restraints, recline the seat-back slightly forward as the space between the ceiling and the seat-back is limited.
