Gauges

Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.

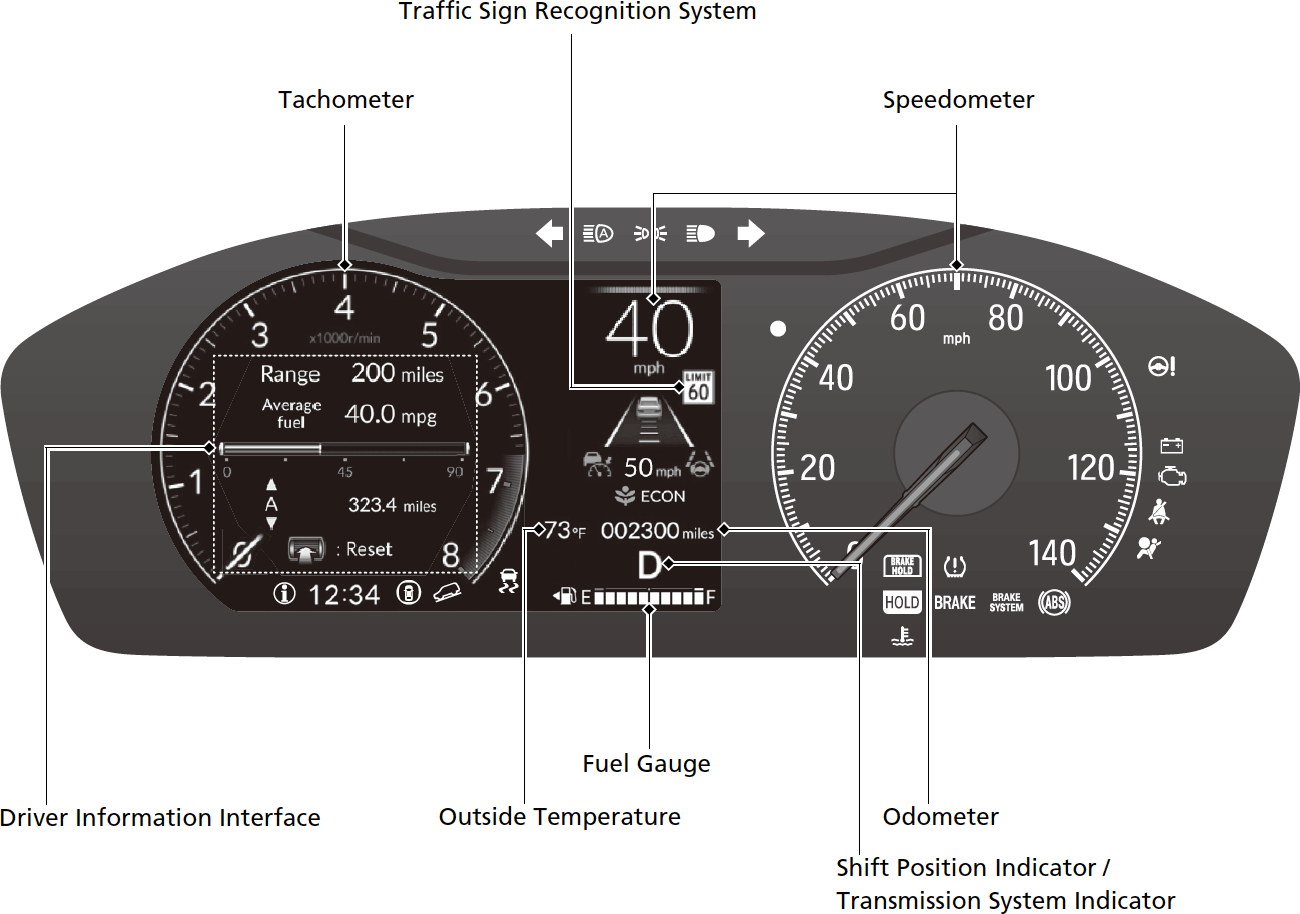

Meter

Speedometer

Displays your driving speed in mph or km/h.

Detail

Tachometer

Shows the number of engine revolutions per minute.

Detail
You can turn the tachometer display on or off.

Fuel Gauge

Displays the amount of fuel left in the fuel tank.

Detail

NOTICE
You should refuel when the reading approaches E.
Running out of fuel can cause the engine to misfire, damaging the catalytic converter.


The actual amount of remaining fuel may differ from the fuel gauge reading.

Odometer

Shows the total number of miles or kilometers that your vehicle has accumulated.

Outside Temperature

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

Detail
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be updated after the temperature reading has stabilized.

You can adjust the temperature reading.

Adjusting the outside temperature display

Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading seems incorrect.

Traffic Sign Recognition System

Shows certain detected traffic signs while driving.
If speed limit warning is activated, the sign icon blinks when the maximum speed of the traffic sign detected is exceeded by a threshold, when compared with the vehicle speed.

Detail
The default speed limit warning threshold is the maximum speed of the traffic sign detected.

You can adjust the threshold for speed limit warning.

Current Mode for ACC with Low Speed Follow, the LKAS, and Traffic Jam Assist*

Shows the current mode for ACC with Low Speed Follow, LKAS, and Traffic Jam Assist*.

Clock

Shows the clock.
You can adjust the time manually and change the clock display to show the 12 hour clock or 24 hour clock.

* Not available on all models
