USB Ports

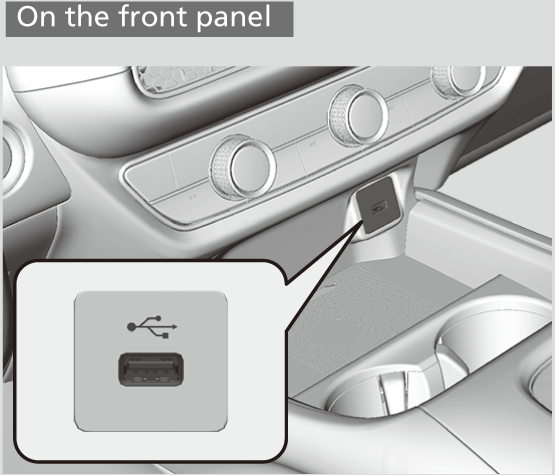

On the front panel

The USB port (2.5A) is for charging devices, playing audio files and connecting compatible phones with Apple CarPlay or Android Auto.

  • To prevent any potential issues, be sure to use an Apple MFi Certified Lightning Connector for Apple CarPlay, and for Android Auto, the USB cables should be certified by USB-IF to be compliant with USB 2.0 Standard.

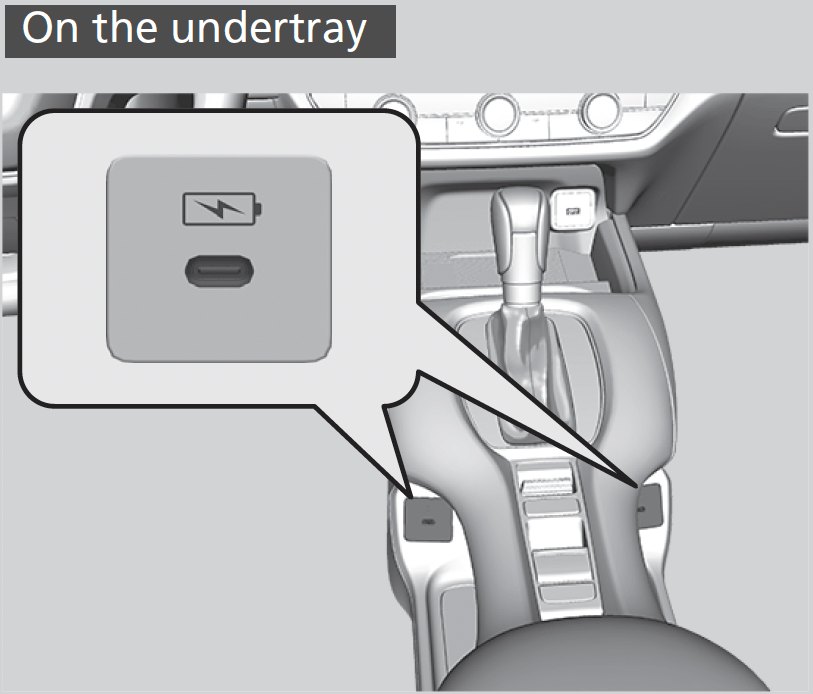

On the undertray

The USB ports (3.0A) are only for charging devices.

  • You cannot play music even if you have connected music players to them.
Detail
  • Do not leave the iPod or USB flash drive in the vehicle. Direct sunlight and high temperatures may damage it.
  • We recommend that you use a USB cable if you are attaching a USB flash drive to the USB port.
  • Do not connect the iPod or USB flash drive using a hub.
  • Do not use a device such as a card reader or hard disk drive, as the device or your files may be damaged.
  • We recommend backing up your data before using the device in your vehicle.
  • Displayed messages may vary depending on the device model and software version.

USB charge
The USB port can supply up to 2.5A/3.0A of power. It does not output 2.5A/3.0A unless requested by the device.
For amperage details, read the operating manual of the device that needs to be charged.

Under certain conditions, a device connected to the port may generate noise to the radio station you are listening to.
