Changing the Rear Wiper Blade Rubber

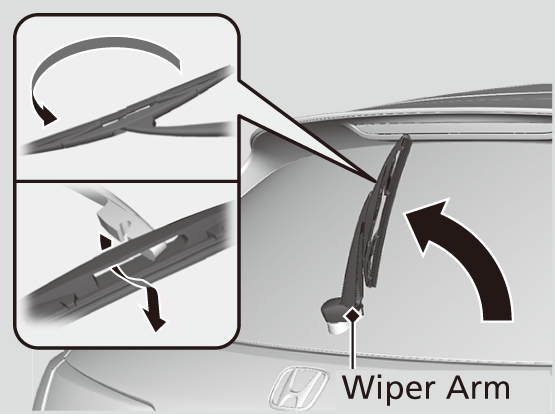

  1. Raise the wiper arm off.
  2. Pivot up the bottom end of the wiper blade until it comes off from the wiper arm.

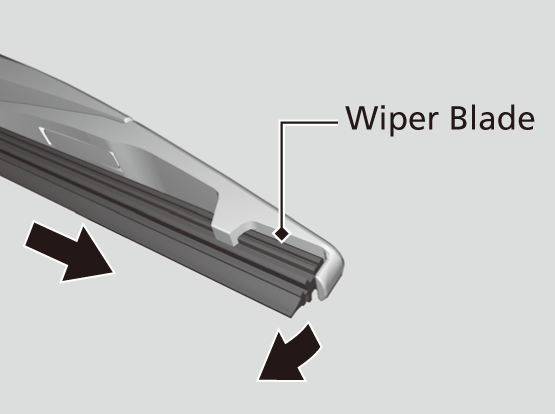

  1. Slide the wiper blade out of the end with the indent.

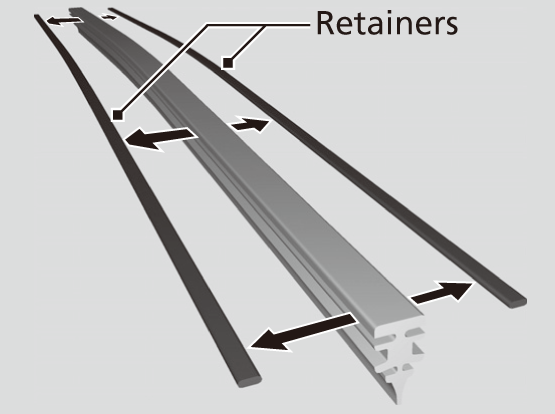

  1. Remove the retainers from the rubber blade that has been removed, and mount to a new rubber blade.

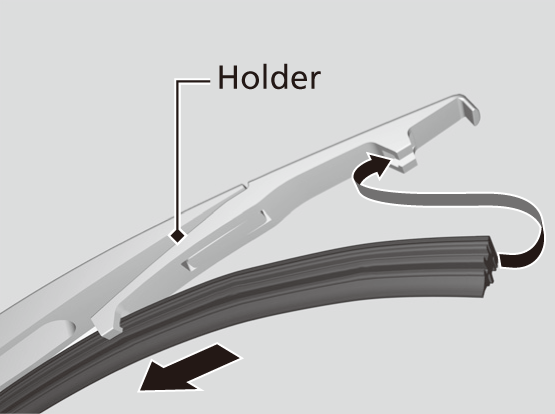

  1. Slide the new wiper blade onto the holder.
    • Make sure it is engaged correctly, then install the wiper blade assembly onto the wiper arm.
Detail

NOTICE
Do not try to forcefully lift up the wiper arm.
The wiper arm may be damaged if it is lifted too high.

NOTICE
Avoid dropping the wiper arm, as it may damage the rear window.
