Interior Lights

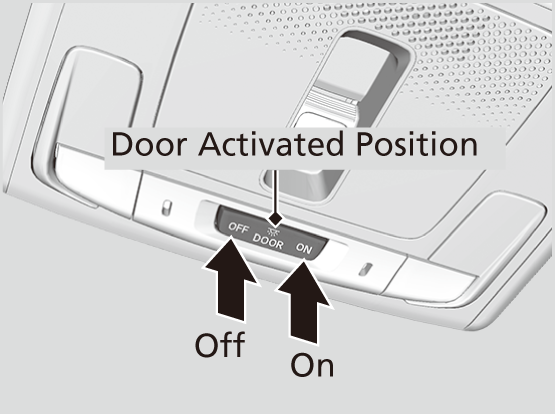

Interior Light Switches

ON

The interior lights come on regardless of whether the doors are open or closed.

Door activated

The interior lights come on in the following situations:

  • When any doors are opened.
  • You unlock the driver’s door.
  • When the power mode is set to VEHICLE OFF.

OFF

The interior lights remain off regardless of whether the doors are open or closed.

Detail
In the door activated position, the interior lights fade out and turn off about 30 seconds after the doors are closed.
The lights turn off after about 30 seconds in the following situations:
  • When you unlock the driver’s door but do not open it.
  • When you set the power mode to VEHICLE OFF but do not open a door.

You can change the interior lights dimming time.
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen

The interior lights turn off immediately in the following situations:
  • When you lock the driver’s door.
  • When you set the power mode to ON.
  • When you close the driver’s door in ACCESSORY mode.

To avoid draining the battery, do not leave the interior light on for an extended length of time when the engine is off.

If you leave any of the doors open in VEHICLE OFF mode, the interior lights go off after about 15 minutes.

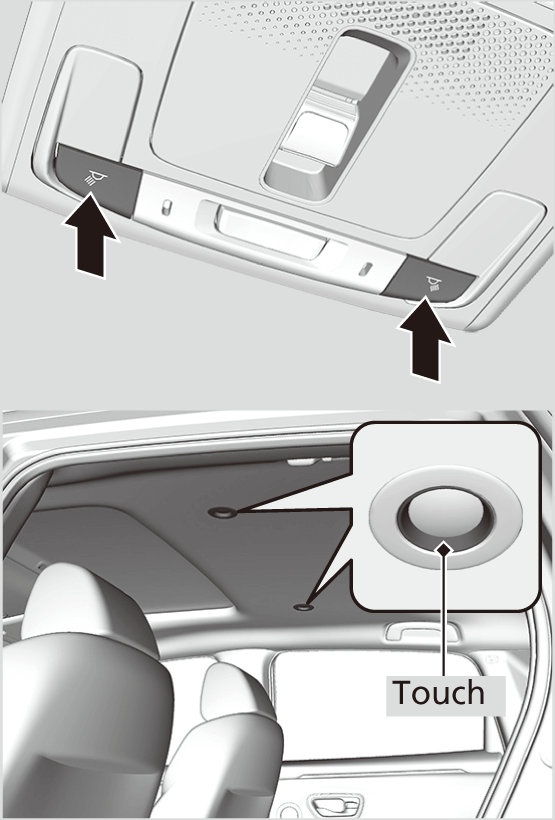

Map Light Switches

Front seat

The map lights can be turned on and off by pressing the buttons.

Rear seat

The map lights can be turned on and off by touching the map lights.

Detail
When the front interior light switch is in the door activated position and any door is open, the map light will not go off when you press the buttons or touch the map lights.

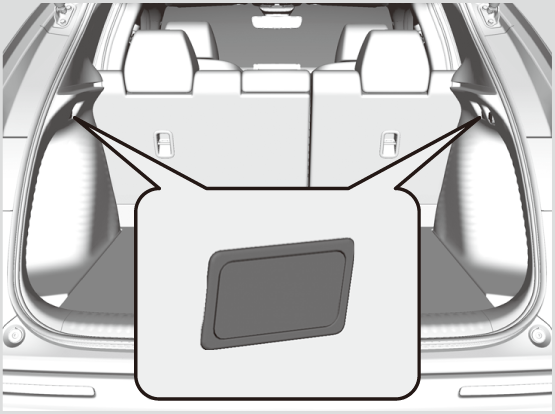

Cargo Area Lights

The cargo area lights come on when you open the tailgate.

* Not available on all models
