Honda Sensing®

Models with Low Speed Braking Control

Honda Sensing® is a driver support system which employs the use of two distinctly different kinds of sensors: the sonar sensors located in the front and rear bumpers, and the front grille, and a front wide view camera mounted to the interior side of the windshield, behind the rearview mirror.

Models without Low Speed Braking Control

Honda Sensing® is a driver support system which employs the use of a front wide view camera mounted to the interior side of the windshield, behind the rearview mirror.

Honda Sensing® has following functions.

The functions which do not require switch operations to activate

The functions which require switch operations to activate

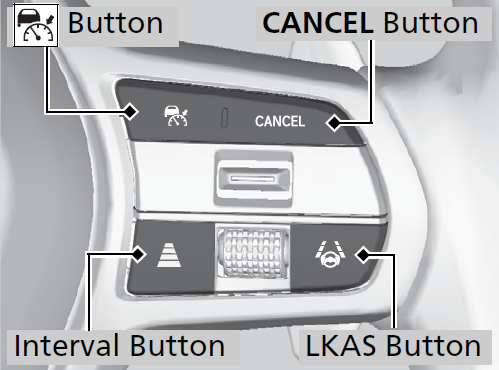

Operation Switches for the Adaptive Cruise Control (ACC) with Low Speed Follow*/Adaptive Cruise Control (ACC)*/Lane Keeping Assist System (LKAS)/Traffic Jam Assist*

Button

Press to activate standby mode for ACC with Low Speed Follow*/ACC*.
Or press to cancel the system.

LKAS Button

Press to activate standby mode for LKAS and Traffic Jam Assist*.
Or press to cancel these systems.

Interval Button

Press to change the ACC with Low Speed Follow*/ACC* following-interval.

CANCEL Button

Press to cancel ACC with Low Speed Follow*/ACC*.

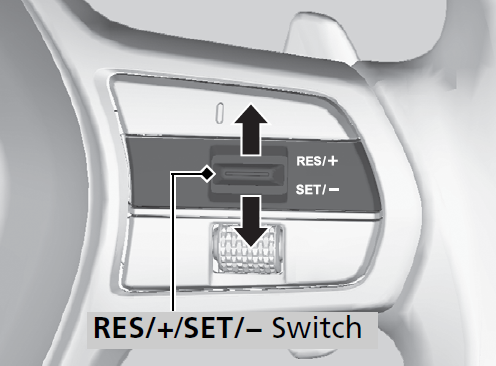

RES/+/SET/− Switch

Press the RES/+/SET/− switch up to set or resume the ACC with Low Speed Follow*/ACC* or increase the vehicle speed.
Press the RES/+/SET/− switch down to set the ACC with Low Speed Follow*/ACC* or decrease the vehicle speed.

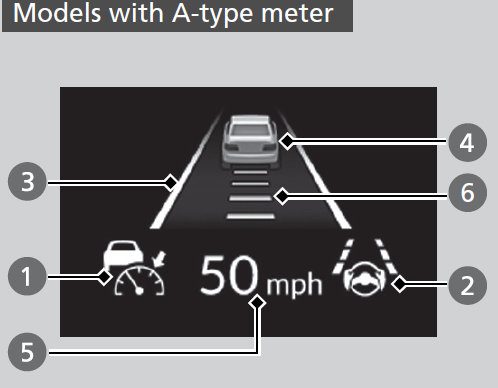

Gauge Content

You can see the current state of Adaptive Cruise Control (ACC) with Low Speed Follow*/Adaptive Cruise Control (ACC)*, Lane Keeping Assist System (LKAS) and Traffic Jam Assist*.


  1. Indicates that ACC with Low Speed Follow*/ACC* is ready to be activated.
    • Green: The system is on.
    • White: The system is standby.
    • Amber: There is a problem with the system.
  2. Indicates that LKAS or Traffic Jam Assist* is ready to be activated.
    • Green: The system is on.
    • White: The system is standby.
    • Amber: There is a problem with the system.
  3. Indicates that LKAS or Traffic Jam Assist* is activated and whether or not traffic lane lines are detected.
    • Green lines: The system is on.
    • White lines: Traffic lane lines are detected.
    • Amber line: Lane departure is detected.
  4. Indicates whether or not a vehicle is detected ahead.

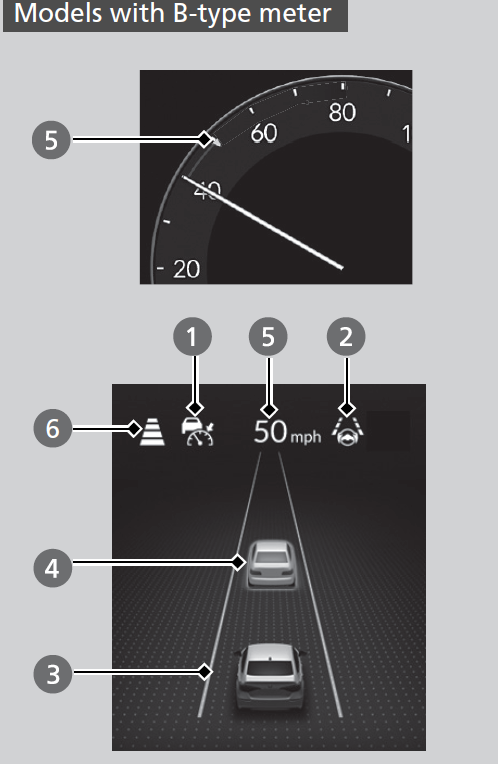

    Models with B-type meter
    • Control target vehicle: White and outlined in green
    • Outside of control target vehicle: Gray
  5. Indicates that ACC with Low Speed Follow*/ACC* shows the set vehicle speed.
  6. Indicates that ACC with Low Speed Follow*/ACC* shows the set vehicle interval.

* Not available on all models
