Gauges

Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.

Speedometer

Displays your driving speed in mph or km/h.

Detail
You can set the speedometer and the displayed measurements to read in either km/h or mph.

U.S. models with B-type meter

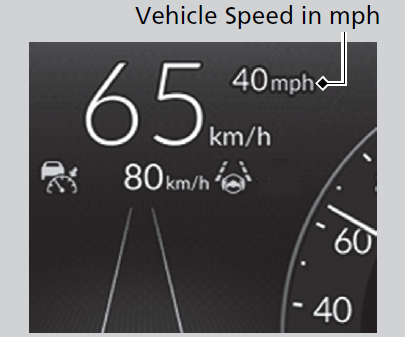

If you change the unit from miles and mph to km and km/h, the current vehicle speed in mph appears next to the digital speedometer.

Tachometer

Shows the number of engine revolutions per minute.

Detail
Models with A-type meter
The tachometer can be turned on and off using the driver information interface or audio/information screen.
Even if you have turned off the tachometer on the driver information interface or audio/information screen, if No content is selected on the driver information interface, it will change to a tachometer-only display.

Manual transmission models with B-type meter
The shift up alarm sounds when the tachometer reading approaches the red zone.
You can turn the shift up alarm feature on and off.

Fuel Gauge

Displays the amount of fuel left in the fuel tank.

Detail
NOTICE
You should refuel when the reading approaches E.
Running out of fuel can cause the engine to misfire, damaging the catalytic converter.

The actual amount of remaining fuel may differ from the fuel gauge reading.
Models with B-type meter

Temperature Gauge

Displays the temperature of the engine coolant.

Detail

NOTICE
Driving with the temperature gauge reading in the upper zone can cause serious engine damage. Pull safely to the side of the road and allow engine temperature to return to normal.

Odometer

Shows the total number of miles or kilometers that your vehicle has accumulated.

Outside Temperature

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

Detail
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be updated after the temperature reading has stabilized.

You can adjust the temperature reading.

Adjusting the outside temperature display

Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading seems incorrect.

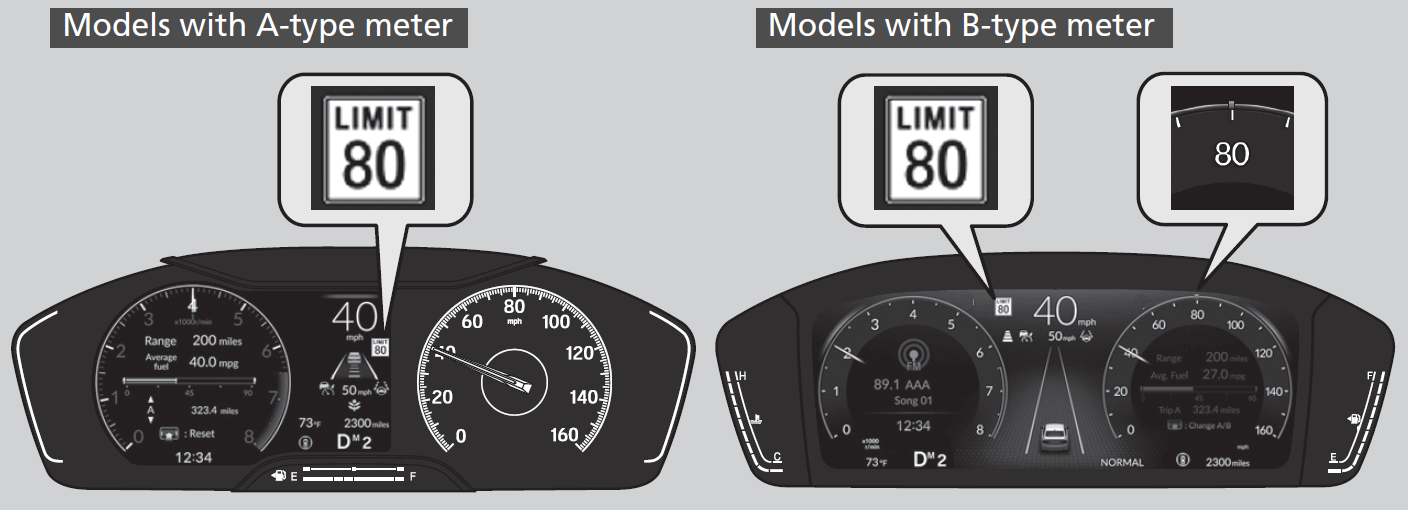

Traffic Sign Recognition System

Shows certain detected traffic signs while driving.
The indicator blinks when the maximum speed of the traffic sign detected by the Traffic Sign Recognition System is exceeded.

Current Mode for ACC with Low Speed Follow*, the LKAS, and Traffic Jam Assist*

Shows the current mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam Assist*.

Detail
Models with B-type meter

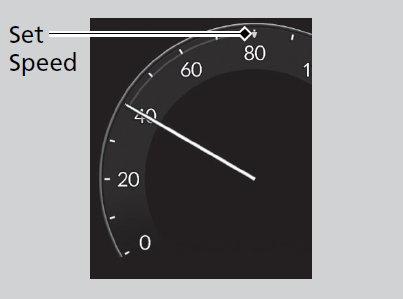

When you set speed for ACC with Low Speed Follow* or cruise control, a set speed mark will be displayed on the speedometer.

Models with A-type meter

Clock

Shows the clock.
You can adjust the time manually and change the clock display to show the 12 hour clock or 24 hour clock.

Rev Indicators*

Light up from outside to center according to engine speed.

Detail
You can turn the rev indicators on and off.

* Not available on all models
