How to Refuel

Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle directly into the filler neck. The tank seals itself again when you pull out the filler nozzle.

  1. Stop your vehicle with the service station pump on the left side of the vehicle in the rear.
  2. Turn off the engine.
  3. Unlock the driver’s door.
    • The fuel fill door on the outer side of the vehicle will unlock.

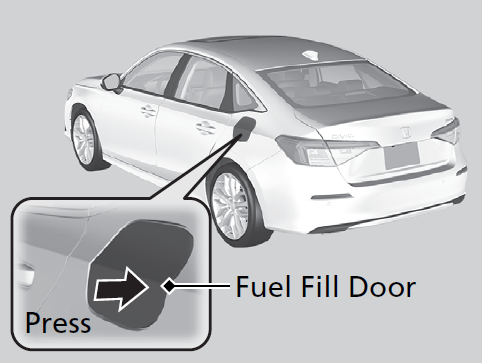

  4. Press and release the area indicated by the arrow to release the fuel fill door. You will hear a click and the lid will open slightly.
  5. Manually pull the fuel fill door to a fully open position.

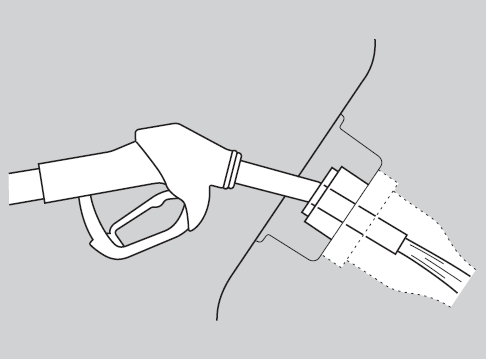

  1. Place the end of the filler nozzle on the lower part of filler opening, then insert it slowly and fully.
    • Make sure that the end of the filler nozzle goes down along with the filler pipe.
    • Keep the filler nozzle level.
    • When the tank is full, the filler nozzle will click off automatically.
    • If you do not fill up the tank to full, always add a minimum of 1.3 US gal (5 L) of fuel.
    • After filling, wait about five seconds before removing the filler nozzle.
  2. Shut the fuel fill door by hand.
WARNING
Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

  • Stop the engine, and keep heat, sparks, and flames away.
  • Handle fuel only outdoors.
  • Wipe up spills immediately.
Detail

The fuel filler opening is designed to accept only service station filler nozzles for refueling. Use of smaller diameter tubes (e.g., those used to siphon fuel for other uses) or other non-service station devices can damage the area in and around the filler opening.

Use the lock tab or the master door lock switch to unlock the fuel fill door.
The vehicle doors and fuel fill door automatically relock if the remote unlock function is used. This can be deactivated by briefly opening then closing the driver’s door.

Using the Walk away auto lock® feature will also lock the fuel fill door. Always make sure both the driver’s door and fuel fill door are unlocked before attempting to open the fuel fill door.

Locking the doors and trunk (Walk away auto lock®)

If the filler nozzle keeps turning off when the tank is not full, there may be a problem with the pump’s fuel vapor recovery system. Try filling at another pump. If this does not fix the problem, consult a dealer.

The filler nozzle automatically stops to leave space in the fuel tank so that fuel does not overflow as a result of changes in air temperature.

Do not continue to add fuel after the filler nozzle has automatically stopped. Additional fuel can exceed the full tank capacity and cause fuel to spill.

If you repeatedly fill the tank with less than the specified minimum amount of fuel, the malfunction indicator lamp may come on. If this happens, have your vehicle checked by a dealer.

If you have to refuel your vehicle from a portable container, use the funnel provided with your vehicle.

Refueling From a Portable Fuel Container
