Audio Remote Controls

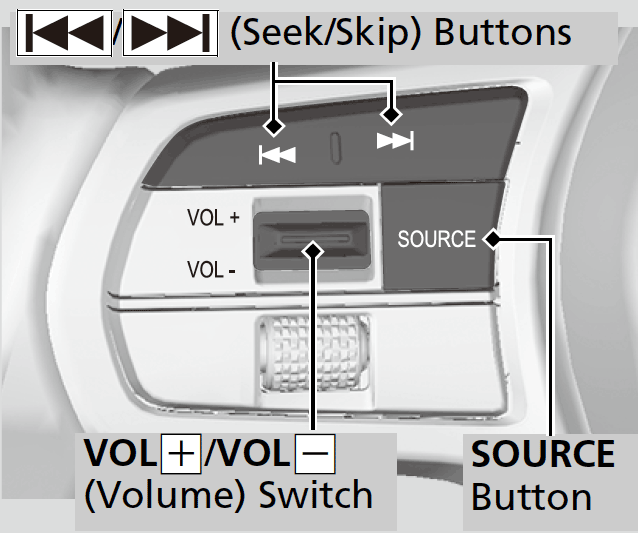

Models with 7-in. Color Touchscreen

Allow you to operate the audio system while driving. The information is shown on the driver information interface.

SOURCE Button
Cycles through the audio modes as follows:
FMAMUSB/iPod/Apple CarPlay/Android AutoBluetooth

VOL+/VOL－ (Volume) Switch
Press Up: To increase the volume.
Press Down: To decrease the volume.


/ (Seek/Skip) Buttons

  • When listening to the radio
    Press : To select the next preset radio station.
    Press : To select the previous preset radio station.
    Press and hold : To select the next strong station.
    Press and hold : To select the previous strong station.
  • When listening to a wired connection, USB flash drive, Bluetooth® Audio, or Smartphone Connection
    • Depending on a connected device, operations may be changed.
    Press : To skip to the next song.
    Press : To go back to the beginning of the current or previous song.
  • When listening to a USB flash drive or Bluetooth® Audio
    Press and hold : To skip to the next folder/group.
    Press and hold : To go back to the previous folder/group.

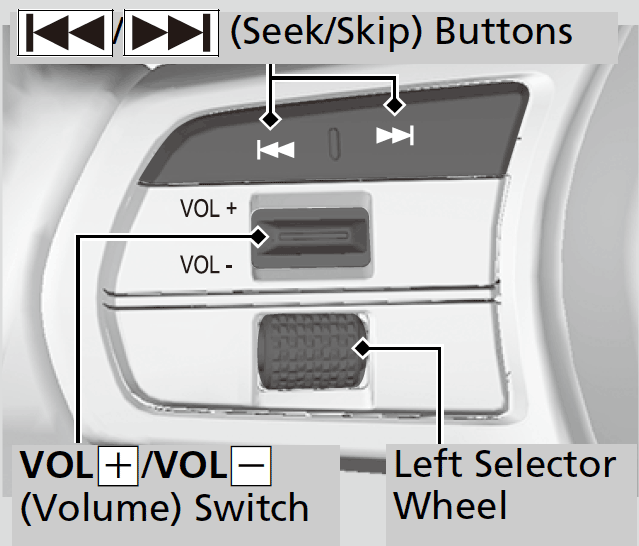

Models with 9-in. Color Touchscreen

Allow you to operate the audio system while driving. The information is shown on the driver information interface.

VOL+/VOL－ (Volume) Switch
Press Up: To increase the volume.
Press Down: To decrease the volume.

/ (Seek/Skip) Buttons

  • When listening to the radio
    Press : To select the next preset radio station.
    Press : To select the previous preset radio station.
    Press and hold : To select the next strong station.
    Press and hold : To select the previous strong station.
  • When listening to a wired connection, USB flash drive, Bluetooth® Audio, or Smartphone Connection
    • Depending on a connected device, operations may be changed.
    Press : To skip to the next song.
    Press : To go back to the beginning of the current or previous song.
  • When listening to a USB flash drive
    Press and hold : To skip to the next folder.
    Press and hold : To go back to the previous folder.
  • When listening to a wired connection
    Press and hold :To fast forward a song.
    Press and hold :To rewind a song.

Left Selector Wheel
Roll up or down:

To cycle through the modes, roll up or down and then press the left selector wheel:

Back/Phone/FM/AM/SXM/USB/Bluetooth/Apps (Apple CarPlay/Android Auto)/Customize display

  • Depending on a connected device, the displayed modes may be changed.
Detail
Some modes appear only when an appropriate device or medium is used.

Depending on the Bluetooth® device you connect, some functions may not be available.
