Apple CarPlay

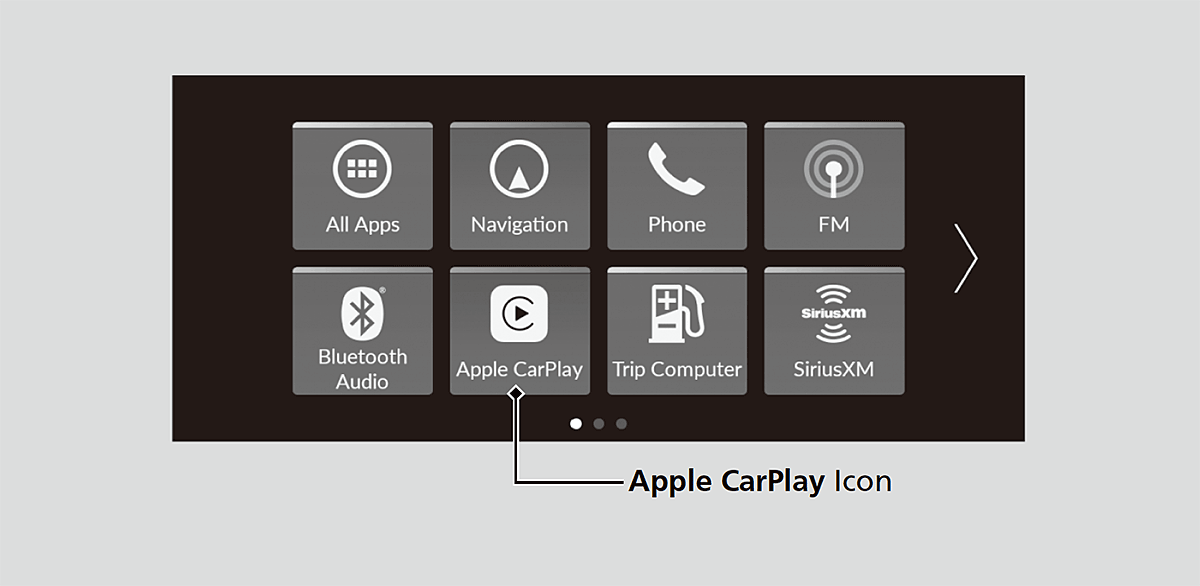

If you connect an Apple CarPlay-compatible iPhone to the system via the USB charging/connector port or wirelessly, and the Apple CarPlay icon is selected, you can use Apple CarPlay on the audio/information screen.

Detail
We recommend that you update iOS to the latest version when using Apple CarPlay.

Park in a safe place before connecting your iPhone to Apple CarPlay and when launching any compatible apps.

While connected to Apple CarPlay, it is not possible to use the Bluetooth® Audio or HandsFreeLink®. Calls or music playback are only made through Apple CarPlay. Other previously paired phones can use the Bluetooth® Audio.

When using Hands Free, you can only control it with Siri.

Operating Apple CarPlay with Siri


Apple CarPlay and Android Auto cannot run at the same time.

For details on countries and regions where Apple CarPlay is available, as well as information pertaining to function, refer to the Apple website.

Use of Apple CarPlay will result in the transmission of certain user and vehicle information (such as vehicle location, speed, and status) to your iPhone to enhance the Apple CarPlay experience. You will need to consent to the sharing of this information on the audio/information screen.

Apple CarPlay Operating Requirements & Limitations
Apple CarPlay requires a compatible iPhone with an active cellular connection and data plan. Your carrier's rate plans will apply.

Changes in operating systems, hardware, software, and other technology integral to providing Apple CarPlay functionality, as well as new or revised governmental regulations, may result in a decrease or cessation of Apple CarPlay functionality and services. Honda cannot and does not provide any warranty or guarantee of future Apple CarPlay performance or functionality.

It is possible to use third-party apps if they are compatible with Apple CarPlay. Refer to the Apple website for information on compatible apps.

You can use the following procedure to disconnect or delete the devices connecting Apple CarPlay:
Press the buttonSelect General SettingsSmartphone ConnectionApple CarPlaySelect device.

Use of user and vehicle information
The use and handling of user and vehicle information transmitted to/from your iPhone by Apple CarPlay is governed by the Apple iOS terms and conditions and Apple's Privacy Policy.

Apple CarPlay Menu

For details on available applications, please refer to the Apple CarPlay website. Apps displayed on your screen can be changed with your iPhone. Select the Honda icon on the Apple CarPlay menu screen to go back to the home screen.

Connecting Apple CarPlay Using the USB Cable

  1. Connect the iPhone to the USB port using the USB cable.
    • The confirmation screen will be displayed.
  2. Select Yes.
    • If you do not want to connect Apple CarPlay, select No.

You may change the consent settings under the Smartphone Connection settings menu.

Connect Apple CarPlay Wirelessly

Connect Apple CarPlay wirelessly on the home screen

  1. Press the button.
  2. Select Smartphone Connection.
  3. Select + Connect New Device.
  4. Pair the iPhone to the vehicle's Bluetooth® HandsFreeLink® (HFL) system.
  5. Select Yes.
    • If your iPhone asks to accept for connecting Apple CarPlay, accept for connection. A confirmation message for HondaLink Assist appears.
  6. Select Yes or No.

Connect Apple CarPlay wirelessly on the Apple CarPlay device list

  1. Press the button.
  2. Select General Settings.
  3. Select Smartphone Connection.
  4. Select Apple CarPlay.
  5. Select + Connect New Device.
  6. Pair the iPhone to the vehicle's Bluetooth® HandsFreeLink® (HFL) system.
  7. Select Yes.
    • If your iPhone asks to accept for connecting Apple CarPlay, accept for connection. A confirmation message for HondaLink Assist appears.
  8. Select Yes or No.

Connect Apple CarPlay wirelessly on the Bluetooth® device list

  1. Press the button.
  2. Select General Settings.
  3. Select Connections.
  4. Select Bluetooth.
  5. Select + Connect New Device.
  6. Pair the iPhone to the vehicle's Bluetooth® HandsFreeLink® (HFL) system.
  7. Check the box on Apple CarPlay.
    • If you select Apple CarPlay, you cannot select Audio and Phone.
  8. Select Connect.
  9. Select Yes.
    • If your iPhone asks to accept for connecting Apple CarPlay, accept for connection. A confirmation message for HondaLink Assist appears.
  10. Select Yes or No.

Connect Apple CarPlay wirelessly with the steering wheel

  1. Press and hold the (talk) button on the steering wheel.
  2. Pair the iPhone to the vehicle's Bluetooth® HandsFreeLink® (HFL) system.
  3. Check the box on Apple CarPlay.
    • If you select Apple CarPlay, you cannot select Audio and Phone.
  4. Select Connect.
  5. Select Yes.
    • If your iPhone asks to accept for connecting Apple CarPlay, accept for connection. A confirmation message for HondaLink Assist appears.
  6. Select Yes or No.

Connect Apple CarPlay wirelessly at start-up (when there is no phone paired to the system)

  1. Set the power mode to ACCESSORY or ON.
  2. Select OK.
    • If there is no registered device, the Bluetooth® pairing screen will be displayed.
    • If you check the box with Do not show this again, this screen will not be displayed.
  3. Pair the iPhone to the vehicle's Bluetooth® HandsFreeLink® (HFL) system.
  4. Check the box on Apple CarPlay.
    • If you select Apple CarPlay, you cannot select Audio and Phone.
  5. Select Connect.
  6. Select Yes.
    • If your iPhone asks to accept for connecting Apple CarPlay, accept for connection. A confirmation message for HondaLink Assist appears.
  7. Select Yes or No.

Operating Apple CarPlay with Siri

Press and hold the (talk) button to activate Siri.
Press again to deactivate Siri.
Press and release to activate standard voice recognition system.

Detail
Below are examples of questions and commands for Siri.

  • What movies are playing today?
  • Call dad at work.
  • What song is this?
  • How's the weather tomorrow?
  • Read my latest email.

For more information, please visit www.apple.com/ios/siri.
