Lifting the Wiper Arms

  1. Set the power mode to ON, then to VEHICLE OFF.
  2. Within 10 seconds of setting the power mode to VEHICLE OFF, hold the wiper switch in the MIST position for more than two seconds.

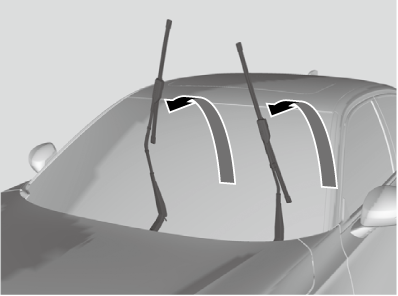

    • Both wiper arms are set to the maintenance position as shown in the image.

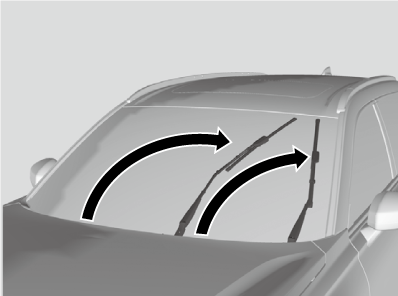

  1. Lift both wiper arms.
Detail

NOTICE

When lifting the wiper arms, always follow the instructions to move them into the maintenance position.
The wiper arms may be damaged if they are moved manually.
