Audio Remote Controls

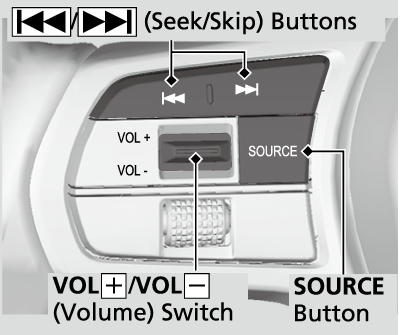

Models with 7-in. Color Touchscreen

Allow you to operate the audio system while driving. The information is shown on the driver information interface.

  • SOURCE Button
    Cycles through the audio modes as follows:
    FM→AM→USB/iPod/Apple CarPlay/
    Android Auto→Bluetooth

  • VOL+/VOL- (Volume) Switch
    Press Up: To increase the volume.
    Press Down: To decrease the volume.
  • / (Seek/Skip) Buttons
    • When listening to the radio
      Press : To select the next preset radio station.
      Press : To select the previous preset radio station.
      Press and hold : To select the next strong station.
      Press and hold : To select the previous strong station.
    • When listening to a wired connection, USB flash drive, Bluetooth® Audio, or Smartphone Connection
      • Depending on a connected device, operations may be changed.
      Press : To skip to the next song.
      Press : To go back to the beginning of the current or previous song.
    • When listening to a USB flash drive or Bluetooth® Audio
      Press and hold : To skip to the next folder/group.
      Press and hold : To go back to the previous folder/group.

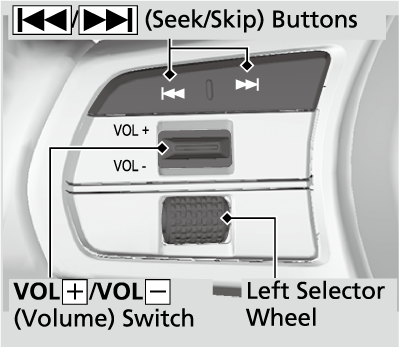

Models with 9-in. Color Touchscreen

Allow you to operate the audio system while driving. The information is shown on the driver information interface.

  • VOL+/VOL- (Volume) Switch
    Press Up: To increase the volume.
    Press Down: To decrease the volume.
    • / (Seek/Skip) Buttons
      • When listening to the radio
        Press : To select the next preset radio station.
        Press : To select the previous preset radio station.
        Press and hold : To select the next strong station.
        Press and hold : To select the previous strong station.
      • When listening to a wired connection, USB flash drive, Bluetooth® Audio, or Smartphone Connection
        • Depending on a connected device, operations may be changed.
        Press : To skip to the next song.
        Press : To go back to the beginning of the current or previous song.
      • When listening to a USB flash drive
        Press and hold : To skip to the next folder.
        Press and hold : To go back to the previous folder.

    • Left Selector Wheel
      Roll up or down:To cycle through the audio modes, roll up or down and then press the left selector wheel:
      Back/Phone/FM/AM/USB/Bluetooth/Apple CarPlay/Android Auto/Alexa/Customize display
      • Depending on a connected device, the displayed modes may be changed.
    Detail
    Some modes appear only when an appropriate device or medium is used.

    Depending on the Bluetooth® device you connect, some functions may not be available.
