Lifting the Front Wiper Arms

  1. Set the power mode to VEHICLE OFF.
  2. While holding the wiper switch in the MIST position, set the power mode to ON, then to VEHICLE OFF.

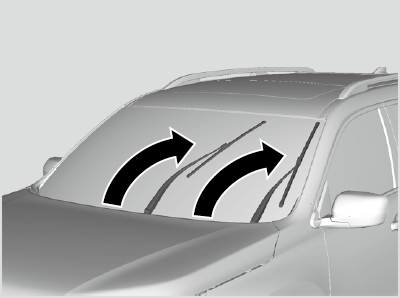

    • Both wiper arms are set to the maintenance position as shown in the image.

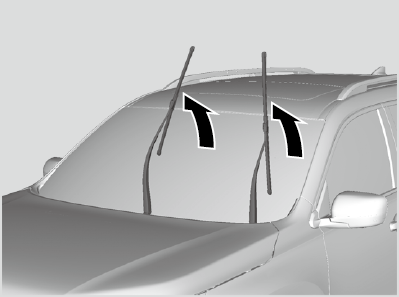

  1. Lift both wiper arms.
Detail

NOTICE
When lifting the wiper arms, always follow the instructions to move them into the maintenance position.
The wiper arms may be damaged if they are moved manually.
