Tire Pressure Monitoring System (TPMS) with Tire Fill Assist

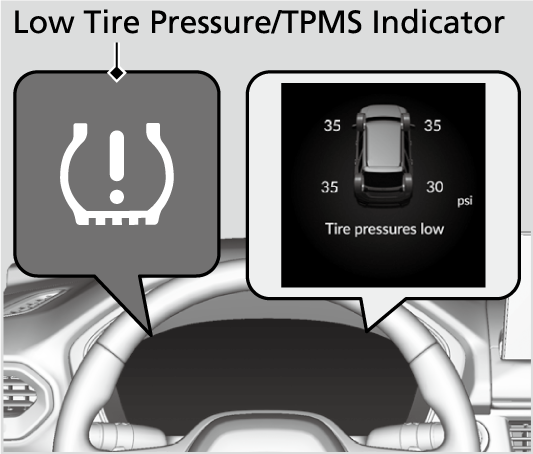

Monitors the tire pressure while you are driving. If your vehicle’s tire pressure becomes significantly low, the Low Tire Pressure/TPMS indicator comes on and a message appears on the driver information interface.

Detail
Conditions such as low ambient temperature and altitude change directly affect tire pressure and can trigger the Low Tire Pressure/TPMS indicator to come on.

Tire pressure checked and inflated in:
  • Warm weather can become under-inflated in colder weather.
  • Cold weather can become overinflated in warmer weather.
The Low Tire Pressure/TPMS indicator will not come on as a result of overinflation.

Only use genuine wheels designed for and equipped with TPMS sensors. If you drive your vehicle without TPMS-sensor-equipped wheels, the low tire pressure/TPMS indicator blinks for one minute and then stays on.

The TPMS audibly and visually informs you of changes in tire pressure of the individual tire that you are adjusting.

Tire Pressure Monitor

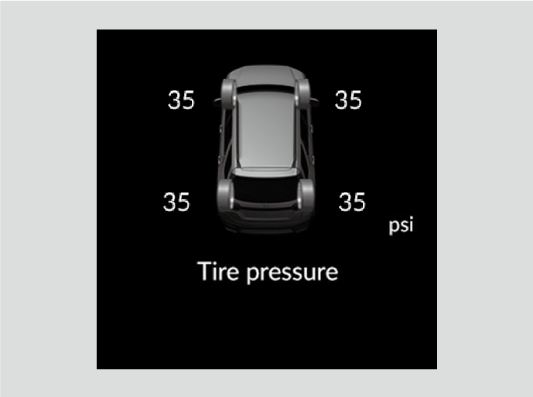

To select the tire pressure monitor, set the power mode to ON, and roll the right selector wheel until you see the tire pressure screen.

The pressure for each tire is displayed in psi.

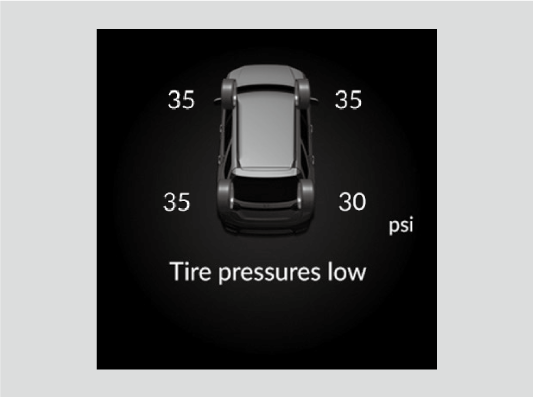

Tire pressures low is displayed when a tire has significantly low pressure. The specific tire is displayed on the screen.

Detail
The pressure displayed on the driver information interface can be slightly different from the actual pressure as measured by a gauge. If there is a significant difference between the two values, or if the Low Tire Pressure/TPMS indicator and the message on the driver information interface do not go off after you have inflated the tire to the specified pressure, have the system checked by a dealer.

Tire pressure monitor system problem. may appear if you drive with the spare tire, or there is a problem with the TPMS.

The system checks each tire’s position on the vehicle each time the power mode is set to ON. “--” is displayed when the vehicle has not yet identified the location of each sensor or when there is a problem. To allow the vehicle to identify the sensor locations, drive at a speed of more than 25 mph (40 km/h) until each tire pressure is displayed.

If the pressure display does not update even after driving for one minute or if “--” is displayed for each wheel with an amber tire icon, have your vehicle checked by a dealer.
