Driver Information Interface

The driver information interface shows information such as the estimated travelable distance and fuel economy of the vehicle. It also displays messages such as warnings and other helpful information.
When a warning message displays, please check the message and contact a dealer to have the vehicle inspected if necessary. Please refer to the pages below if the Engine oil pressure low, Engine temperature too hot or Limited stopping power! message is displayed.

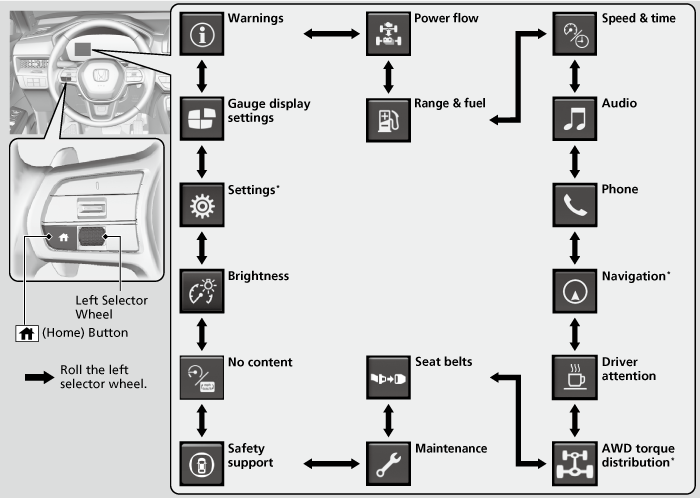

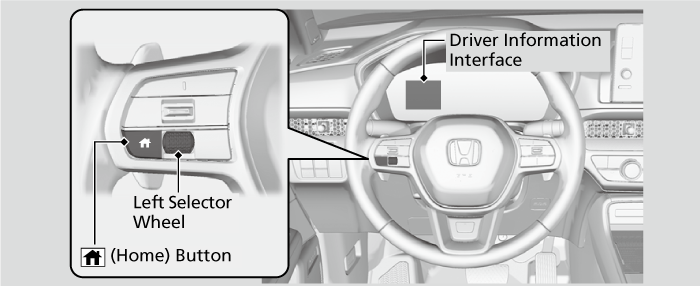

Switching the Display

Press the (home) button, then roll the left selector wheel to scroll to the content you want to see. Press the left selector wheel to see detailed information.

Detail
You can add or delete the meter contents.

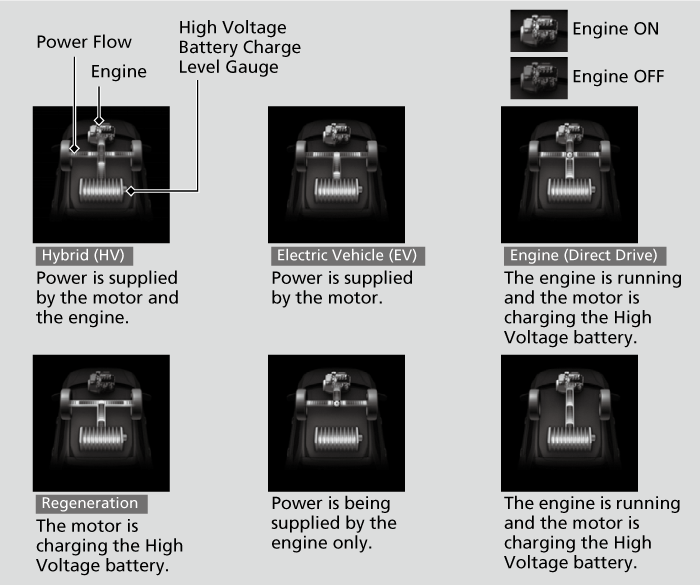

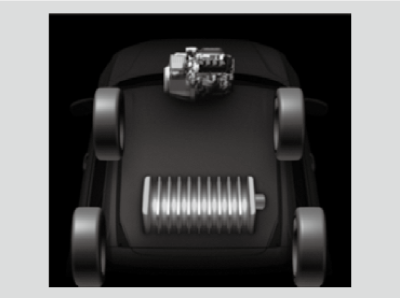

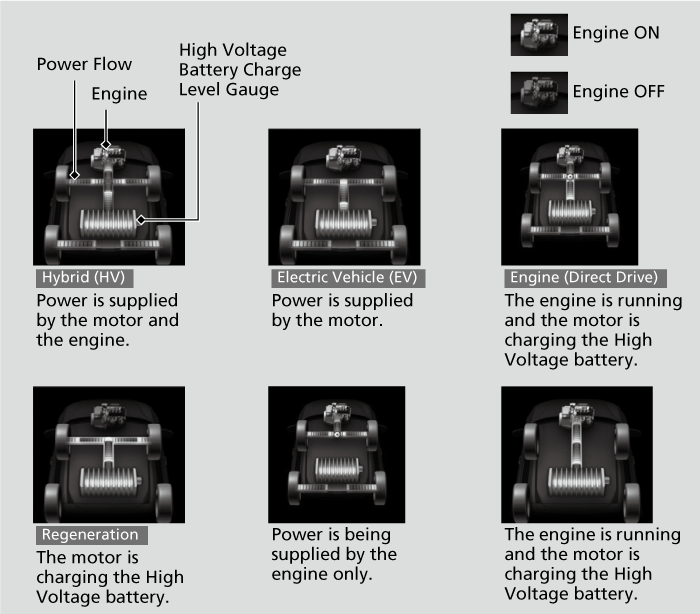

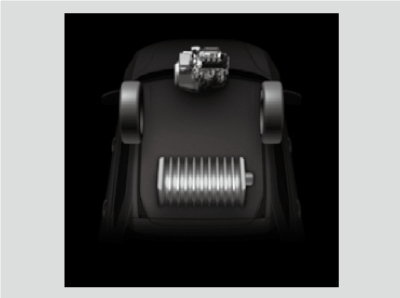

Power Flow/Engine Status Display/High Voltage Battery Charge Level Gauge

Displays the power flow of the motor and engine, indicating the vehicle’s power source, remaining battery level, and whether the battery is being charged.

2WD models
AWD models
Detail
The High Voltage battery charge level may decrease under the following conditions:
  • When the 12-volt battery has been replaced.
  • When the 12-volt battery has been disconnected.
  • When the High Voltage battery control system corrects its reading.

The charge level reading will be corrected automatically while driving.

Changes in the temperature of the High Voltage battery can increase or decrease the battery’s charging capacity. If temperature changes cause the battery’s capacity to change, the number of indicators in the battery charge level gauge may also change, even if the amount of charge remains the same.

While the vehicle is stationary with the engine running, the following may appear on the driver information interface.
2WD models


AWD models

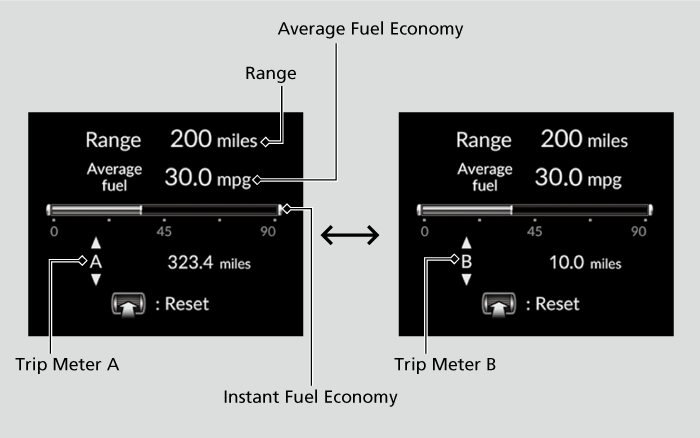

Range / Fuel / Trip Meter

Roll the left selector wheel to switch between trip meter A and trip meter B.

Trip meter

Shows the total number of miles or kilometers driven since the last reset. Meters A and B can be used to measure two separate trips.


Resetting a trip meter

To reset the trip meter, display it, press the left selector wheel and then select Reset.

  • The trip meter is reset to 0.0.

Average Fuel Economy

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km. The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Detail
You can change when to reset the average fuel economy.

Instant Fuel Economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

Range

Shows the estimated distance you can travel on the remaining power and fuel. This estimated distance is based on the vehicle’s current fuel economy.

Detail
The driving range displayed is only an estimate and may differ to the actual distance the vehicle can travel.

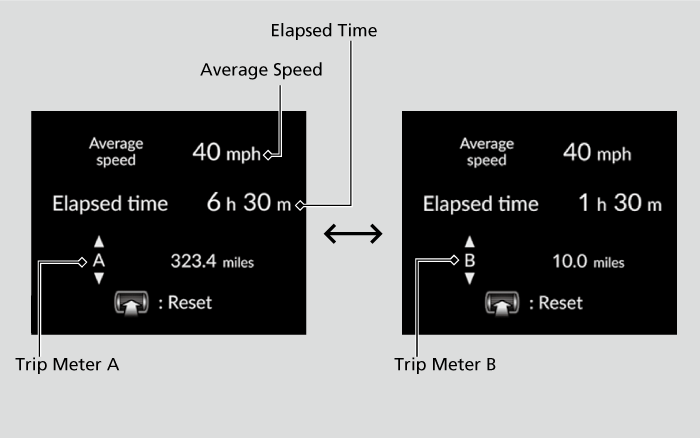

Speed / Time / Trip Meter

Roll the left selector wheel to switch between trip meter A and trip meter B.

Trip meter

Elapsed time

Shows the time elapsed since Trip A or Trip B was reset.

Detail
You can change when to reset the elapsed time.

Average speed

Shows the average speed in mph or km/h since Trip A or Trip B was reset.

Detail
You can change when to reset the average speed.

Audio

Shows the current audio information.

Phone

Shows the current phone information.

Navigation*

Detail
You can select whether to have the turn-by-turn display come on or not during the route guidance.

Turn-by-turn directions may not be available for all apps.

Models with navigation system
When the compass or turn-by-turn directions are displayed, you can control some navigation system functions on the driver information interface by scrolling the left selector wheel.

Compass

Shows the compass screen.

Turn-by-Turn Directions

When driving guidance is provided by the navigation system*, Android Auto or Apple CarPlay, turn-by-turn directions to your destination appear.

Refer to the Navigation System Manual

Driver Attention Monitor

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is being driven in a manner consistent with drowsy or inattentive driving. If it determines that the vehicle is being driven in such a manner, it will display the degree of the driver’s attention on the driver information interface.

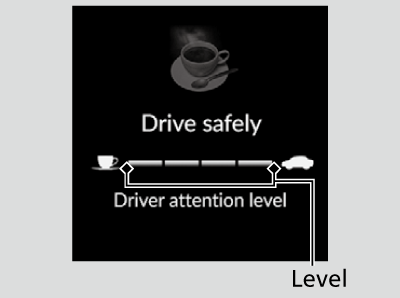

When you select Driver attention on the driver information interface, bars on it light up in white to indicate the degree of the driver’s attention.

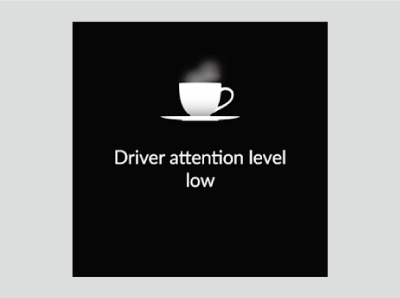

If two bars light up, the Driver attention level low message will appear.

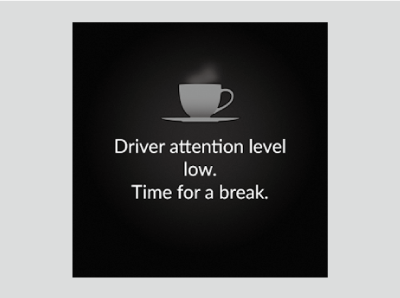

If one bar lights up, the Driver attention level low. Time for a break. message will appear, a beep will sound, and the steering wheel will vibrate.
If this message appears, stop in a safe location and rest for as long as needed.
The message will disappear when the left selector wheel is pressed or when the system has determined that the driver is driving normally.
If the driver does not take a break and the monitor continues to detect that the driver is very tired, the message will appear again after approximately 15 minutes, accompanied by a beep and steering wheel vibrations.
The message does not appear when the traveling time is 30 minutes or less.

Detail
The Driver Attention Monitor cannot always detect if the driver is tired or inattentive.
Regardless of the system’s feedback, if you are feeling tired, stop in a safe location and rest for as long as needed.

The Driver Attention Monitor resets when:

  • The power system is turned off.
  • The driver unfastens the seat belt and opens the door while the vehicle is stopped.

For the Driver Attention Monitor to function:

  • The vehicle must be traveling above 25 mph (40 km/h).
  • The electric power steering (EPS) system indicator must be off.
Detail
The bars on the driver information interface remain grayed out unless the Driver Attention Monitor is functioning.

Depending on driving conditions or other factors, the Driver Attention Monitor may not function in the following circumstances:

  • The steering assist function of the Lane Keeping Assist System (LKAS) is active.
  • The condition of the road is poor; e.g., the surface is unpaved or bumpy.
  • It is windy.
  • The driver is frequently operating the vehicle in an assertive manner, such as changing lanes or accelerating.

Customizing

You can change the Driver Attention Monitor settings. Select Tactile and audible alert*1/Tactile And Audible Alert*2, Tactile alert*1/Tactile Alert*2, or OFF.

  1. Models with 7-in. Color Touchscreen
  2. Models with 9-in. Color Touchscreen

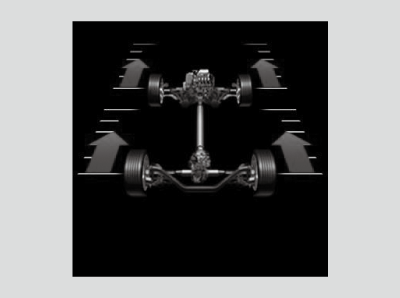

AWD Torque Distribution Monitor*

The indicators on the display show the amount of torque being transferred to the right front, left front, right rear, and left rear wheels.

Seat Belts

Occurs, under specified conditions, when seat belts are latched or unlatched.

Maintenance

Shows the remaining oil life and Maintenance MinderTM.

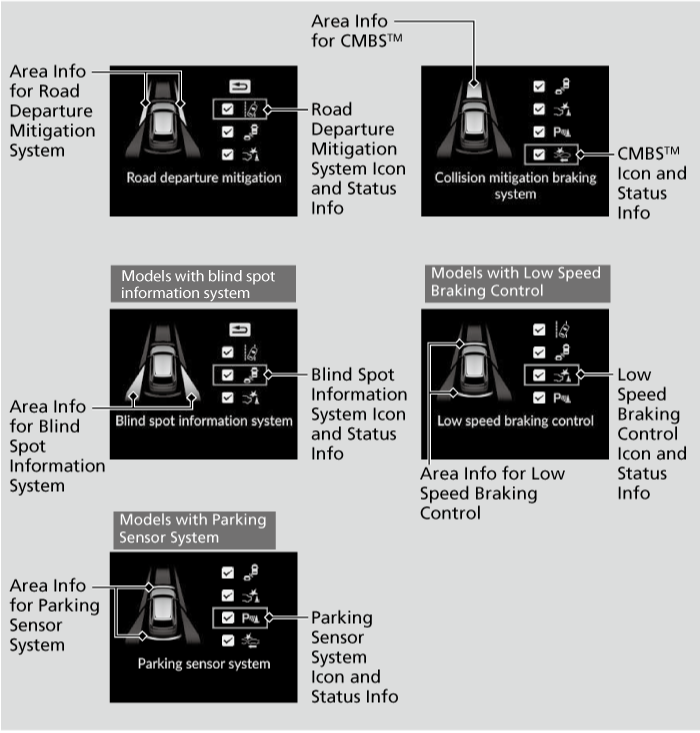

Safety Support

Indicates the status of the Road Departure Mitigation system, CMBSTM, Low Speed Braking Control*, Blind Spot Information System*, and Parking Sensor System*, such as On, Off, or Failure, by color and letters.

The following colors indicate the status of any of the above-mentioned systems:

  • Green: The system is on.
  • Gray: The system is off.
  • Amber: There is a problem with the system.
Detail
If a system is indicated by the color amber, have your vehicle checked by a dealer immediately.

To turn on or off each system, first rotate the left selector wheel to switch displays. From the next display you can select which system to turn on or off.

You can also confirm the status of each function by the color of the safety support indicator.

Models with Low Speed Braking Control
Even when the Low Speed Braking Control icon is green, if the Rear Sensor Setting is turned off, the brake assist will not operate when reversing.

Models with Parking Sensor System
Even when the Parking Sensor System icon is green, if the Rear Sensor Setting is turned off, the rear parking sensor will not operate when reversing.

No Content

Speed/Distance Units

Enables you to show another unit on the driver information interface and audio/information screen and set the displayed measurements to read in either miles and mph or km and km/h.

Press and hold the left selector wheel when you select No content on the driver information interface. Each time you do this, the unit will change from miles and mph to km and km/h or vice versa. After this, a confirmation screen will appear for a few seconds.

Brightness

Display the adjustment for instrument panel brightness.

When the power mode is in ON, you can use the left selector wheel to adjust instrument panel brightness.
Brighten: Roll the left selector wheel up.
Dim: Roll the left selector wheel down.

Press the left selector wheel to exit.

Detail
The brightness of the gauge is automatically adjusted depending on the ambient brightness.
  • The brightness dims when the ambient light is dark.
  • The brightness brightens when the ambient light is bright.

You can change the setting even when the ambient lighting is bright, but the brightness of the gauge won’t change.

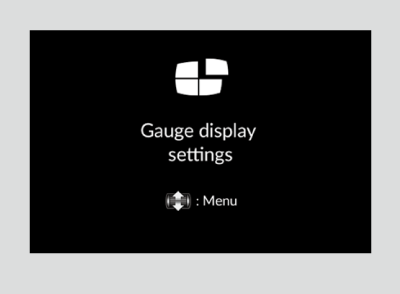

Gauge Display Settings

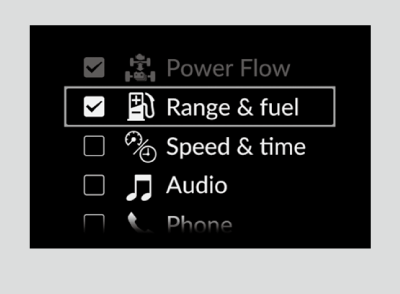

You can choose which icons to display on the home screen.

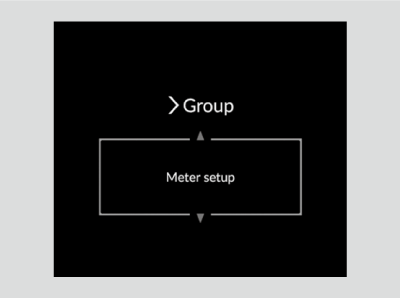

  1. Roll the left selector wheel to scroll to select Gauge display settings, then press the left selector wheel.
  2. Roll the left selector wheel.
  1. Roll the left selector wheel to scroll between icons, then press the left selector wheel to check or uncheck them.
Detail
Icons that are gray cannot be removed from the home screen.

When you customize settings, shift to P.

Warnings

You can check if there are any active warning messages.

Detail
If there are multiple warnings, you can roll the left selector wheel to see other warnings.

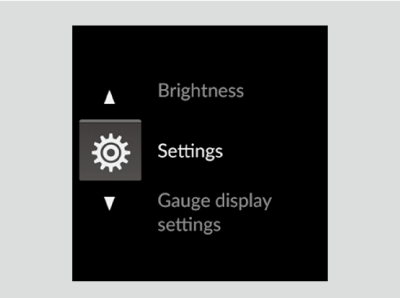

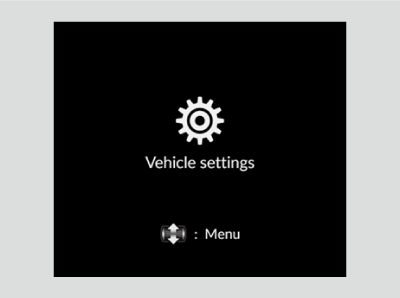

Settings*

Use the driver information interface to customize certain features.

Detail
To customize other features, roll the left selector wheel.

When you customize settings, shift to P.

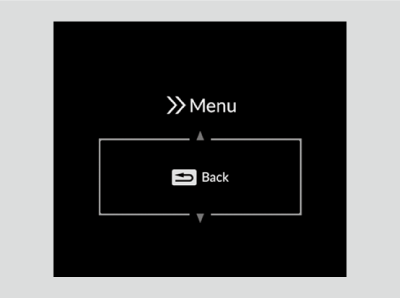

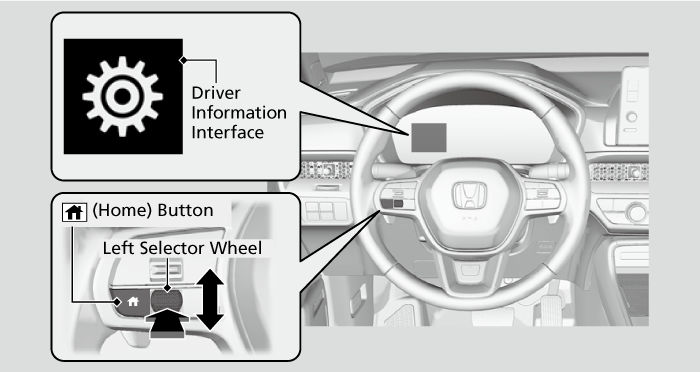

How to customize

Press the (home) button, then select the screen by rolling the left selector wheel while the power mode is in ON, the vehicle is at a complete stop, and the shift position is in P. Then, press the left selector wheel.

List of customizable options

Setup Group
Customizable Features
Description
Selectable Settings
TPMS calibration*
-
Calibrates the TPMS.
Cancel/Calibrate
Driver assist system setup
Forward collision warning distance
Changes the distance at which CMBSTM alerts.
Long/Normal*1/Short
ACC forward vehicle detect beep
Causes the system to beep when a vehicle is detected or when the vehicle is out of ACC with Low Speed Follow range.
ON/OFF*1
Road departure mitigation setting
Changes the setting for the Road Departure Mitigation system.
Narrow/Normal*1/Wide/Warning only
Lane keeping assist suspend beep
Causes the system to beep when the LKAS is suspended.
ON/OFF*1
Blind spot information*
Changes the setting for the blind spot information.
Audible and visual alert*1/Visual alert
  1. Default Setting
Setup Group
Customizable Features
Description
Selectable Settings
Driver assist system setup
Traffic sign recognition system display setting
Turns the traffic sign recognition system on and off.
ON*1/OFF
Traffic sign recognition system exceeding speed warning
Turns the traffic sign recognition system over speed warning on and off.
ON/OFF*1
Speed limit warning threshold setting
Changes at which speed the traffic sign recognition system over speed warning is activated.
Speed limit*1/
Speed limit+3mph
/
Speed limit+5mph/
Speed limit+10mph
(When mph is selected)
Speed limit*1/
Speed limit+5km/h
/Speed limit+10km/h/Speed limit+15km/h
(When km/h is selected)
Driver attention monitor
Changes the setting for the driver attention monitor.
Tactile and audible alert*1/Tactile alert/OFF
  1. Default Setting
Setup Group
Customizable Features
Description
Selectable Settings
Meter setup
Language selection
Changes the displayed language.
English*1/Français/Español
Adjust outside temp. display
Adjusts the temperature reading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)

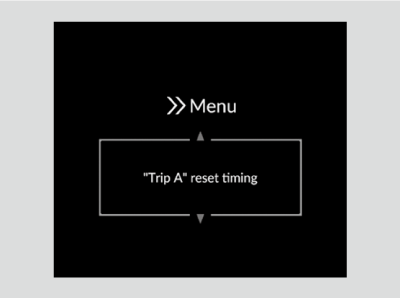

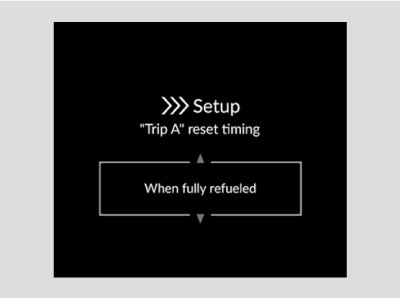

“Trip A” reset timing
Changes the setting of how to reset trip meter A, average fuel economy A, average speed A, and elapsed time A.
When fully refueled/
IGN OFF/Manually reset*1
“Trip B” reset timing
Changes the setting of how to reset trip meter B, average fuel economy B, average speed B, and elapsed time B.
When fully refueled/
IGN OFF/Manually reset*1
Adjust alarm volume
Changes the alarm volume, such as buzzers, warnings, turn signal sound, and so on.
High/Mid*1/Low
Fuel efficiency backlight
Turns the ambient meter feature on and off.
ON*1/OFF
Rear seat reminder
Turns the Rear Seat Reminder feature on and off.
ON*1/OFF
Speed/distance units
Selects the trip meter units.
km/h∙km/mph∙miles*1 (U.S.)
km/h∙km*1/mph∙miles (Canada)
  1. Default Setting
Setup Group
Customizable Features
Description
Selectable Settings
Keyless access setup
Door unlock mode
Changes which doors unlock when you grab the driver’s door handle.
Driver door only*1/All doors
Keyless access light flash
Causes some exterior lights to flash when you unlock/lock the doors.
ON*1/OFF
Keyless access beep
Causes the beeper to sound when you unlock/lock the doors.
ON*1/OFF
Remote start system ON/OFF
Turns the remote engine start feature on and off.
ON*1/OFF
Lighting setup
Auto high-beam
Turns the auto high-beam on and off.
ON*1/OFF
Interior light dimming time
Changes the length of time the interior lights stay on after you close the doors.
60sec/30sec*1/15sec
Headlight auto off timer
Changes the length of time the exterior lights stay on after you close the driver’s door.
60sec/30sec/15sec*1/0sec
Auto light sensitivity*
Changes the timing for the headlights to come on.
Max/High/Mid*1/Low/Min
Auto headlight ON with wiper ON
Changes the settings for the wiper operation when the headlights automatically come on while the headlight switch is in the AUTO position.
ON*1/OFF
  1. Default Setting
Setup Group
Customizable Features
Description
Selectable Settings
Door setup
Auto door lock
Changes the setting for when the doors and the tailgate automatically lock.
With vehicle speed*1/Shift from P/OFF
Auto door unlock
Changes the setting for when the doors and the tailgate automatically unlock.
All doors when driver’s door opens*1/All doors when shifted to Park/
All doors when ignition switched OFF
/OFF
Walk away auto lock
Changes the settings for the automatic locking the doors when you walk away from the vehicle while carrying the keyless remote.
ON/OFF*1
Keyless lock answer back
LOCK/UNLOCK - The exterior lights flash.
LOCK (2nd push) - The beeper sounds.
ON*1/OFF
Keyless remote power window control
Turns remote window control using the keyless remote on and off.
ON*1/OFF
Lockout prevention
Changes the settings for the lockout protection function.
ON*1/OFF
Lock presetting
Changes the settings for the Lock Presetting function.
ON*1/OFF
  1. Default Setting
Setup Group
Customizable Features
Description
Selectable Settings
Power tailgate setup*
Keyless open mode
Changes the keyless setting for when the power tailgate opens.
Anytime*1/When Unlocked
Power open by outer handle
Changes the setting to open power tailgate by tailgate outer handle.
OFF (Manual only)/ON (Power/Manual)*1
Maintenance reset
-
Resets the Maintenance MinderTM display when you have performed the maintenance service.
(Selects Reset Items)
Default all
-
Cancels customized changes you have made or restores them to their default setting.
Cancel/Set
  1. Default Setting

Example of customization settings

The steps for changing the “Trip A” reset timing setting to When fully refueled are shown below. The default setting for “Trip A” reset timing is Manually reset.

  1. Press the (home) button and roll the left selector wheel to select screen, then press the left selector wheel.
  1. Roll the left selector wheel until Meter setup appears on the display.
  2. Press the left selector wheel.
  1. Roll the left selector wheel until “Trip A” reset timing appears on the display, then press the left selector wheel.
    • The display switches to the customization setup screen, where you can select When fully refueled, IGN OFF, Manually reset, or Back.
  1. Roll the left selector wheel and select When fully refueled, then press the left selector wheel.
    • The display will return to the customization menu screen.
  1. Press the left selector wheel after Back appears on the display.
  2. Repeat Step 6 until you return to the normal screen.

* Not available on all models

Recommended topic(s)
