System Operation

The system activates when your vehicle is moving forward at about 20 mph (32 km/h) or above.

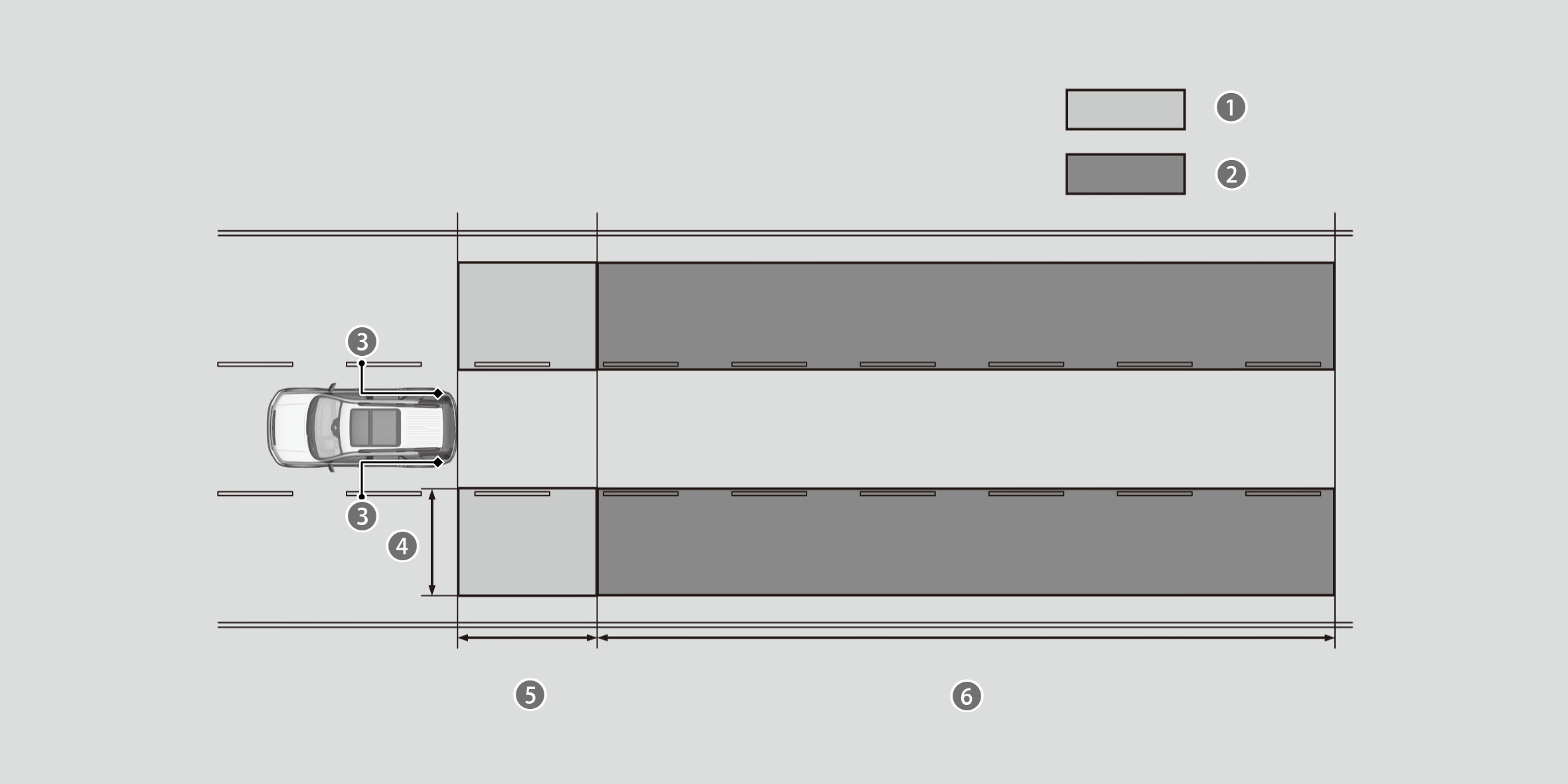

  • Alert zone 1

  • Alert zone 2

  • Radar Sensors: Underneath the rear bumper corners

  • Approx. 1.6 ~ 10 feet (0.5 ~ 3 meters) from vehicle side.

  • Approx. 10 feet (3 meters) from rear bumper.

  • Approx. 10 ~ 82 feet (3 ~ 25 meters) behind from rear bumper. (The faster the approaching vehicle, the further away it will be detected.)

  1. The initially set alert zone is alert zone 1. Over time, after the vehicle has been driven on straight roads with traffic and roadside objects, the system will adapt and expand the alert zones (alert zone 1 and 2).
  2. If the rear bumper or any system components are repaired, the system will revert to alert zone 1 only until it is able to adapt and expand to alert zone 1 and 2.

Blind Spot Information System On and Off

You can turn the system on and off using the driver information interface.

Switching the Display

Safety Support

  1. The blind spot information system will stay on the previously selected on or off setting each time you start the engine.

Turn the system off when towing a trailer. The system may not work properly for the following reasons:
  1. The added mass tilts the vehicle and changes the radar coverage.
  2. The trailer itself can be detected by the radar sensors, causing the blind spot information system alert indicator to come on.
