Driver Information Interface Right Side Area

Switching the Display

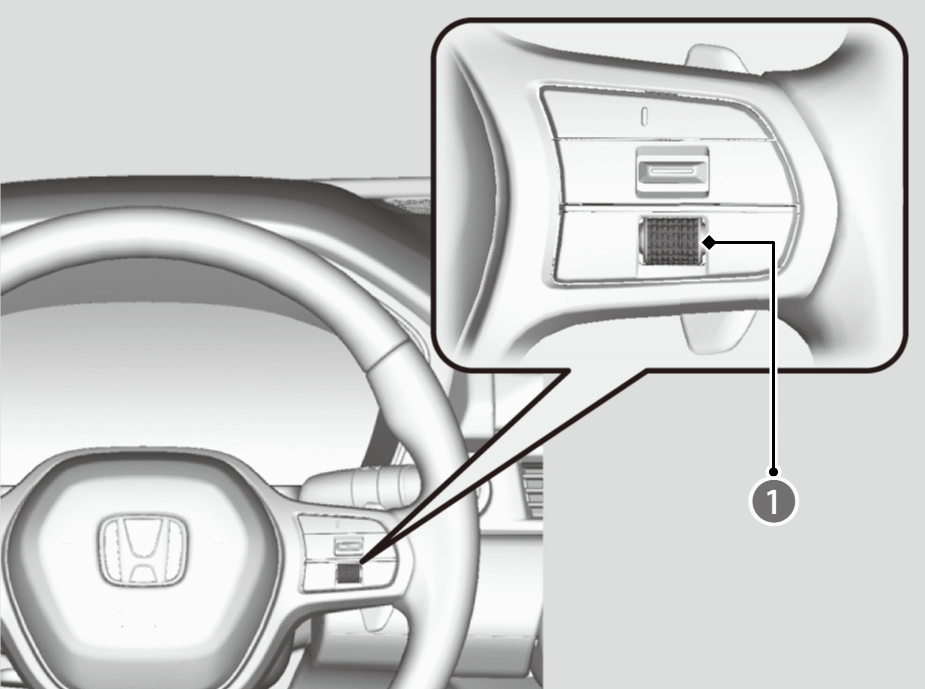

  • Right Selector Wheel

Roll the right selector wheel to view different types of content.

  1. You can add or delete the meter contents.

    Gauge Display Settings

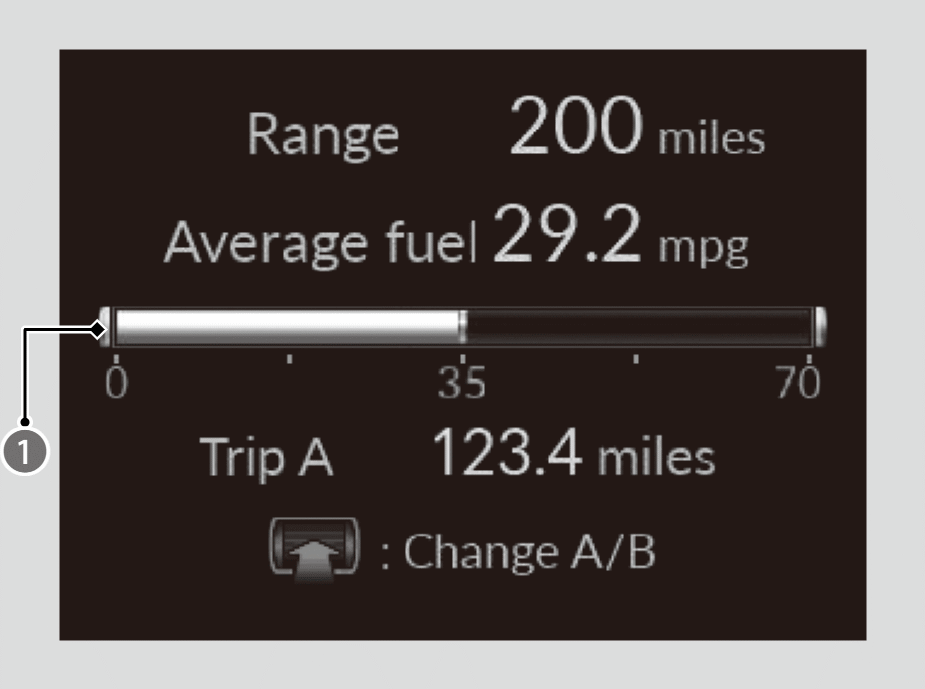

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated distance is based on the vehicle’s current fuel economy.

  1. The driving range displayed is only an estimate and may differ from the actual distance the vehicle can travel.

Average Fuel Economy

Shows the average fuel economy for trip meters A and B in set intervals.

  1. The average fuel economy displayed may differ from the amount consumed while actually driving.
  2. If it was reset while parked or driving at a low speed, calculation of fuel consumption will start after you resume normal driving.

Instant Fuel Economy

  • Instant Fuel Economy

Shows the instant fuel economy as a bar graph.

Trip Meter

Shows the total distance driven since the last reset. Press the right selector wheel to switch between trip meter A and trip meter B. Meters A and B can be used to measure two separate trips.

  1. To reset the trip meter, display it, press and hold the right selector wheel, and then select Reset. The trip meter is reset to 0.0. Additionally, average fuel economy, average speed, and elapsed time will also be reset.
  2. When the trip meter exceeds 9999.9 miles or kilometers, it resets to 0.0.

The trip meter can reset automatically after refueling.

Customized Features

Average Speed

Shows the average speed since Trip A or Trip B was reset.

Elapsed Time

Shows the time elapsed since Trip A or Trip B was reset.

Navigation

Maps

Shows Google Maps screen.

Google Maps

Compass/Turn-by-Turn Direction

The compass screen and turn-by-turn directions appear based on the driving guidance provided by Apple CarPlay or Android Auto.

Apple CarPlay

Android Auto™

  1. Navigation features may not be available for all devices or apps.

You can select whether to have the turn-by-turn display come on or not during the route guidance.

Customized Features

Driver Attention Monitor

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is being driven in a manner consistent with drowsy or inattentive driving. If it determines that the vehicle is being driven in such a manner, it will display the degree of the driver’s attention on the driver information interface.

  • Level

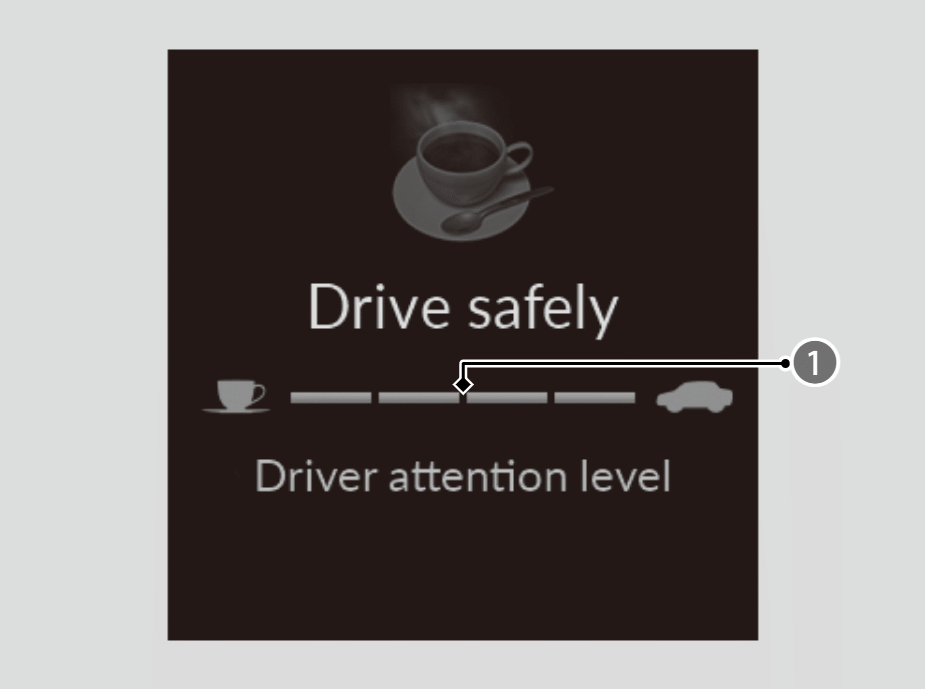

When you select Driver attention on the driver information interface, bars on it light up in white to indicate the degree of the driver’s attention.

Switching the Display

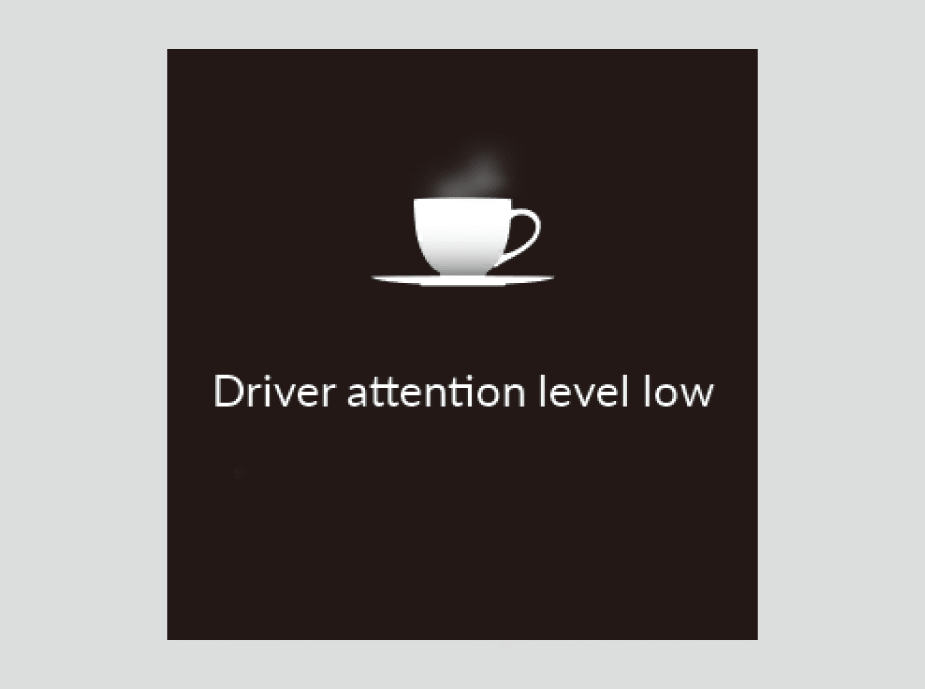

If two bars light up, the Driver attention level low message will appear.

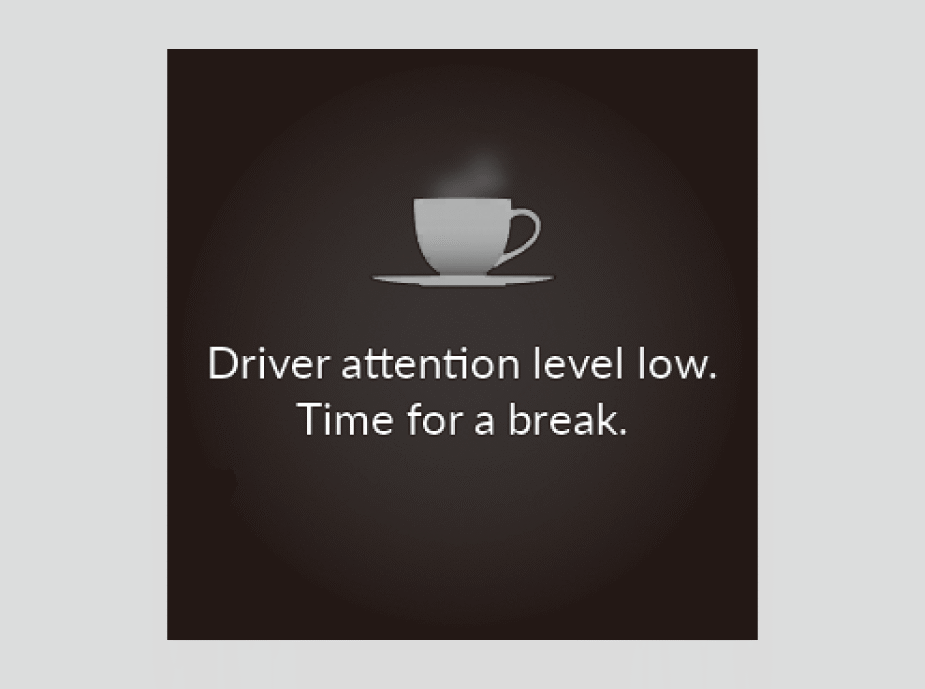

If one bar lights up, the Driver attention level low. Time for a break. message will appear, a beep will sound, and the steering wheel will vibrate.

If this message appears, stop in a safe location and rest for as long as needed.

The message will disappear when the right selector wheel is rolled or when the system has determined that the driver is driving normally.

If the driver does not take a break and the monitor continues to detect that the driver is very tired, the message will appear again after approximately 15 minutes, accompanied by a beep and steering wheel vibrations.

The message does not appear when the traveling time is 30 minutes or less.

  1. The Driver Attention Monitor cannot always detect if the driver is tired or inattentive.
  2. Regardless of the system’s feedback, if you are feeling tired, stop in a safe location and rest for as long as needed.

You can change the system settings.

Customized Features

The Driver Attention Monitor resets when:

  1. The engine is turned off.
  2. The driver unfastens the seat belt and opens the door while the vehicle is stopped.

For the Driver Attention Monitor to function:

  1. The vehicle must be traveling above 25 mph (40 km/h).
  2. The electric power steering (EPS) system indicator must be off.
  3. The bars on the driver information interface remain grayed-out unless the Driver Attention Monitor is functioning.

Depending on driving conditions or other factors, the Driver Attention Monitor may not function in the following circumstances:

  1. The steering assist function of the Lane Keeping Assist System (LKAS) or Traffic Jam Assist is active.

    About LKAS

    About Traffic Jam Assist

  2. The condition of the road is poor; e.g., the surface is unpaved or bumpy.
  3. It is windy.
  4. The driver is frequently operating the vehicle in an assertive manner, such as changing lanes or accelerating.

AWD Torque Distribution Monitor

The indicators on the display show the amount of torque being transferred to the right front, left front, right rear, and left rear wheels.

Intelligent Variable Torque Management (i-VTM4™) AWD System

Pitch and Roll

Shows the pitch and roll status.

  1. This Pitch/Roll gauge is intended for reference when the vehicle is not moving.  If the vehicle is moving, G inputs will affect the accuracy of the displayed angle.
  2. This display will automatically be shown when the TRAIL mode is selected.  It is also user selectable when in any drive mode.

    Drive Mode System

Seat Belts

Occurs, under specified conditions, when seat belts are latched or unlatched.

Seat Belt Reminder

Maintenance

Shows the remaining oil life and Maintenance Minder™.

About Maintenance Minder™

Tire Pressure Monitor

Shows each tire’s pressure.

Tire Pressure Monitoring System (TPMS) with Tire Fill Assist

Safety Support

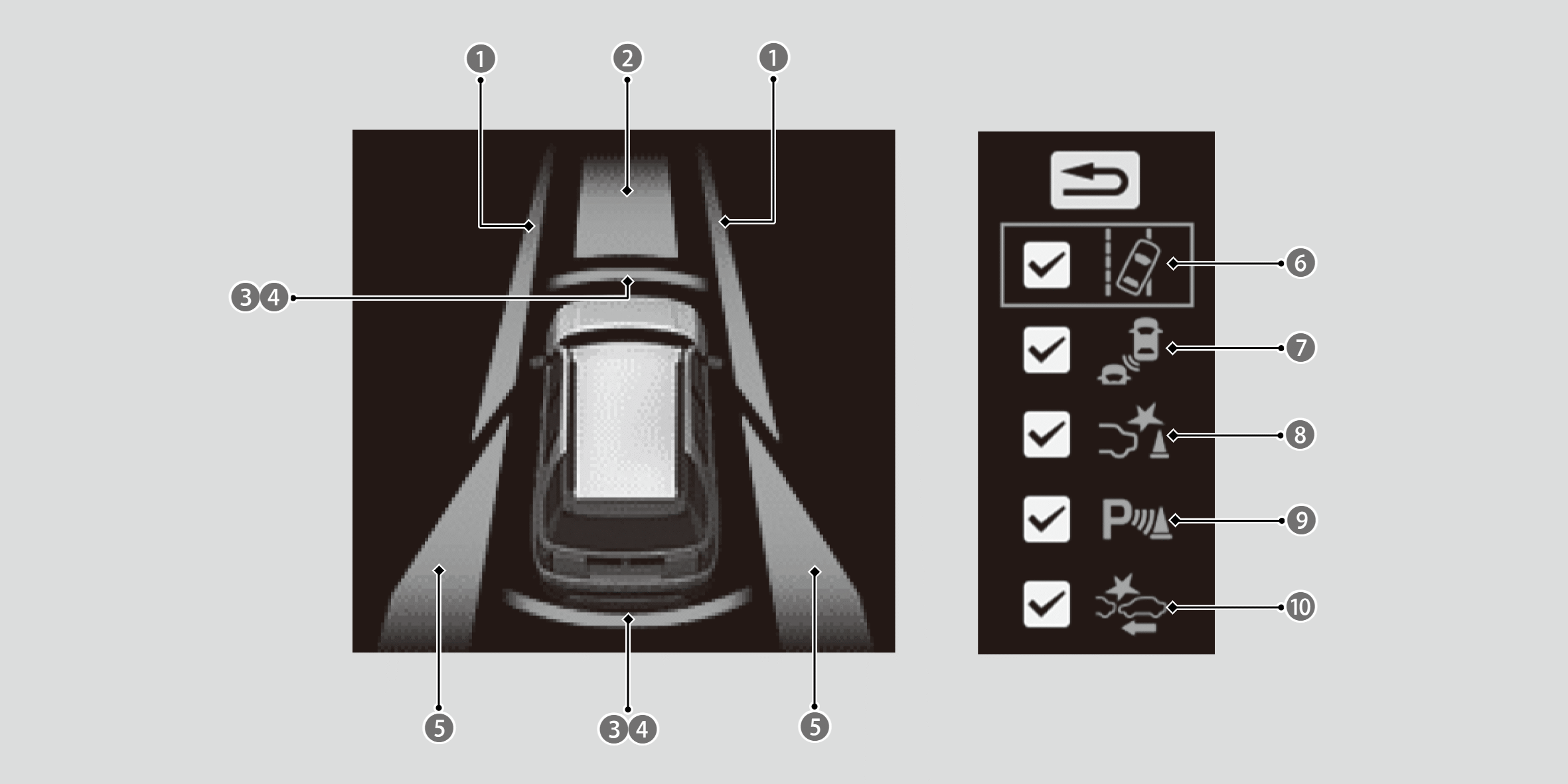

Safety Support indicates the operating status of the following systems.

  • Operating Status for Road Departure Mitigation System

  • Operating Status for CMBS™

  • Operating Status for Low Speed Braking Control

  • Operating Status for Parking Sensor System

  • Operating Status for Blind Spot Information System

  • Road Departure Mitigation System

  • Blind Spot Information System

  • Low Speed Braking Control

  • Parking Sensor System

  • CMBS™

The following colors indicate the status of any of the above-mentioned systems:

- Green: The system is on.

- Gray: The system is off.

- Amber: There is a problem with the system.

  1. To turn each system on or off, first press the right selector wheel to switch displays. From the next display, you can select which system to turn on or off.

    About Road Departure Mitigation System

    About Blind Spot Information System

    About Low Speed Braking Control

    About Collision Mitigation Braking System™(CMBS™)

    About Parking Sensor System

  2. When all features are ON, thesafety support indicator lights up in green. It lights up in green/gray when one or some of the features are ON, and it lights up in gray when all features are OFF.
  3. See below if the indicator lights up in amber.

    Safety Support Indicator (Amber)

  4. Even when the Low Speed Braking Control icon is green, if the Rear Sensor Setting is turned off, the brake assist will not operate when reversing.

    Customized Features

  5. Even when the parking sensor system icon is green, if the Rear Sensor Setting is turned off, the rear parking sensor will not operate when reversing.

    Customized Features

Brightness Setting

Display the adjustment for instrument panel brightness.

When the power mode is in ON, you can use the right selector wheel to adjust instrument panel brightness.

  1. Brighten: Roll the right selector wheel up.
  2. Dim: Roll the right selector wheel down.

Press the right selector wheel to exit.

  1. The brightness of the gauge is automatically adjusted depending on the ambient brightness.
    1. The brightness decreases when the ambient light is dark.
    2. The brightness increases when the ambient light is bright.
  2. You can change the setting even when the ambient lighting is bright, but the brightness of the gauge won’t change.

Vehicle Stability Assist Mode

You can turn the VSA® on or off.

Roll the right selector wheel to scroll to select Reduce traction control, then press the right selector wheel to check or uncheck it.

Vehicle Stability Assist™ (VSA®), aka Electronic Stability Control (ESC), System

Gauge Display Settings

Speed/distance units

Enables you to set the displayed measurements to read in either miles and mph or km and km/h.

  1. Press the right selector wheel when you select the Gauge display settings on the driver information interface.
  2. Roll the right selector wheel to scroll to select Speed/distance units, then press the right selector wheel.
  3. Roll the right selector wheel to scroll to select your desired settings, then press the right selector wheel.

Arrange content on the right side area

You can choose which contents to display on the right side area.

  1. Press the right selector wheel when you select the Gauge display settings on the driver information interface.
  2. Roll the right selector wheel to scroll to select Hide/show, then press the right selector wheel.
  3. Roll the right selector wheel to scroll between contents, then press the right selector wheel to check or uncheck them.
  1. Contents that are gray cannot be removed from the right side area.
  2. When you customize settings, shift to P.

Change gauge design

You can change the gauge design.

  1. Press the right selector wheel when you select the Gauge display settings on the driver information interface.
  2. Roll the right selector wheel to scroll to select Gauge design, then press the right selector wheel.
  3. Roll the right selector wheel to scroll to select your desired settings, then press the right selector wheel.
  1. When using the Round minimal or Bar minimal gauge design, a simplified display is used when ACC with Low Speed Follow is in operation.

Warnings

You can check if there are any active warning messages.

  1. If there are multiple warnings, you can roll the right selector wheel to see other warnings.
  2. When there is a warning message, thesystem message indicator lights up.
