Locking/Unlocking the Doors from the Outside

Detail
If the interior light switch is in the door activated position, the interior light comes on when you unlock the doors and tailgate.
No doors opened: The light fades out after 30 seconds.
Doors and tailgate relocked: The light goes off immediately.

Using the Keyless Access System

When you carry the keyless remote, you can lock/unlock the doors, tailgate, and fuel fill door.

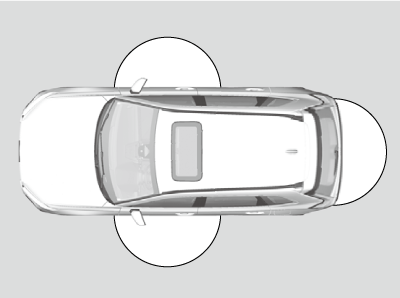

You can lock/unlock the doors, fuel fill door, and tailgate, within a radius of about 32 inches (80 cm) from the outside door handle or tailgate outer handle.
Detail
If you do not open a door or the tailgate within 30 seconds of unlocking the vehicle with the keyless access system, the doors and tailgate will automatically relock.

You can lock or unlock doors using the keyless access system only when the power mode is in VEHICLE OFF.

  • Do not leave the keyless remote in the vehicle when you get out. Carry it with you.
  • Even if you are not carrying the keyless remote, you can lock/unlock the doors and tailgate while someone else with the keyless remote is within range.
  • The door may be unlocked if the door handle is covered with water in heavy rain or in a car wash if the keyless remote is within range.
  • If you grip a front door handle or touch a door lock sensor wearing gloves, the door sensor may be slow to respond or may not respond by locking or unlocking the doors.
  • After locking the door, you have up to 2 seconds during which you can pull the door handle to confirm whether the door is locked. If you need to unlock the door immediately after locking it, wait at least 2 seconds before gripping the handle, otherwise the door will not unlock.
  • The door might not open if you pull it immediately after gripping the door handle. Grip the handle again and confirm that the door is unlocked before pulling the handle.
  • Even within the 32 inches (80 cm) radius, you may not be able to lock/unlock the doors and the tailgate with the keyless remote if it is above or below the outside handle.
  • The keyless remote may not operate if it is too close to the door, door glass, and tailgate.

The light flash, beep, and door unlock mode settings can be customized using the audio/information screen or driver information interface.

Models with power tailgate
You can also unlock and open with the power tailgate.

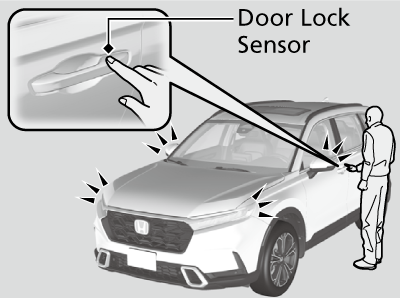

Locking the doors and tailgate

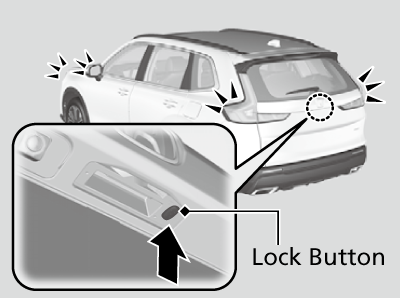

Touch the door lock sensor on the front door or press the lock button on the tailgate.

  • All the doors and tailgate lock and the security system sets.
  • Some exterior lights flash once and the beeper sounds once.

Unlocking the doors and tailgate

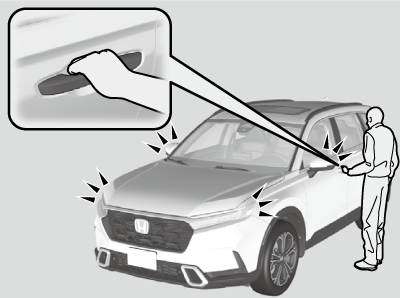

Grab the driver’s door handle:
  • The driver’s door and fuel fill door unlock.
  • Some exterior lights flash twice and the beeper sounds twice.
Grab the front passenger’s door handle:
  • All the doors and tailgate unlock.
  • Some exterior lights flash twice and the beeper sounds twice.

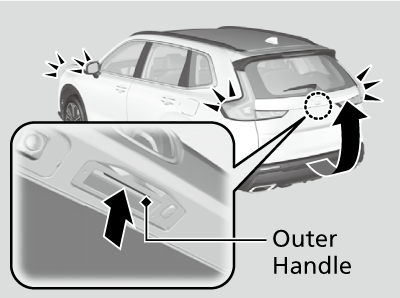

Press the tailgate outer handle:

Locking the doors and tailgate (Walk away auto lock®)

When you walk away from the vehicle with all doors and tailgate closed while carrying the keyless remote, the doors, tailgate and fuel fill door will automatically lock.

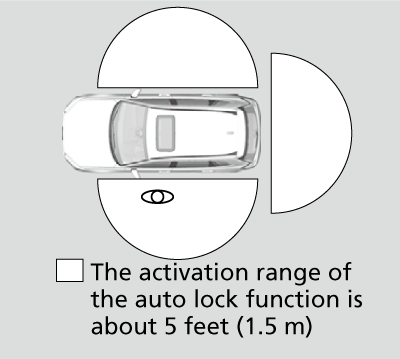

The auto lock function activates when all doors and tailgate are closed, or all doors are closed and tailgate begins power close operation*, and the keyless remote is within about 5 feet (1.5 m) radius of the outside door handle or tailgate outer handle.

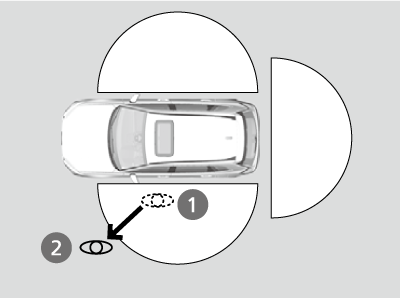

Exit vehicle while carrying keyless remote and close door(s) and tailgate.

  1. While within about 5 feet (1.5 m) radius of the vehicle.
    • The beeper sounds; the auto lock function will be activated.
  2. Carry the keyless remote beyond about 5 feet (1.5 m) from the vehicle and remain outside this range for 2 or more seconds.
    • Some exterior lights flash; the beeper sounds; all doors and tailgate will then lock.

To temporarily deactivate the function:

  1. Set the power mode to OFF.
  2. Open the driver’s door.
  3. Using the master door lock switch, operate the lock as follows:Lock Unlock Lock Unlock.
    • The beeper sounds, and the function is deactivated.

To restore the function:

  • Set the power mode to ON.
  • Lock the vehicle without using the auto lock function.
  • With the keyless remote on you, move out of the auto lock function operation range.
  • Open any door.
Detail
The auto lock function is set to OFF as the factory default setting. The auto lock function can be set to ON using the audio/information screen or driver information interface. If you set the auto lock function to ON using the audio/information screen or driver information interface, only the remote transmitter that was used to unlock the driver’s door prior to the setting change can activate auto lock.

After the auto lock function has been activated, when you stay within the locking/unlocking operation range, the indicator on the keyless remote will continue to flash until the doors and tailgate are locked.


When you stay beside the vehicle within the operation range, the doors and tailgate will automatically lock approximately 30 seconds after the auto lock function activating beeper sounds.

When you open a door or tailgate after the auto lock function activating beeper sounds, the auto lock function will be canceled.

Under the following circumstances, the auto lock function will not activate:
  • The keyless remote is inside the vehicle.
  • The beeper will not sound.
  • The keyless remote is taken out of its operational range before all doors and tailgate are closed.
  • The beeper will sound.

The auto lock function does not operate when any of the following conditions are met.
  • The keyless remote is inside the vehicle.
  • A door, tailgate or the hood is not closed.
  • The power mode is set to any mode other than OFF.
  • The keyless remote is not located within a radius of about 5 feet (1.5 m) from the vehicle when you get out of the vehicle and close the doors and tailgate.

Auto lock function operation stop beeper
After the auto lock function has been activated, the auto lock operation stop beeper sounds for approximately two seconds in the following cases.
  • The keyless remote is put inside the vehicle through a window.
  • You are located too close to the vehicle.
  • The keyless remote is put inside the tailgate.

If the warning beeper sounds, check that you are carrying the keyless remote. Then, open/close a door and confirm the auto lock activation beeper sounds once.

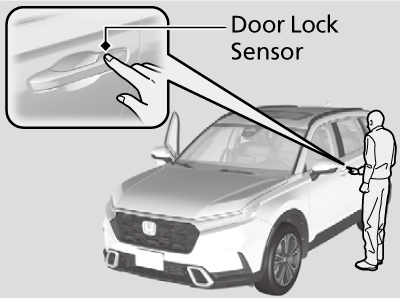

Lock Presetting

The vehicle will automatically lock after you lock the doors in advance then close the doors and tailgate.
Activate lock presetting after closing the driver’s door.

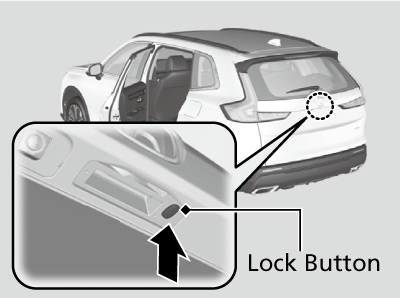

  1. Touch the door lock sensor on the front door, press the lock button on the tailgate or press the lock button on the keyless remote.
    • Alert sounds and lock presetting is activated.
  1. Close all doors and the tailgate.
    • Some exterior lights flash and a beeper sounds when vehicle locks.

Make sure the doors and tailgate are locked before moving away from the vehicle.

WARNING

Opening or closing the power tailgate* on someone’s hands or fingers can cause serious injury. Make sure all hands and fingers, especially children’s, are clear of the doors.

Detail
Lock presetting will be reset if a door or the tailgate is opened before the vehicle has locked completely.

Before locking a door, make sure that the key is not inside the vehicle.

You can turn this function on and off.

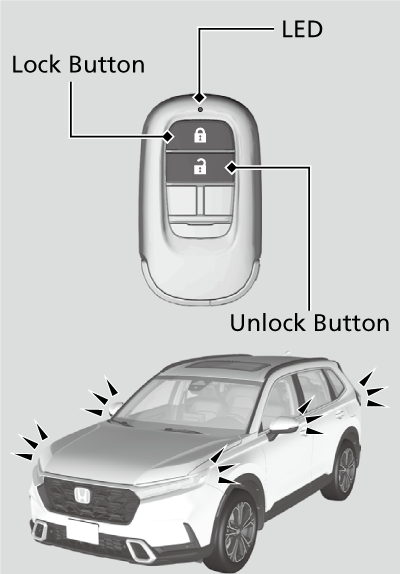

Using the Remote Transmitter

Locking the doors and tailgate

Press the lock button.

Once:
  • Some exterior lights flash, all the doors, tailgate, and fuel fill door lock, and the security system sets.
Twice (within five seconds after the first push):
  • The beeper sounds and verifies the security system is set.

Unlocking the doors and tailgate

Press the unlock button.

Once:
  • Some exterior lights flash twice, and the driver’s door and fuel fill door unlocks.
Twice:
  • The remaining doors and tailgate unlock.
Detail
If you do not open a door or the tailgate within 30 seconds of unlocking the vehicle with the remote transmitter, the doors and tailgate will automatically relock.

You can lock or unlock doors using the remote transmitter only when the power mode is in VEHICLE OFF.

The remote transmitter uses low-power signals, so the operating range may vary depending on the surroundings.

If the distance at which the remote transmitter works varies, the battery is probably low.
If the LED does not come on when you press a button, the battery is dead.

Unlocking the Doors Using a Key

If the unlock button of the keyless remote does not work, use the built-in key instead. The keyhole is on the back of the door handle.

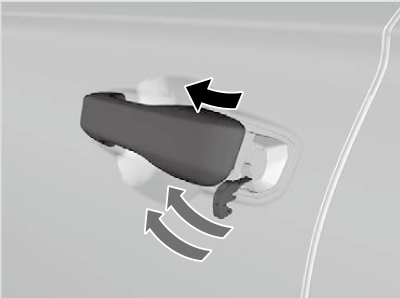

Insert the built-in key into the key cylinder from below the handle and then turn it.

Detail
When unlocking, the driver’s door unlocks first. Turn the key a second time within a few seconds to unlock the remaining doors and the tailgate.

If the lock button of the keyless remote does not work, refer to the following.

Locking a Door Without Using a Key

If you do not have the key on you, or if for some reason you cannot lock a door using the key, you can lock the door without it.

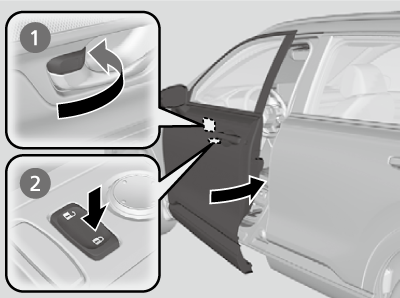

Locking the front door

Push the lock tab forward 1 or push the master door lock switch in the lock direction 2, and close the door.

Locking the rear doors

Push the lock tab forward and close the door.

Lockout protection function

If the vehicle cannot detect the keyless remote, lockout protection activates.

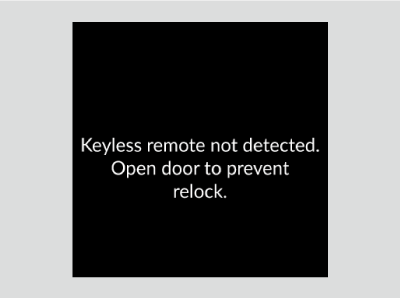

  • A beeper sounds, some exterior lights flash, the doors unlock, and a message appears on the driver information interface.
  • This allows you to open a door in case the keyless remote is still inside the vehicle.

If you do not open a door, all doors relock after 15 seconds.

To avoid non-detection, make sure to keep the keyless remote away from cell phones and other devices that may cause signal interference.

Detail
When you lock the driver’s door, all the other doors, tailgate, and fuel fill door lock at the same time.

Before locking a door, make sure that the key is not inside the vehicle.

You can change the lockout protection operation setting.

* Not available on all models
