Wipers and Washers

Detail

NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get scratched, or the rubber blades will get damaged.

NOTICE
In cold weather, the blades may freeze to the windshield.
Operating the wipers in this condition may damage the wipers. Use the defogger or heated windshield* to warm the windshield, then turn the wipers on.

NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.


Models with intermittent time adjustment ring
If the vehicle speeds up while the wipers are operating intermittently, the length of the wipe interval shortens.
When the vehicle speeds up, the wiper operation’s shortest delay setting () and the LO setting become the same.

If the wipers stop operating due to an obstacle such as the buildup of snow, park the vehicle in a safe place. Rotate the wiper switch to OFF, and set the power mode to ACCESSORY or VEHICLE OFF, then remove the obstacle.

The wiper motor may stop motor operation temporarily to prevent an overload. Wiper operation will return to normal within a few minutes.

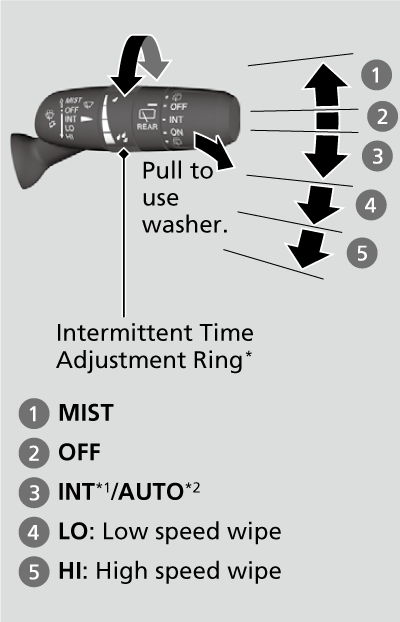

Windshield Wiper/Washer

The windshield wipers and washers can be used when the power mode is in ON.

MIST

The wipers run at high speed until you release the lever.

Wiper switch (OFF, INT*1, AUTO*2, LO, HI)

Move the lever up or down to change the wiper settings.

Adjusting wiper operation*

Turn the adjustment ring to adjust the wiper operation.

Washer

Sprays while you pull the lever toward you. When you release the lever for more than one second, the spray stops, the wipers sweep two or three more times to clear the windshield, then stop.

  1. Models with manual intermittent operation
  2. Models with automatic intermittent operation

Automatic Intermittent Wipers*

When you push the lever down to AUTO, the windshield wipers sweep once, and go into the automatic mode.

The wipers operate intermittently, at low speed, or at high speed and stop in accordance with the amount of rainfall the rainfall sensor detects.

AUTO sensitivity adjustment

When the wiper function is set to AUTO, you can adjust the sensitivity of the rainfall sensor (using the adjustment ring) so that wipers will operate in accordance with your preference.

Sensor sensitivity

Detail

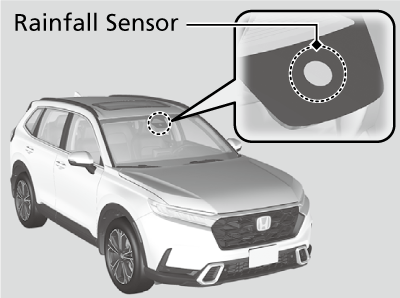

The rainfall sensor is in the location shown below.


NOTICE
AUTO should always be turned OFF before the following situations in order to prevent severe damage to the wiper system:

  • Cleaning the windshield
  • Driving through a car wash
  • No rain present

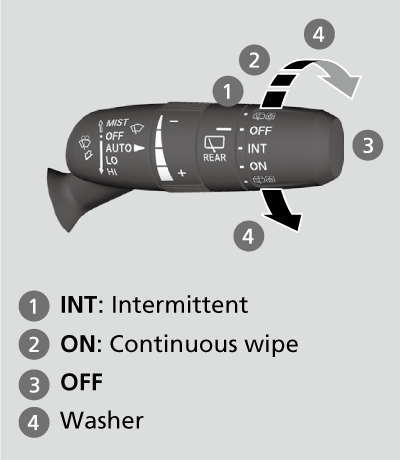

Rear Wiper/Washer

The rear wiper and washer can be used when the power mode is in ON.

Wiper switch (OFF, INT, ON)

Change the wiper switch setting according to the amount of rain.

Washer ( , * )

Sprays on the rear window and rearview camera* while you rotate the switch to this position.
Hold it to activate the rear wiper and to spray the washer. Once released, the washer spray will stop and the rear wiper will return to its selected switch setting after a few sweeps.

Operating in reverse

When you put the transmission into R with the windshield wipers activated, the rear wiper operates automatically as follows even if its switch is off.

Front Wiper Position
Rear Wiper Operation
INT*1 (Intermittent)
AUTO*2 (Intermittent)
Intermittent
LO (Low speed wipe)
HI (High speed wipe)
Continuous
  1. Models with manual intermittent operation
  2. Models with automatic intermittent operation

* Not available on all models
