Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and check to see if any applicable fuse is blown.

Engine Compartment Fuse Box

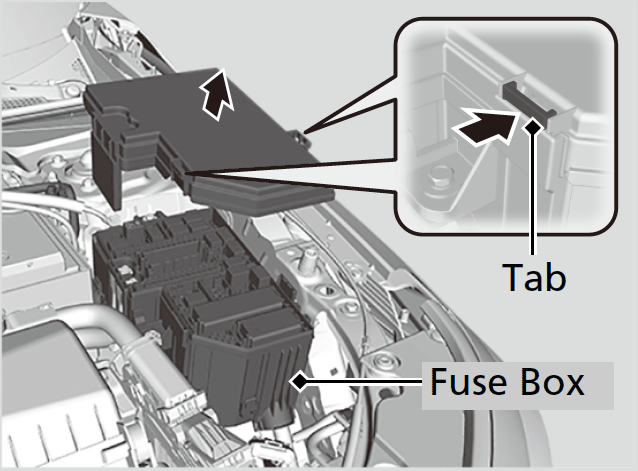

Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.



Circuit protected and fuse rating
Circuit Protected
Amps
1
BATTERY
150 A*1
125 A*2
2
—
40 A
—
40 A
F/BOX OPTION
60 A
—
40 A
F/BOX OPTION2*
(40 A)*1
40 A*2
DC/DC2*
(30 A)
F/BOX MAIN
60 A
3
—
40 A
—
40 A
—
40 A
RR DEFROSTER
40 A
—
40 A
HTR MTR
40 A
—
40 A
4
—
30 A
ABS/VSA MTR
40 A
DC/DC*
(30 A)
—
30 A
IG MAIN
30 A
—
30 A
R/M2
30 A
5
ST MAGNETIC SW
30 A
WIPER
30 A
EPS
70 A
R/M1
RFC
30 A*1
50 A*2
ABS/VSA FSR
40 A
MAIN FAN*1
R/M1*2
30 A
F/BOX MAIN2
40 A
6
SUB FAN
—
30 A*1
—*2
7
IG MAIN2
30 A*2
8
—
ACTIVE EXHAUST VALVE
—*1
7.5 A*2
9
—
EVP*
—*1
(30 A)*2
10
—
AUDIO SUB
—*1
(7.5 A)*2
11
—
—
12
—
—
13
H/STRG*
(10 A)
14
—
—
15
—
FR FOG*
—*1
(10 A)*2
16
MG CLUTCH
(10 A)
17
WASHER
15 A
18
HORN
10 A
19
BACK UP
15 A
20
—
AUDIO
—*1
(15 A)*2
21
—
RFC RLY CL+
—*1
7.5 A*2
22
DBW
15 A
23
EOP*
(20 A)
24
BACKUP FI-ECU
10 A
25
IGP
15 A
26
TCU*
(15 A)
27
LCM L
(15 A)
28
INJ
—
15 A*1
—*2
29
STOP
10 A
30
LCM R
(15 A)
31
IG COIL
15 A
32
EVTC
—
20 A*1
—*2
33
HAZARD
15 A
34
—
AUDIO SUB VST
—*1
(7.5 A)*2
35
—
—
36
AUDIO VST MAIN*
(30 A)
  1. Continuously variable transmission models
  2. Manual transmission models
Circuit Protected
Amps
37
BACKUP2
—
(30 A)*1
—*2
38
—
—
39
—
—
40
—
VBACT*
—*1
(10 A)*2
41
IGPS [LAF]
10 A
42
IG1 MON2*
7.5 A*1
(7.5 A)*2
43
—
—*2
44
BACKUP2*
(30 A)*2
  1. Continuously variable transmission models
  2. Manual transmission models

Interior Fuse Box

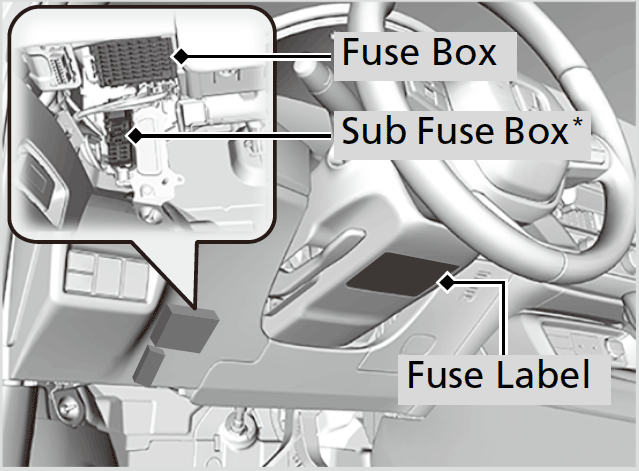

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.



Circuit protected and fuse rating
Circuit Protected
Amps
1
P/W DR
20 A
2
P/W AS
20 A
3
P/W RR R
20 A
4
P/W RR L
20 A
5
OPTION
10 A
6
SRS
10 A
7
T/G MTR / TRUNK ACT
10 A
8
—
—
9
FR ACC SOCKET
20 A
10
DOOR LOCK
20 A
11
METER
10 A
12
OPTION3 (ST CUT)
10 A
13
OPTION2 (RR WIP)
(10 A)
14
OPTION6 (VB SOL)
10 A
15
DR DOOR UNLOCK
(10 A)
16
SUNROOF*
(20 A)
17
SBW1*
(10 A)
18
—
—
19
—
—
20
RR FOG*
(10 A)
21
CARGO ACC SOCKET*
(20 A)
22
SMART
10 A
23
DR DOOR LOCK
(10 A)
24
SBW2*
(7.5 A)
25
10 A
26
SRS
10 A
27
ACG / D/V / ST CUT RLY
20 A
28
OPTION5
10 A
29
FUEL PUMP
15 A
30
L SIDE DOOR UNLOCK
10 A
31
R SIDE DOOR UNLOCK
10 A
32
—
—
33
—
—
34
—
—
35
—
—
36
OPTION3 (SUNSHADE)*
(20 A)
37
IGA2*
(15 A)
38
—
—
39
R SIDE DOOR LOCK
10 A
40
P/SEAT REC / RR HI*
(20 A)
41
P/SEAT SLIDE / FR HI*
(20 A)
42
—
BACK LT
—*1
(10 A)*2
43
A/C
10 A
44
DRL
10 A
45
ACC
10 A
46
ACC KEY LOCK
10 A
47
L SIDE DOOR LOCK
10 A
48
H/SEAT*
20 A
49
AS P/SEAT REC*
(20 A)
50
P/LUMBAR DR*
(10 A)
51
P/LUMBAR AS*
(10 A)
52
RR H/SEAT*
(20 A)
53
AS P/SEAT SLI*
(20 A)
54
OPTION1 / FUEL LID
10 A
55
AUDIO AMP*
(30 A)
56
ADS*
(30 A)
Sub Fuse Box
Circuit Protected
Amps
A
BACKUP2 MAIN
(10 A)*1
B
AUDIO SUB VST*
(7.5 A)*1
C
ACC VST
(10 A)*1
D
VST 1
(10 A)*1
E
AUDIO VST
(15 A)*1
F
EOP*
(20 A)*1
G
—
—*1
H
VST 2
(10 A)*1
  1. Continuously variable transmission models
  2. Manual transmission models

* Not available on all models


Inspecting and Changing Fuses

  1. Set the power mode to VEHICLE OFF.
    Turn headlights and all accessories off.
  2. Remove the fuse box cover.

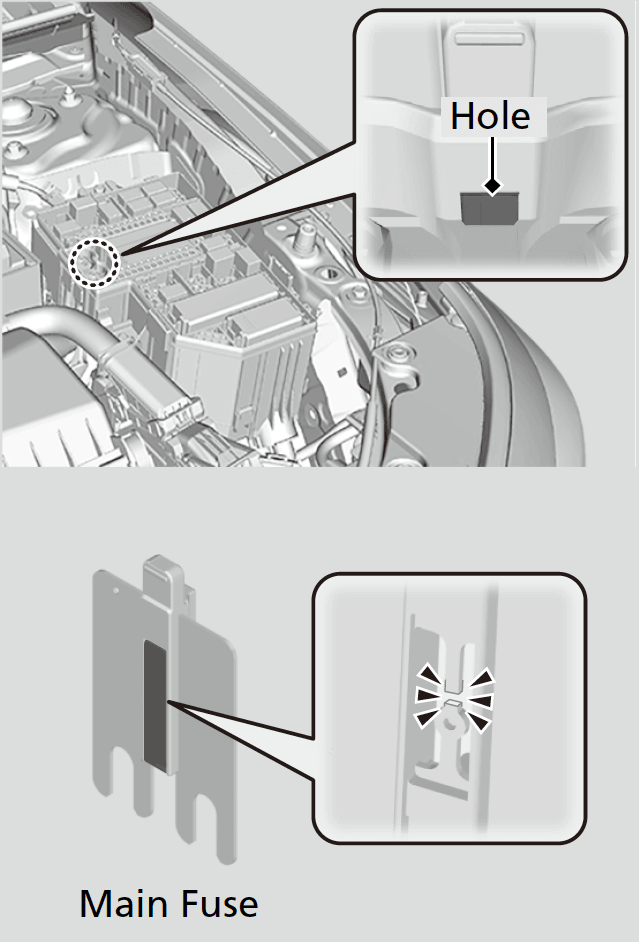

  3. Check the main fuse in the engine compartment fuse box.
    • Look at the fuse through the hole.
    • If the fuse is blown, have it replaced by a dealer.

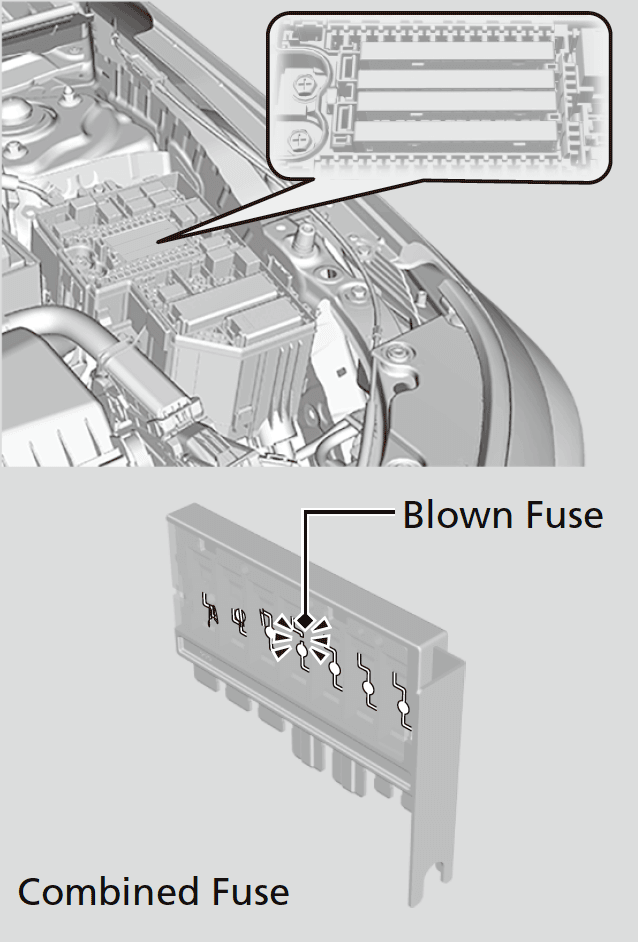

  1. Check the combined fuses in the engine compartment fuse box.
    • Look into the space between the fuses.
    • If the fuse is blown, have it replaced by a dealer.
  1. Inspect the small fuses in the engine compartment and the vehicle interior.

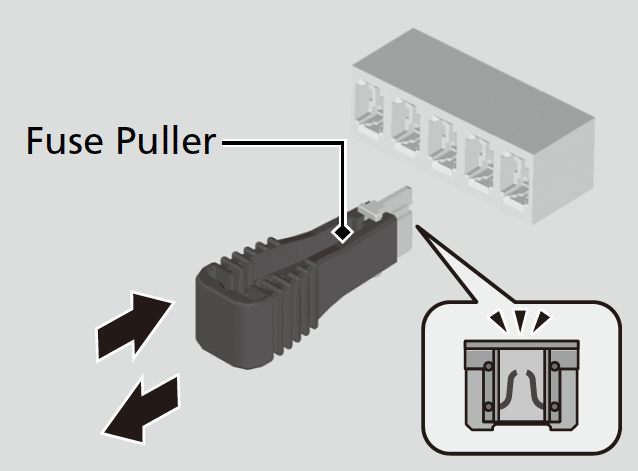

    • If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
Detail

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.


Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.

Replace with a fuse of the same specified amperage.

There is a fuse puller on the back of the engine compartment fuse box cover.
