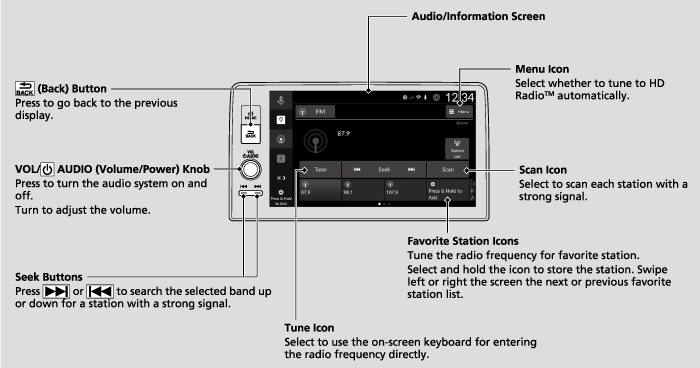

Playing AM/FM Radio

Favorite Station

To add a station:

  1. Tune to the selected station.
  2. Select and hold Press & Hold to Add.
Detail
Switching the Audio Mode
Roll the left selector wheel or select the audio source icon on the screen.

You can store 12 AM/FM stations into preset memory.

HD RadioTM Technology manufactured under license from iBiquity Digital Corporation, a subsidiary of Xperi Inc., U.S. and Foreign Patents. For patents see https://xperi.com/hd-radio-patents/. Xperi, HD Radio, HD, and 'ARC' logos and their respective logos are trademarks or registered trademarks of Xperi Inc. and its subsidiaries in the United States and other countries.

Editing a favorite station

Select and hold to desired favorite station icon.

The following items are available:

  • Remove Favorite: Delete the favorite station icon from the favorite station list.
  • Replace with (number): Replace the stored favorite station icon.
  • Add to Home: Add the shortcut icon of the stored favorite station to the home screen.

Station List

Lists the strongest stations on the selected band.

  1. Select Station List to display a list.
  2. Select the station.

Manual update

Updates your available station list at any time.

  1. Select Station List to display a list.
  2. Select Refresh.

Scan

Samples each of the strongest stations on the selected band for 10 seconds. To turn off scan, select Stop or press the button.

Radio Data System (RDS)

Provides text data information related to your selected RDS-capable FM station.

Detail
When you select an RDS-capable FM station, the RDS automatically turns on, and the frequency display changes to the station name. However, when the signals of that station become weak, the display changes from the station name to the frequency.

To find an RDS station from Station List

  1. Select Station List to display a list while listening to an FM station.
  2. Select the station.

Manual update

Updates your available station list at any time.

  1. Select Station List to display a list while listening to an FM station.
  2. Select Refresh.

HD Subchannel

Displays the subchannel list when an HD RadioTM station is selected while listening to an FM station.

  1. Select Station List.
  2. Select the channel number.

AM/FM Settings

Changes the AM/FM settings.

  1. Select Menu.
  2. Select HD Radio.
  3. Select Auto or Analog Only.
