Head-Up Display*

Shows the current mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam Assist*; compass or turn-by-turn directions; and vehicle speed. You can choose which item to be displayed using the driver information interface. They are displayed when the power mode is in ON.

The display also shows the following messages.

Lane Departure Warning: When your vehicle is too close to the traffic lane lines, the lane departure warning appears.
Lane Keeping Assist System (LKAS)Traffic Jam Assist* Road Departure Mitigation System

Head-up Warning Lights:
Flash when the BRAKE message appears on the driver information interface.
Collision Mitigation Braking System^TM (CMBS^TM)

Low Speed Braking Control (Continuously variable transmission models with parking sensor system) Low Speed Braking Control (Manual transmission models)

Adaptive Cruise Control (ACC) with Low Speed Follow*

Adaptive Cruise Control (ACC)*

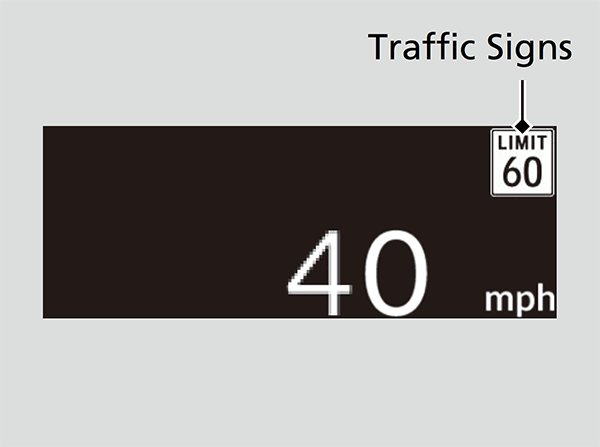

Traffic Sign Recognition System: Shows certain detected traffic signs while driving. If speed limit warning is activated, the sign icon blinks when the maximum speed of the traffic sign detected is exceeded by a threshold, when compared with the vehicle speed.
Traffic Sign Recognition System

Detail: The default speed limit warning threshold is the maximum speed of the traffic sign detected.
You can adjust the threshold for speed limit warning.

Customized Features Defaulting All the Settings

Head-Up Display Settings

Shows the display for changing the head-up display settings on the driver information interface.

Roll the right selector wheel to scroll to select Head-Up Display settings, then press the right selector wheel.

Switching the Display

Detail: HUD content
To change head-up display content

HUD brightness
Adjusting the head-up display brightness

HUD height
Adjusting the head-up display height

To change head-up display content

Roll the right selector wheel to scroll to select HUD content, then press the right selector wheel.
Roll the right selector wheel to scroll to select desired item, then press the right selector wheel.
- Speedometer
  Speedometer
- Navigation
  Navigation
- Driver assist
  Current Mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam Assist*
- OFF

Adjusting the head-up display brightness

Roll the right selector wheel to scroll to select HUD brightness, then press the right selector wheel.

Brighten: Roll the right selector wheel up.
Dim: Roll the right selector wheel down.

Press the right selector wheel to exit.

Adjusting the head-up display height

Roll the right selector wheel to scroll to select HUD height, then press the right selector wheel.

Raise the head-up display: Roll the right selector wheel up.
Lower the head-up display: Roll the right selector wheel down.

Press the right selector wheel to exit.

Detail: When you unlock and open the driver’s door with a remote transmitter or keyless access system, the head-up display adjusts automatically to one of the two preset positions.

Speedometer

Shows your driving speed in mph or km/h.

Detail: Switch between mph and km/h by using the driver information interface or the customized features on the audio/information screen.
Speed/Distance Units

Customized Features Defaulting All the Settings

Current Mode for ACC with Low Speed Follow, LKAS, and Traffic Jam Assist

Shows the current mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam Assist*.

Adaptive Cruise Control (ACC) with Low Speed Follow*

Adaptive Cruise Control (ACC)*

Lane Keeping Assist System (LKAS)

Traffic Jam Assist*

Navigation

Detail: You can select whether the turn-by-turn display comes on during the route guidance.
Customized Features Defaulting All the Settings

Turn-by-turn directions may not be available for all apps.
