Driver Information Interface (Left Side Area)

Shows the current mode for audio and phone information, etc.

Clock

Shows the clock.

Detail
You can adjust the time manually and change the clock display to show the 12 hour clock or 24 hour clock.

You can choose whether the clock is displayed on the driver information interface.

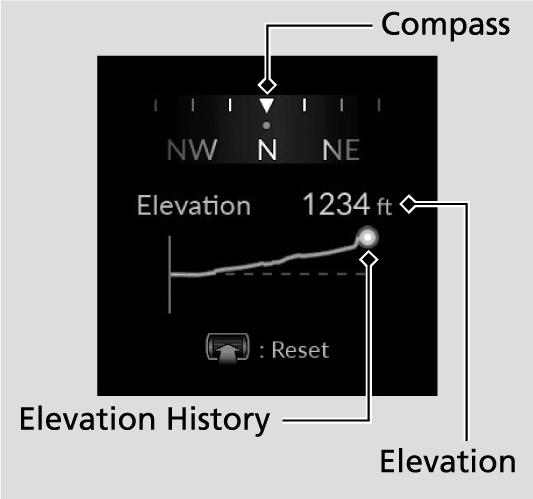

Elevation and Compass*

Select Elevation and compass on the customize display to show elevation and the compass.

Detail
This display will automatically be shown when the TRAIL mode is selected. It is also user selectable when in any drive mode.

This feature uses information from GPS satellite signals, so it requires open skies for the best accuracy. If used when in cities or around large/tall objects, the signal may not be sufficient to display an accurate Elevation. In these situations, the display will not show an elevation value and will instead show -----. Elevation History will also not be displayed.
Elevation history is shown for the previous 10 miles (16 km) of driving (X-axis). Once you drive further than 10 miles (16 km), the display shows a scrolling history of the past 10 miles (16 km). The Y-axis represents the elevation. This starts with a scale of
+/-200 feet (61 meters) from your current elevation. As you go beyond that, the elevation scale will adjust to continue to show all your data.

Reset Elevation History

Press the left selector wheel, and then select Reset.

Customize Display

Detail
When you customize settings, shift to P.

Arrange audio source on the left side area

You can choose which sources to display on the audio source screen.

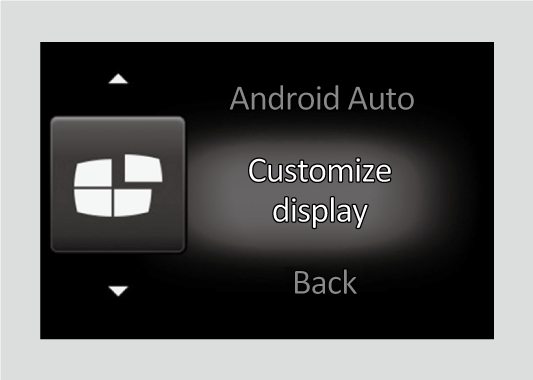

  1. Roll the left selector wheel until Customize display is selected, then press the left selector wheel.

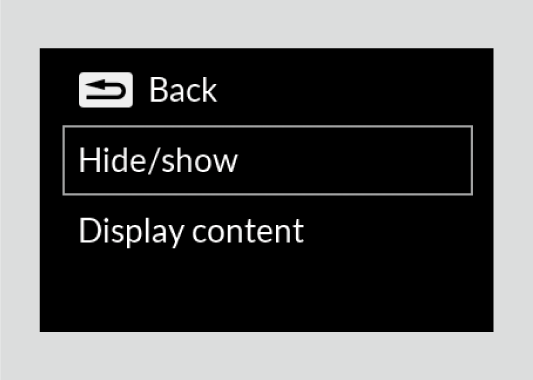

  1. Roll the left selector wheel to scroll to select Hide/show, then press the left selector wheel.

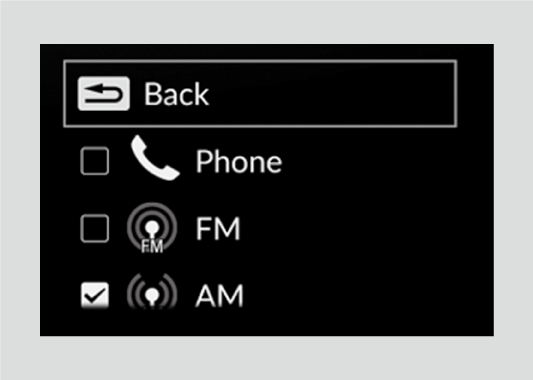

  1. Roll the left selector wheel to scroll between audio sources, then press the left selector wheel to check or uncheck them.

Select the display content on the left side area

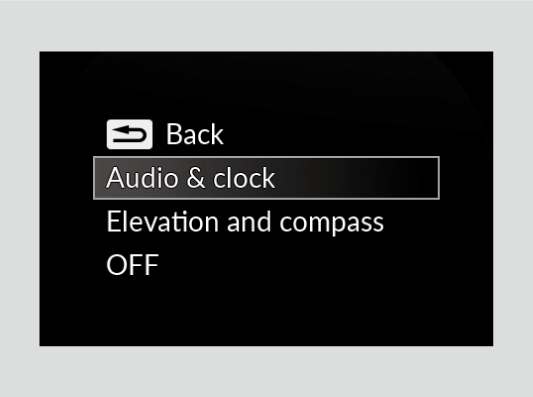

You can change the display content on the left side area. Select Audio & clock, Elevation and compass*, or OFF.

  1. Roll the left selector wheel until Customize display is selected, then press the left selector wheel.

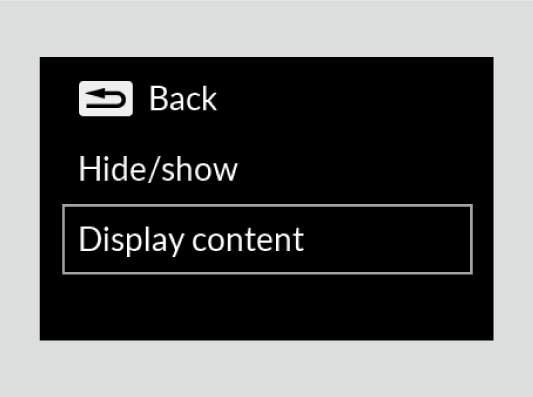

  1. Roll the left selector wheel to scroll to select Display content, then press the left selector wheel.
  1. Roll the left selector wheel to scroll to select your desired content, then press the left selector wheel.

* Not available on all models
