Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and check to see if any applicable fuse is blown.
Engine Compartment Fuse Box
Located near the brake fluid reservoir. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover or the image below. Locate the fuse in question by the fuse number.
Circuit protected and fuse rating
|
Circuit Protected
|
Amps
|
|
|---|---|---|
|
1
|
BATTERY
|
225 A
|
|
2
|
Idle Stop 1
|
(30 A)
|
|
Idle Stop 2
|
(30 A)
|
|
|
EPS
|
80 A
|
|
|
FET Main 1
|
70 A
|
|
|
Fuse Box Main 1
|
60 A
|
|
|
Fuse Box Option 1
|
60 A
|
|
|
Rear Blower
|
30 A
|
|
|
3
|
ACM
|
30 A
|
|
Starter Cut
|
30 A
|
|
|
Sub Fan Motor
|
30 A
|
|
|
Heater Motor
|
40 A
|
|
|
Accessory Power Socket Main*
|
(40 A)
|
|
|
Rear Defogger
|
40 A
|
|
|
Fuse Box Option 2
|
60 A
|
|
|
4
|
AC Power Outlet*
|
(30 A)
|
|
EBB
|
40 A
|
|
|
Power Tailgate
|
(40 A)
|
|
|
ABS/VSA FSR
|
40 A
|
|
|
-
|
60 A
|
|
|
Wiper Motor
|
30 A
|
|
|
Fuse Box Main 2
|
60 A
|
|
|
5
|
FET Main 2
|
30 A
|
|
ABS/VSA Motor
|
40 A
|
|
|
IG Main 2
|
30 A
|
|
|
SRM 2
|
30 A
|
|
|
SRM 1
|
30 A
|
|
|
AWD*
|
(30 A)
|
|
|
IG Main 1
|
30 A
|
|
|
6
|
Condenser Fan
|
30 A
|
|
7
|
Trailer Main*
|
(30 A)
|
|
8
|
Power Tailgate
|
(20 A)
|
|
9
|
-
|
(15 A)
|
|
10
|
-
|
-
|
|
11
|
Back Up
|
10 A
|
|
12
|
Trailer Charge*
|
(20 A)
|
|
13
|
Trailer Brake*
|
(20 A)
|
|
14
|
Horn
|
15 A
|
|
15
|
-
|
-
|
|
16
|
VBU
|
10 A
|
|
17
|
-
|
-
|
|
18
|
-
|
-
|
|
19
|
FI Main
|
20 A
|
|
20
|
Injector
|
20 A
|
|
21
|
TCU 1
|
15 A
|
|
22
|
IG Coil
|
15 A
|
|
23
|
Hazard
|
15 A
|
|
24
|
Right H/L
|
15 A
|
|
25
|
Stop
|
5 A
|
|
26
|
Left H/L
|
15 A
|
|
27
|
TCU 3
|
10 A
|
|
28
|
TCU 2
|
10 A
|
|
29
|
-
|
-
|
|
30
|
-
|
-
|
|
31
|
Front Washer
|
15 A
|
|
32
|
Battery Sensor
|
10 A
|
|
33
|
Shutter Grille
|
10 A
|
|
34
|
IG1 START
|
5 A
|
|
35
|
Battery Fan
|
5 A
|
|
36
|
FI ECU
|
5 A
|
|
37
|
-
|
-
|
|
38
|
IG1 PCS
|
5 A
|
|
39
|
IGPS RAD
|
10 A
|
|
40
|
IGPS VSSV
|
(10 A)
|
|
41
|
-
|
-
|
Driver’s Side Interior Fuse Box
Located under the dashboard.

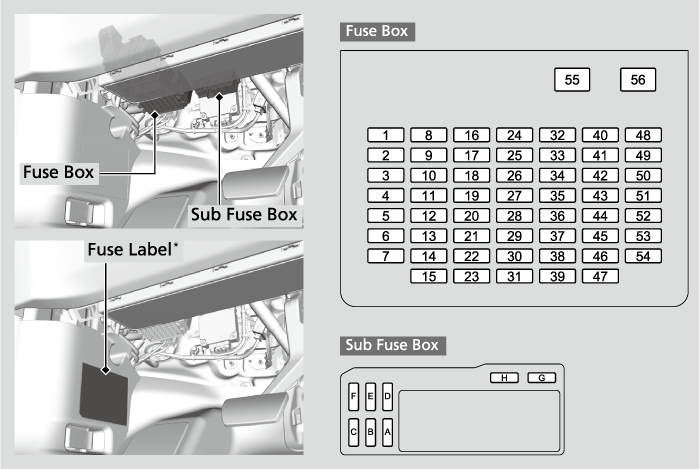

Fuse locations are shown on the label* on the side panel or the image below.
Locate the fuse in question by the fuse number.
Circuit protected and fuse rating
Fuse Box
|
Circuit Protected
|
Amps
|
|
|---|---|---|
|
1
|
Driver’s Power Window
|
30 A
|
|
2
|
Front Passenger’s Power Window
|
30 A
|
|
3
|
Rear Right Side Power Window
|
30 A
|
|
4
|
Rear Left Side Power Window
|
30 A
|
|
5
|
Option
|
10 A
|
|
6
|
SRS
|
10 A
|
|
7
|
-
|
(10 A)
|
|
8
|
-
|
-
|
|
9
|
Rear Accessory Power Socket*
|
(20 A)
|
|
10
|
Door Lock Main
|
20 A
|
|
11
|
Meter
|
10 A
|
|
12
|
MISS SOL
|
10 A
|
|
13
|
Rear Wiper
|
10 A
|
|
14
|
-
|
-
|
|
15
|
Driver’s Door Unlock
|
(10 A)
|
|
16
|
Panoramic Roof*
|
(20 A)
|
|
17
|
-
|
-
|
|
18
|
-
|
-
|
|
19
|
AWD*
|
(10 A)
|
|
20
|
Center Display
|
10 A
|
|
21
|
-
|
-
|
|
22
|
Keyless Access System
|
10 A
|
|
23
|
Driver’s Door Lock
|
(10 A)
|
|
24
|
-
|
-
|
|
25
|
Shifter
|
10 A
|
|
26
|
SRS
|
10 A
|
|
27
|
ACG
|
15 A
|
|
28
|
ABS/VSA
|
10 A
|
|
29
|
FUEL PUMP
|
20 A
|
|
30
|
Left Side Door Unlock
|
10 A
|
|
31
|
Right Side Door Unlock
|
10 A
|
|
32
|
Sunshade*
|
(20 A)
|
|
33
|
CGW
|
10 A
|
|
34
|
-
|
-
|
|
35
|
Front USB
|
10 A
|
|
36
|
Rear USB
|
15 A
|
|
37
|
-
|
-
|
|
38
|
Rear Seat Act
|
20 A
|
|
39
|
Right Side Door Lock
|
10 A
|
|
40
|
Driver’s Power Seat Slide
|
(20 A)
|
|
41
|
Driver’s Power Seat Recline
|
(20 A)
|
|
42
|
Starter
|
10 A
|
|
43
|
A/C
|
10 A
|
|
44
|
DRL
|
10 A
|
|
45
|
Accessory
|
10 A
|
|
46
|
-
|
-
|
|
47
|
Left Side Door Lock
|
10 A
|
|
48
|
-
|
-
|
|
49
|
Front Passenger’s Power Seat Slide
|
(20 A)
|
|
50
|
Driver’s Power Seat Lumbar
|
(10 A)
|
|
51
|
-
|
-
|
|
52
|
-
|
-
|
|
53
|
Front Passenger’s Power Seat Recline
|
(20 A)
|
|
54
|
-
|
-
|
|
55
|
Audio Amp*
|
(30 A)
|
|
56
|
-
|
-
|
Sub Fuse Box
|
Circuit Protected
|
Amps
|
|
|---|---|---|
|
A
|
Option VST
|
(10 A)
|
|
B
|
Accessory VST
|
(10 A)
|
|
C
|
Back Up 2 Main
|
(15 A)
|
|
D
|
Surround View Camera System VST*
|
(10 A)
|
|
E
|
Audio VST
|
(20 A)
|
|
F
|
-
|
-
|
|
G
|
Meter VST
|
(15 A)
|
|
H
|
MICU VST
|
(10 A)
|

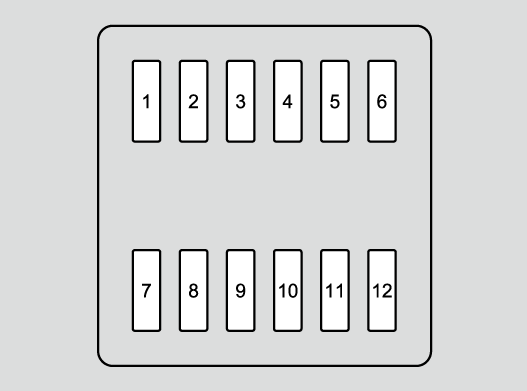

Passenger’s Side Interior Fuse Box

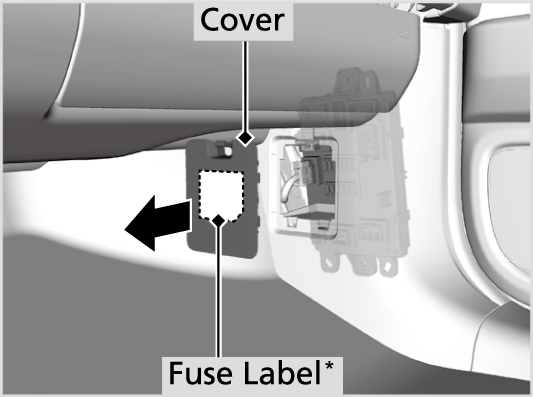

Located on the lower side panel. Take off the cover to open.
Fuse locations are shown on the label* on the back of the cover or the image below. Locate the fuse in question by the fuse number.
Circuit protected and fuse rating
|
Circuit Protected
|
Amps
|
|
|---|---|---|
|
1
|
−
|
−
|
|
2
|
A/C Compressor
|
10 A
|
|
3
|
Heated Steering Wheel*
|
(10 A)
|
|
4
|
Heated Windshield*
|
(15 A)
|
|
5
|
Fog Lights
|
(10 A)
|
|
6
|
FI Sub
|
15 A
|
|
7
|
Front Seat Heaters
|
20 A
|
|
8
|
−
|
−
|
|
9
|
−
|
−
|
|
10
|
Second Row Seat Heaters*
|
(20 A)
|
|
11
|
−
|
−
|
|
12
|
Front Accessory Power Socket
|
20 A
|
* Not available on all models
Inspecting and Changing Fuses
-
- Set the power mode to VEHICLE OFF. Turn headlights and all accessories off.
- Remove the fuse box cover.
- Check the main fuse in the engine compartment fuse box.

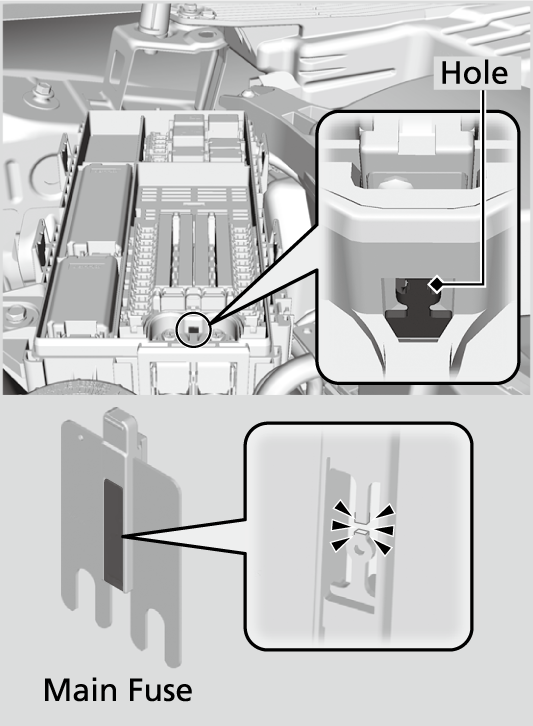

- Look at the fuse through the hole.
- If the fuse is blown, have it replaced by a dealer.
-
-
- Check the combined fuses in the engine compartment fuse box.
- Look into the space between the fuses.
- If the fuse is blown, have it replaced by a dealer.
- Check the combined fuses in the engine compartment fuse box.
-
-
- Inspect the small fuses in the engine compartment and the vehicle interior.
- If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
- Inspect the small fuses in the engine compartment and the vehicle interior.
-
- Detail
-
NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.

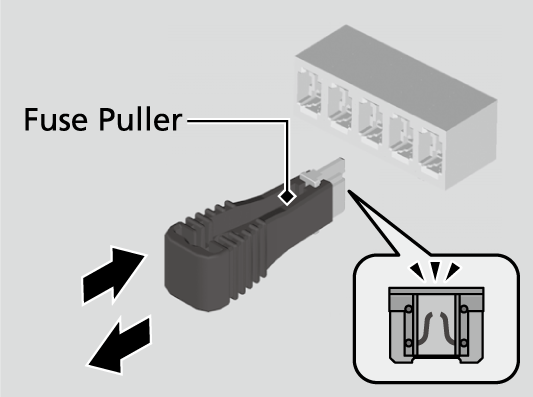

Replace with a fuse of the same specified amperage.There is a fuse puller on the back of the engine compartment fuse box cover.
