Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF, and check to see if any applicable fuse is blown.

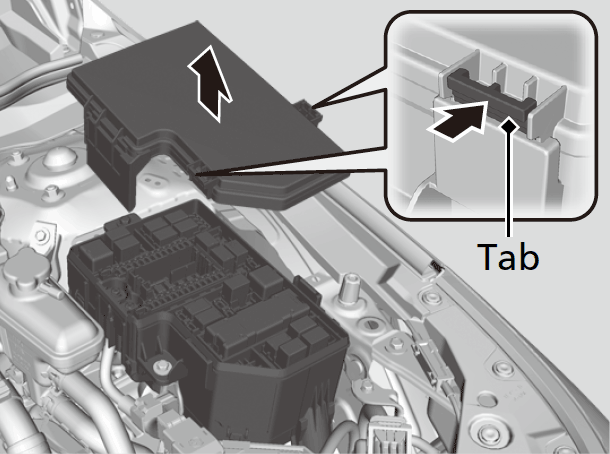

Engine Compartment Fuse Box
Located near the 12-volt battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.
Circuit protected and fuse rating
Circuit Protected
|
Amps
|
|
---|---|---|
1
|
BATTERY
|
175 A
|
2
|
−
|
30 A
|
−
|
40 A
|
|
F/BOX OPTION
|
60 A
|
|
A/C PTC1
|
(40 A)
|
|
F/BOX OPTION2
|
60 A
|
|
−
|
60 A
|
|
F/BOX MAIN
|
60 A
|
|
3
|
AUDIO AMP
|
(30 A)
|
−
|
30 A
|
|
A/C PTC3
|
(40 A)
|
|
−
|
30 A
|
|
−
|
50 A
|
|
HTR MTR
|
40 A
|
|
RR DEFROSTER
|
40 A
|
|
4
|
ABS/VSA FSR
|
40 A
|
ABS/VSA MTR
|
40 A
|
|
ENG WATER PUMP
|
40 A
|
|
ESB
|
40 A
|
|
IG MAIN
|
30 A
|
|
−
|
40 A
|
|
R/M2
|
30 A
|
|
5
|
SUB FUSE
|
30 A
|
WIPER
|
30 A
|
|
EPS
|
70 A
|
|
R/M1
|
30 A
|
|
RFC
|
60 A
|
|
−
|
(30 A)
|
|
F/BOX MAIN2
|
60 A
|
|
6
|
−
|
−
|
7
|
IG MAIN2
|
30 A
|
8
|
−
|
−
|
9
|
BACK UP
|
15 A
|
10
|
WASHER
|
15 A
|
11
|
−
|
−
|
12
|
RR H/SEAT*
|
(20 A)
|
13
|
−
|
−
|
14
|
RFC RLY CL+
|
10 A
|
15
|
SHUTTER GRILLE
|
(10 A)
|
16
|
−
|
−
|
17
|
−
|
−
|
18
|
HORN
|
10 A
|
19
|
AUDIO SUB*
|
(15 A)
|
20
|
AUDIO
|
7.5 A
|
21
|
EVTC
|
20 A
|
22
|
DBW
|
15 A
|
23
|
HAZARD
|
15 A
|
24
|
BACKUP FI-ECU
|
10 A
|
25
|
IGP
|
15 A
|
26
|
−
|
−
|
27
|
LCM L
|
20 A
|
28
|
INJ
|
20 A
|
29
|
STOP
|
10 A
|
30
|
LCM R
|
20 A
|
31
|
IG COIL
|
15 A
|
32
|
ICM
|
10 A
|
33
|
PCU EWP
|
10 A
|
34
|
−
|
−
|
35
|
−
|
−
|
38
|
−
|
−
|
39
|
IGA
|
10 A
|
40
|
IGB
|
10 A
|
41
|
−
|
−
|
42
|
MON2
|
7.5 A
|
43
|
−
|
−
|
44
|
−
|
−
|
45
|
IGPS (LAF)
|
10 A
|
46
|
−
|
−
|

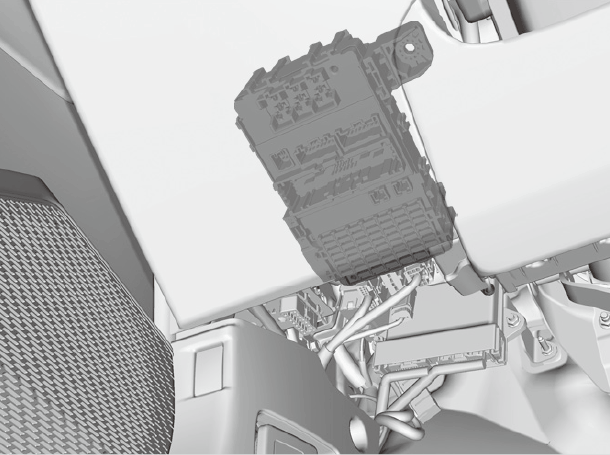

Interior Fuse Box
Located under the dashboard.

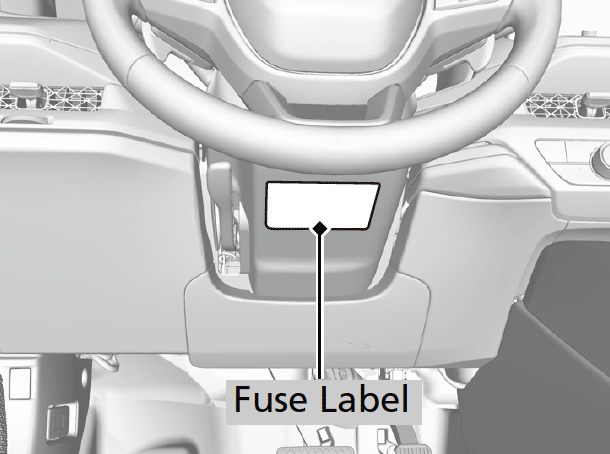

Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
Circuit protected and fuse rating
Circuit Protected
|
Amps
|
|
---|---|---|
1
|
P/W DR
|
20 A
|
2
|
P/W AS
|
20 A
|
3
|
P/W RR R
|
20 A
|
4
|
P/W RR L
|
20 A
|
5
|
OPTION
|
10 A
|
6
|
SRS
|
10 A
|
7
|
TRUNK LOCK ACT
|
10 A
|
8
|
−
|
−
|
9
|
FR ACC SOCKET
|
20 A
|
10
|
DOOR LOCK
|
20 A
|
11
|
METER
|
10 A
|
12
|
−
|
(10 A)
|
13
|
OPTION2
|
10 A
|
14
|
MISS SOL
|
10 A
|
15
|
DR DOOR UNLOCK
|
(10 A)
|
16
|
−
|
−
|
17
|
−
|
−
|
18
|
−
|
−
|
19
|
−
|
−
|
20
|
CGW
|
10 A
|
21
|
−
|
−
|
22
|
SMART
|
10 A
|
23
|
DR DOOR LOCK
|
(10 A)
|
24
|
−
|
−
|
25
|
−
|
−
|
26
|
SRS
|
10 A
|
27
|
ACG
|
10 A
|
28
|
VSA/ABS
|
10 A
|
29
|
FUEL PUMP
|
20 A
|
30
|
L SIDE DOOR UNLOCK
|
10 A
|
31
|
R SIDE DOOR UNLOCK
|
10 A
|
32
|
SUN ROOF
|
(20 A)
|
33
|
CTR DISP
|
(7.5 A)
|
34
|
USB CHG
|
10 A
|
35
|
−
|
−
|
36
|
−
|
−
|
37
|
−
|
−
|
38
|
IGA2 (IGHOLD3)
|
(20 A)
|
39
|
R SIDE DOOR LOCK
|
10 A
|
40
|
DR P/SEAT SLIDE
|
(20 A)
|
41
|
DR P/SEAT REC
|
(20 A)
|
42
|
OPTION3
|
(10 A)
|
43
|
A/C
|
10 A
|
44
|
DRL
|
10 A
|
45
|
ACC
|
10 A
|
46
|
ACC KEY LOCK
|
10 A
|
47
|
L SIDE DOOR LOCK
|
10 A
|
48
|
FR H/SEAT*
|
(20 A)
|
49
|
AS P/SEAT REC*
|
(20 A)
|
50
|
P/LUMBAR DR
|
(10 A)
|
51
|
−
|
−
|
52
|
−
|
−
|
53
|
AS P/SEAT SLIDE*
|
(20 A)
|
54
|
OPTION1
|
10 A
|
55
|
−
|
−
|
56
|
−
|
−
|
* Not available on all models
Inspecting and Changing Fuses
-
- Set the power mode to VEHICLE OFF. Turn headlights and all accessories off.
- Remove the fuse box cover.

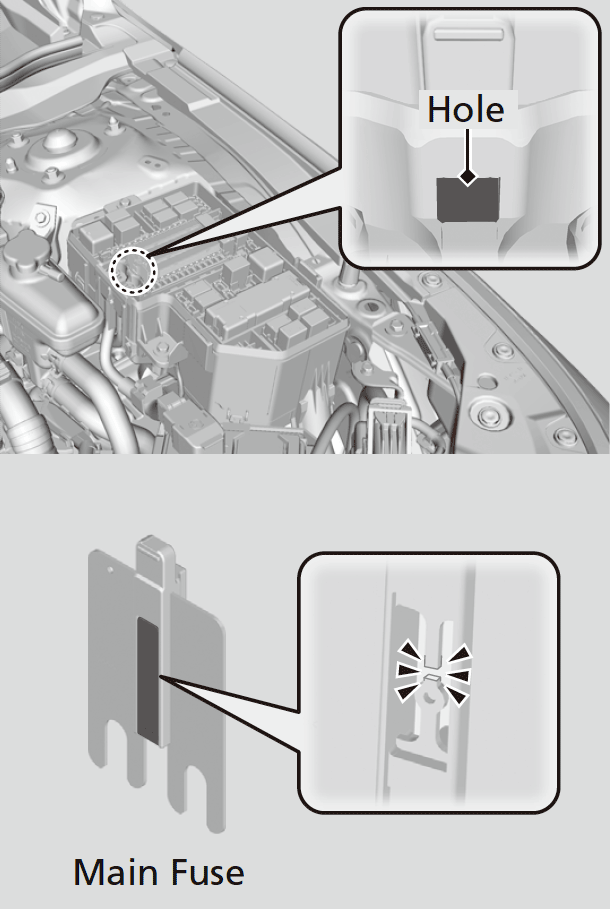

- Check the main fuse in the engine compartment fuse box.
- Look at the fuse through the hole.
- If the fuse is blown, have it replaced by a dealer.
-

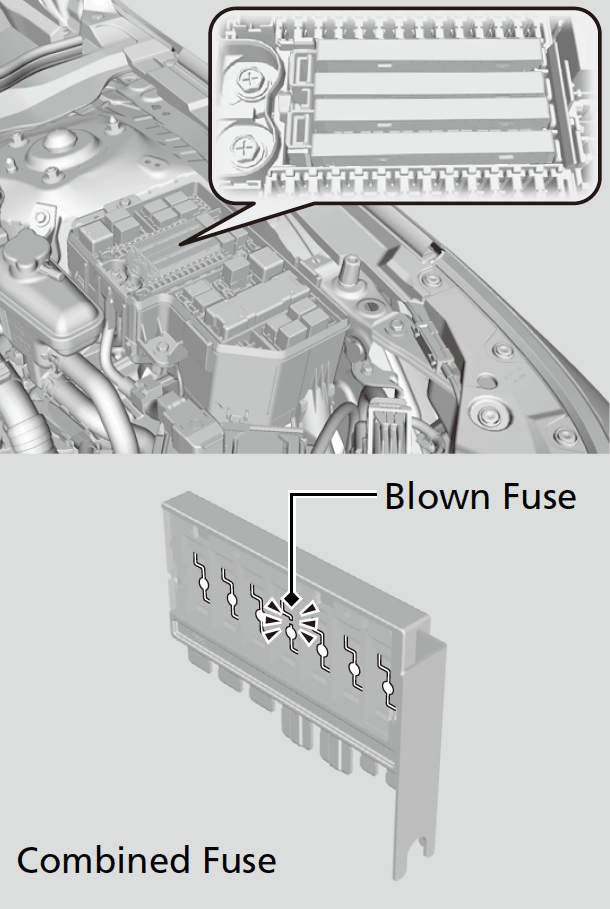

- Check the combined fuses in the engine compartment fuse box.
- Look into the space between the fuses.
- If the fuse is blown, have it replaced by a dealer.
- Check the combined fuses in the engine compartment fuse box.
-

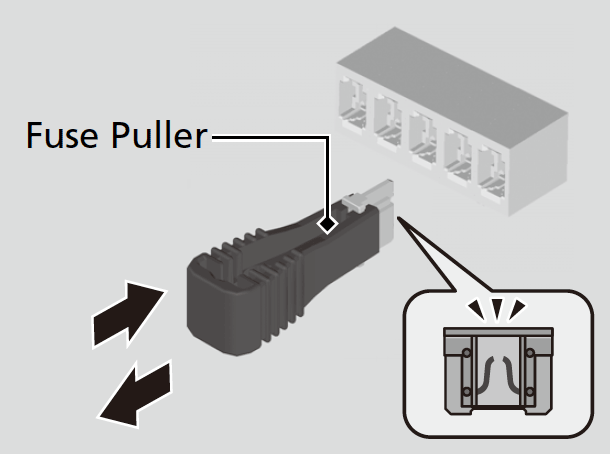

- Inspect the small fuses in the engine compartment and the vehicle interior.
- If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
- Inspect the small fuses in the engine compartment and the vehicle interior.
- Detail
-
NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.
Replace with a fuse of the same specified amperage.There is a fuse puller on the back of the engine compartment fuse box cover.
