Android AutoTM

When you connect an Android phone to the audio system via the USB port or wirelessly, Android Auto is automatically initiated. When connected via Android Auto, you can use the audio/information screen to access the Phone, Google Maps (Navigation), and Google Now functions. When you first use Android Auto, a tutorial will appear on the screen.
We recommend that you complete this tutorial while safely parked before using Android Auto.

Detail
Only Android 5.0 (Lollipop) or later versions are compatible with Android Auto.
Bluetooth A2DP cannot be used while your phone is connected to Android Auto.

To use Android Auto on a smartphone with Android 9.0 (Pie) or earlier, you need to download the Android Auto app from Google Play to your smartphone.

Park in a safe place before connecting your Android phone to Android Auto and when launching any compatible apps.

When your Android phone is connected to Android Auto, it is not possible to use the Bluetooth® Audio.

Apple CarPlay and Android Auto cannot run at the same time.

Android Auto is a trademark of Google LLC.

For details on countries and regions where Android Auto is available, as well as information pertaining to function, refer to the Android Auto homepage.

Screens may differ depending on the version of the Android Auto app you are using.

Android Auto Operating Requirements & Limitations
Android Auto requires a compatible Android phone with an active cellular connection and data plan. Your carrier’s rate plans will apply.

Changes in operating systems, hardware, software, and other technology integral to providing Android Auto functionality, as well as new or revised governmental regulations, may result in a decrease or cessation of Android Auto functionality and services. Honda cannot and does not provide any warranty or guarantee of future Android Auto performance or functionality.

It is possible to use 3rd party apps if they are compatible with Android Auto. Refer to the Android Auto homepage for information on compatible apps.

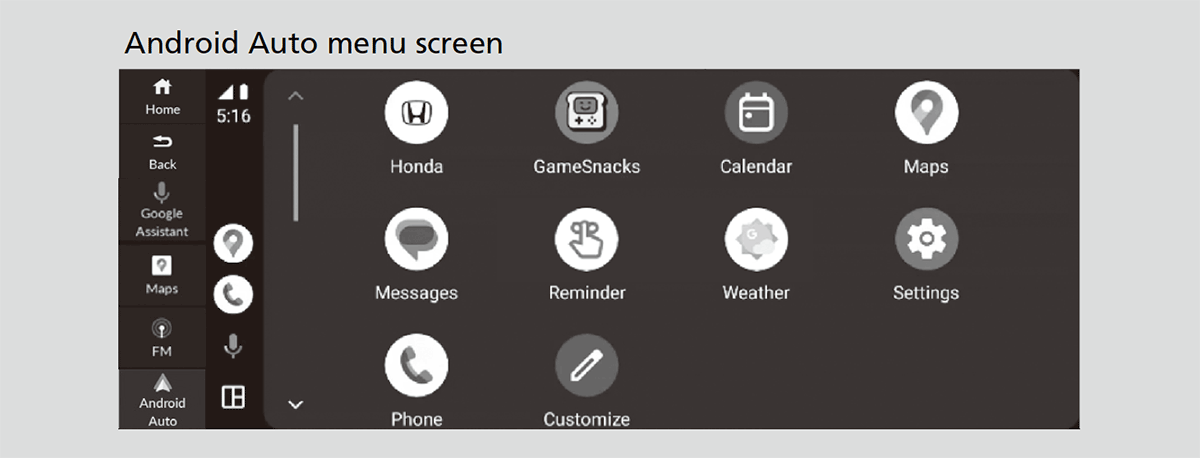

Android Auto Menu

  • Maps
    Display Google Maps and use the navigation function just as you would with your Android phone. When the vehicle is in motion, it is not possible to make keyboard entries. Stop the vehicle in a safe location to undertake a search or provide other inputs.
    Models with Google Built-In
    Only one navigation system (Google Built-In or Android Auto) can give directions at a time. When you are using one system, directions to any prior destination set on the other system will be canceled, and the system you are currently using will direct you to your destination.
    The audio/information screen shows you turn-by-turn driving directions to your destination.
  • Phone
    Make and receive phone calls as well as listen to voicemail.
  • Honda
    Select the Honda icon to go back to the home screen.

Enabling Android Auto

When you connect an Android phone to the unit via the USB port or wirelessly, Android Auto is automatically initiated.

Detail
Only initialize Android Auto when you are safely parked. When Android Auto first detects your phone, you will need to set up your phone so that auto pairing is possible. Refer to the instruction manual that came with your phone.

You can use the method below to change Android Auto settings after you have completed the initial setup:
Select Home General Settings Connections Manage Device Connections Select Device

Use of user and vehicle information
The use and handling of user and vehicle information transmitted to/from your phone by Android Auto is governed by the Google’s Privacy Policy.

Wireless Android Auto and AT&T Hotspot cannot be used at the same time. When using Android Auto and AT&T Hotspot at the same time, connect to Android Auto with a USB cable.

Connecting Android Auto using the USB cable to the USB port

  1. Connect the Android phone to the USB port using the USB cable.
    • The confirmation screen will be displayed.
  2. Select Yes.
    • If you do not allow this consent, select No.

You may change the consent settings under the Connections settings menu.

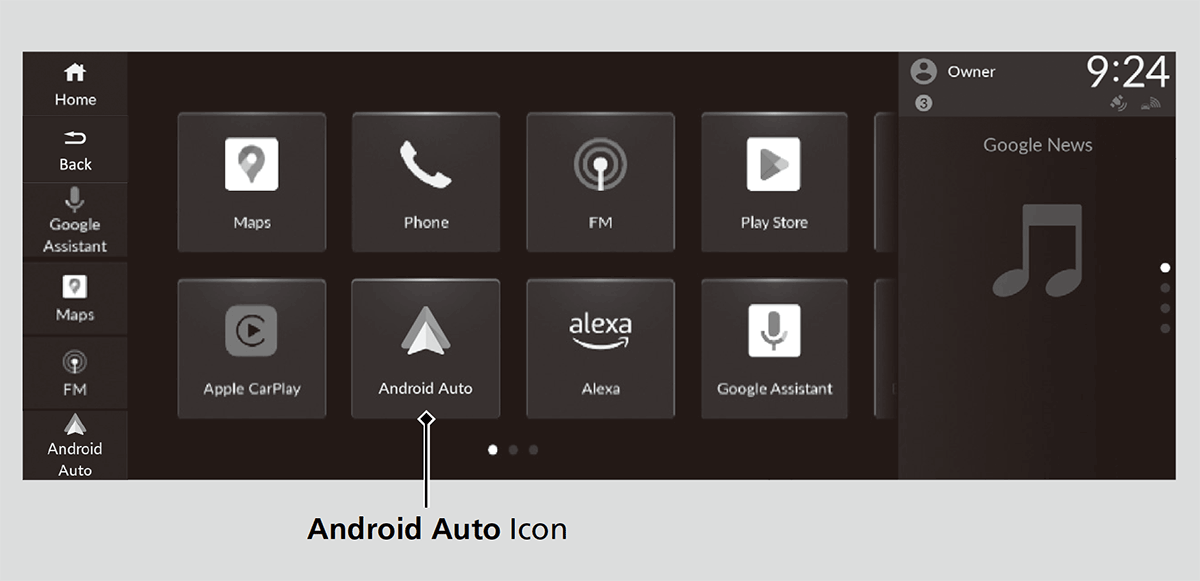

Connect Android Auto wirelessly on the home screen

  1. Select Home.
  2. Select Smartphone Projection.
  3. Select Connect New Device.
  4. Pair the Android phone to the vehicle’s Bluetooth® HandsFreeLink® (HFL) system.
  5. Select Yes.
    • If your Android phone asks for permission to accept an Android Auto connection, accept to connect.

Connect Android Auto wirelessly on the Bluetooth® device list

  1. Select Home.
  2. Select General Settings.
  3. Select Connections.
  4. Select Manage Device Connections.
  5. Select + Connect New Device.
  6. Pair the Android phone to the vehicle’s Bluetooth® HandsFreeLink® (HFL) system.
  7. Select icon.
    • If you select icon, you cannot select icon.
  8. Select Connect.
  9. Select Yes.
    • If your Android phone asks for permission to accept an Android Auto connection, accept to connect.

Connect Android Auto wirelessly with the steering wheel

  1. Press and hold the (Talk) button on the steering wheel.
  2. Pair the Android phone to the vehicle’s Bluetooth® HandsFreeLink® (HFL) system.
  3. Select icon.
    • If you select icon, you cannot select icon.
  4. Select Connect.
  5. Select Yes.
    • If your Android phone asks for permission to accept an Android Auto connection, accept to connect.

Operating Android Auto with Voice Recognition

Press and hold the (Talk) button to operate Android Auto with your voice.



(Talk) Button:
Press and hold to operate Android Auto with your voice.
Press and release to activate the standard voice recognition system.

Detail
Below are examples of commands you can give with voice recognition:
  • Reply to text.
  • Call my wife.
  • Navigate to Honda.
  • Play my music.
  • Send a text message to my wife.
  • Call flower shop.

For more information, please refer to the Android Auto homepage.

You can also activate the voice recognition function by pressing the icon in the lower-right corner of the screen.
