Customized Features
Use the audio/information screen to customize certain features.
- Detail
-
When you customize settings:
- Make sure that the vehicle is at a complete stop.
- Put the transmission into P.

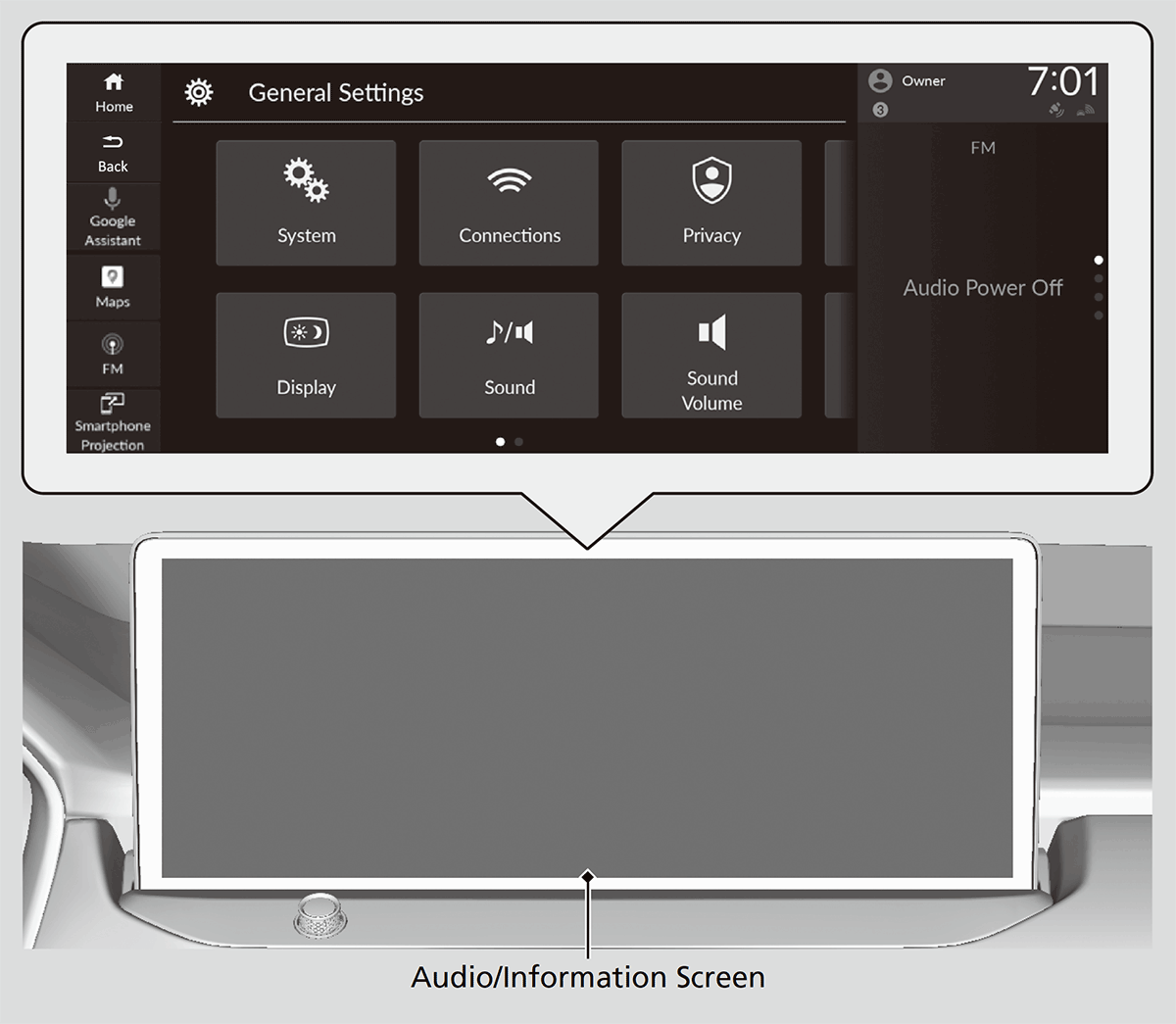

How to Customize the General Settings
With the power mode in ON, select General Settings, then select a setting item.
System
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Date & Time
|
Set Date & Time
|
Automatic Date & Time
|
Selects ON to have the GPS automatically adjust the clock. Select OFF to cancel this function.
|
On*1/Off
|
Set Date
|
Adjusts date.
|
—
|
||
Set Time
|
Adjusts clock.
|
—
|
||
Time Zone
|
Automatic Time Zone
|
Sets the navigation system to automatically adjust the clock when driving through different time zones.
|
On*1/Off
|
|
(Select time zone)
|
Changes the time zone manually.
|
—
|
||
Auto Daylight Saving Time
|
Select ON to have the GPS automatically adjust the clock to daylight savings time. Select OFF to cancel this function.
|
On*1/Off
|
||
Date Format
|
Sets the date format.
|
Day-of-week, MM DD, YYYY*1/
YYYY.MM.DD Day-of-week/ YYYY.MM.DD (Day-of-week)/ Day-of-week DD.MM.YYYY/ DD.MM.YYYY |
||
Time Format
|
Selects the digital clock display from 12H to 24H.
|
12H*1/24H
|
- Default Setting
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Language
|
Changes the display language.
|
English (United States)*1/Español/Français
|
||
Touch Panel Sensitivity
|
Sets the sensitivity of the touch panel screen.
|
Low*1/High
|
||
About
|
IP Address
|
Displays the Android setting items.
|
—
|
|
Wi-Fi MAC Address
|
||||
Bluetooth MAC Address
|
||||
Serial Number
|
||||
Up Time
|
||||
Model Number
|
||||
Android Version
|
||||
Kernel Version
|
||||
Build Number
|
||||
Software Version
|
||||
Factory Data Reset
|
Resets all the settings to their factory default.
|
Cancel/Continue
|
- Default Setting
Connections
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Manage Device Connections
|
Options
|
Bluetooth
|
Turns the Bluetooth® on and off.
|
On*1/Off
|
Priority Device Information
|
Displays the priority device.
|
—
|
||
Change Name
|
Changes vehicle name for Bluetooth® connection setting.
|
—
|
||
Smartphone Projection Screen Size
|
Changes the screen size of the smartphone projection.
|
Normal/Wide*1
|
||
+ Connect New Device
|
Pairs a new phone to HFL.
|
—
|
||
(Saved Devices)
|
Connects, disconnects, or deletes a paired phone.
|
—
|
- Default Setting
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Wi-Fi
|
Options
|
Wi-Fi*4
|
Allow vehicle to connect to Wi-Fi.
|
Off/On*1
|
Add Network*2
|
Allows you to connect to a new external
network.
|
—
|
||
Saved
Networks*2
|
Delete a saved network or change update
permission settings for the selected network.
|
—
|
||
Network
SSID*3
|
Sets the network name.
|
—
|
||
Security*3
|
Changes the network security.
|
WPA2/WPA3 Personal/WPA3 Transition mode*1
|
||
Password*3
|
Sets password for require entering password when connecting Wi-Fi device to the network.
|
—
|
||
Wi-Fi Band*3
|
Displays the Wi-Fi band.
|
—
|
||
Change Mode
|
Changes the Wi-Fi mode.
|
Off/Smartphone Connection/Network*1
|
||
(Detected Networks)
|
Displays the detected network(s).
|
- Default Setting
- Select Network mode
- Select Smartphone Connection mode
- Depending on the OS version
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Access Point*2
|
Options
|
Access Point
|
Allow wireless connection from the phone to the
vehicle. This feature must be turned on for
wireless Apple CarPlay or Android Auto to work.
|
Off*1/On |
Edit Access
Point
Settings
|
Allows you to confirm hotspot settings and edit
hotspot connection information.
|
— | ||
Data Connection Options
|
Set Up Wi-Fi
|
Sets personal hotspot (phone tethering).
|
||
Set Up Vehicle Data Plan
|
Sets AT&T vehicle data plan.
|
- Default Setting
- Depending on the OS version
Privacy
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Data Sharing
|
Turns the data sharing Disable and Enable.
|
Disable/Enable*1
|
||
Location
|
Sets the data sharing permission for each function.
|
|||
App permissions
|
||||
System-wide Permission Settings
|
||||
Data sharing with Google*2
|
||||
Google legal*2
|
Google Terms of Service*2
|
Displays the Google URL.
|
—
|
|
Google Privacy Policy*2
|
- Default Setting
- Please confirm the details on the audio/information screen. Specifications are subject to change via system updates, etc.
Display
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Brightness
|
Changes the brightness of the audio/information screen.
|
—
|
Contrast
|
Changes the contrast of the audio/information screen.
|
—
|
Black Level
|
Changes the black level of the audio/information screen.
|
—
|
Day Mode*1
|
Changes between the daytime mode and night mode.
|
—
|
Night Mode*1
|
||
Display Off
|
Turns the audio/information screen brightness off.
|
—
|
- When the AID sensor is disabled.
Sound
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Bass/Mid/Treble
|
Treble
|
Adjusts the settings of the audio speakers’ sound.
|
—
|
|
Midrange
|
||||
Bass
|
||||
Balance/Fader*
|
||||
Audio Zones & Balance / Fader*
|
||||
Speed Volume Compensation*
|
||||
Bose Centerpoint Surround*
|
||||
Bose Dynamic Speed Compensation*
|
Sound Volume
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
System Sounds
|
Adjusts the settings of the sounds volume.
|
0~2*1~3
|
||
Voice Recognition
|
1~6*1~11
|
|||
Navigation Guidance
|
0~6*1~11
|
|||
Phone Calls
|
0~20*1~40
|
- Default Setting
Camera
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Rear Wide Camera
|
Guidelines
|
Fixed Guideline
|
Selects whether the guidelines appear on the rear camera monitor.
|
On*1/Off
|
Dynamic Guideline
|
Selects whether the guidelines appear on the rear camera monitor.
|
On*1/Off
|
||
Cross Traffic Monitor*
|
Shows arrows on the rear camera image to indicate vehicles approaching from the sides.
|
On*1/Off
|
- Default Setting
Voice Control
Customizable Features
|
Description
|
Selectable Settings
|
||
---|---|---|---|---|
Default Assist App
|
Selects the assistant apps.
|
Model with Google Built-In
None/Alexa/Google Assistant*1
Model without Google Built-In
None/Alexa*1
|
||
Listen for “Hey Siri”*2
|
Turns On or Off whether start up Siri, when you say “Hey Siri”.
|
On/Off*3
|
||
Google Assistant*4
|
Sets the functions of Google Assistant.
|
—
|
- Default Setting
- Activates when the iPhone is connected.
- Default Setting (When the Apple CarPlay is launched, setting will be switch to On.)
- Displayed only on models with Google Built-in when the default assist app is Google Assistant.
Security
You can customize security settings. Please confirm the details on the audio/information screen.
Specifications are subject to change via system updates, etc.
You can customize Google settings. Please confirm the details on the audio/information screen.
Specifications are subject to change via system updates, etc.
Advanced Settings
You can customize advanced system settings. Please confirm the details on the audio/information screen.
Specifications may be changed via system updates, etc.

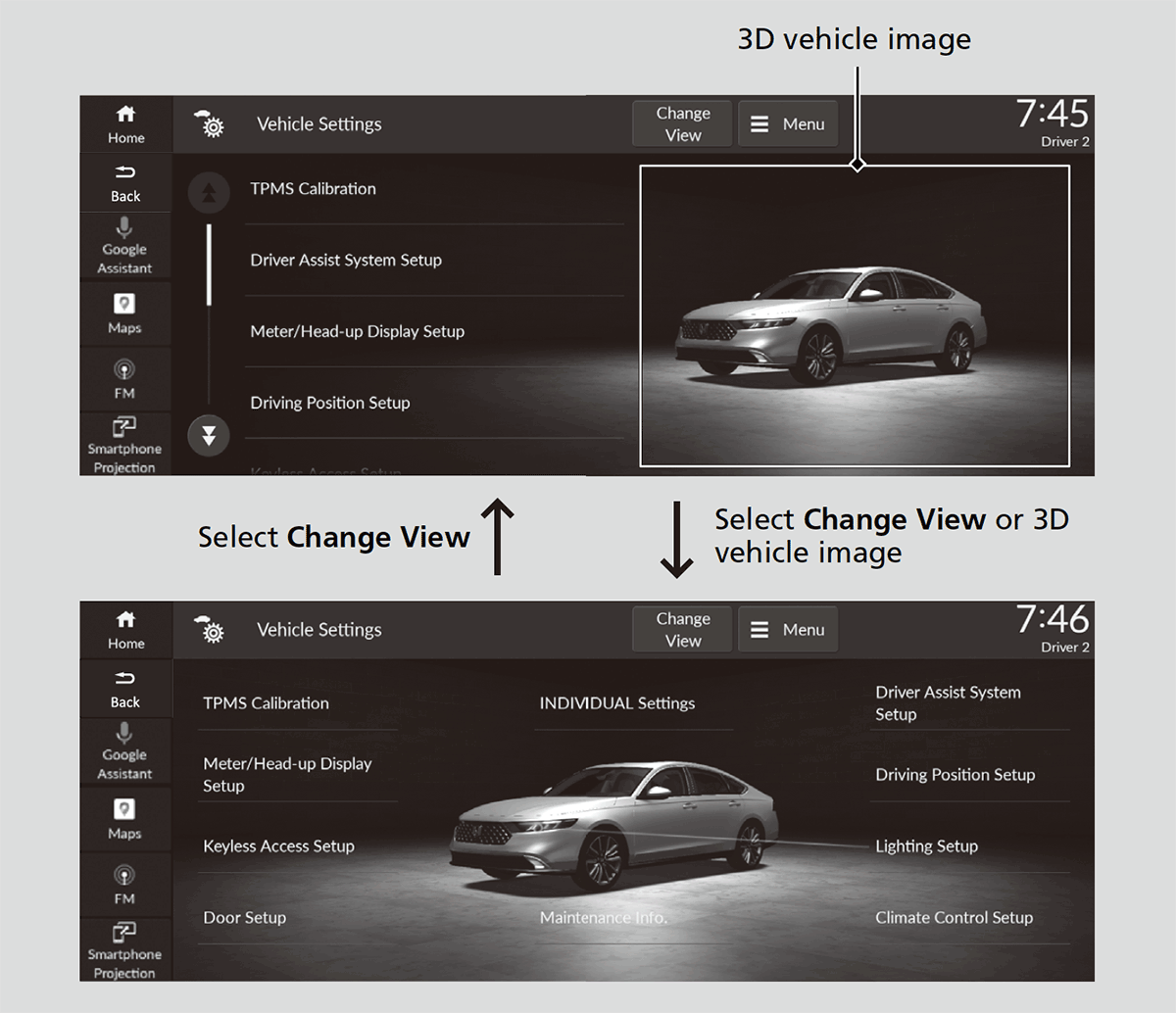

How to Customize the Vehicle Settings
With the power mode in ON, select the Home, and then select Vehicle Settings and select a setting item.
- Detail
-

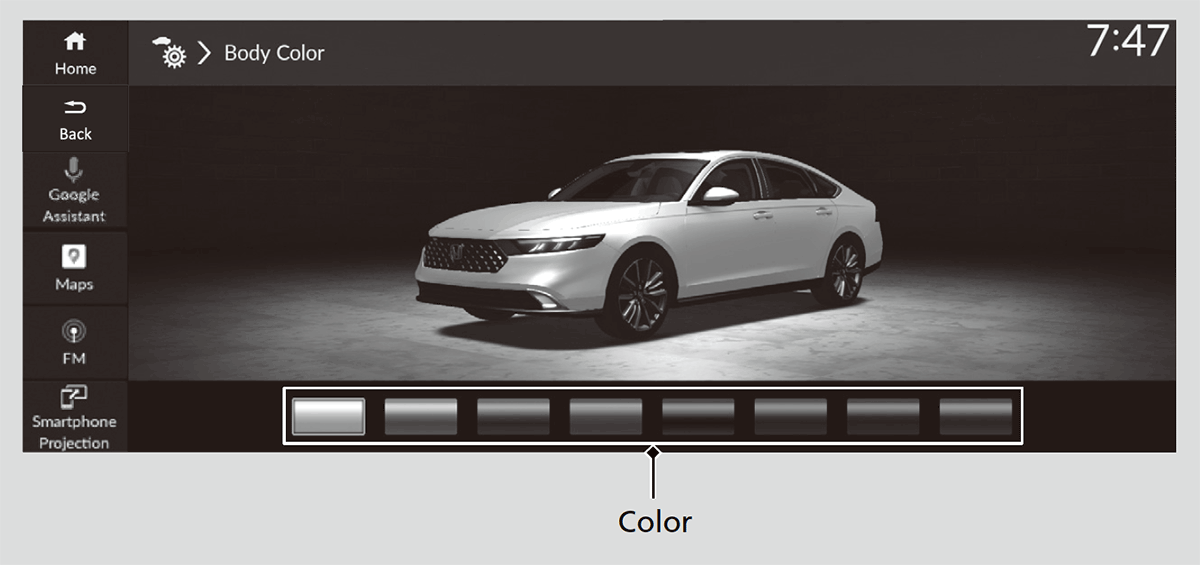

You can change the color of the vehicle image by selecting the Menu.
TPMS Calibration*
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
TPMS Calibration
|
Calibrates the tire pressure monitoring system (TPMS).
|
Calibrate
|
Driver Assist System Setup
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Forward Collision Warning Distance
|
Changes the distance at which Collision Mitigation Braking System (CMBS) alerts.
|
Long/Normal*1/Short
|
Head-up Warning*
|
Turns warning light On/Off for head-up flash alert.
|
On*1/Off
|
ACC Forward Vehicle Detect Beep
|
Turns audible notification On/Off when vehicle has moved in/out of Adaptive Cruise Control with Low Speed Follow range.
|
On/Off*1
|
Road Departure Mitigation Setting
|
Selects operating mode of the Road Departure Mitigation system.
|
Narrow/Normal*1/Wide/Warning only
|
Lane Keeping Assist Suspend Beep
|
Switches the LKAS suspend alert beeps on and off.
|
On/Off*1
|
Blind Spot Information*
|
Turns the blind spot information system audible alert On/Off.
|
Audible And Visual Alert*1/Visual Alert
|
- Default Setting
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Traffic Sign Recognition System Display Setting
|
Displays the traffic sign recognition system on instrument panel.
|
On*1/Off
|
Traffic Sign Recognition System Speed Limit Warning
|
Enables over speed limit warning when speed limit is exceeded.
|
On/Off*1
|
Speed Limit Warning Threshold Setting
|
When Traffic Sign Recognition System Speed Limit Warning setting is on, select speed limit warning threshold based on personal preference.
|
Speed Limit*1/
Speed Limit+3mph/ Speed Limit+5mph/ Speed Limit+10mph (When mph is selected)
Speed Limit*1/
Speed Limit+5km/h/ Speed Limit+10km/h/ Speed Limit+15km/h (When km/h is selected)
|
Driver Attention Monitor
|
Changes the setting for the driver attention monitor.
|
Tactile And Audible Alert*1/Tactile Alert/Off
|
Rear Sensor Setting*
|
Turns the Rear Parking Sensor ON or OFF. This selection will also affect the rear Low Speed Braking Control*.
|
On*1/Off
|
- Default Setting
Meter/Head-up Display*Setup
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Adjust Outside Temp. Display
|
Adjusts outside temperature reading by a few degrees.
|
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
|
“Trip A” Reset Timing
|
Selects the timing to reset Trip A.
|
When Fully Refueled/IGN Off/Manually Reset*1
|
“Trip B” Reset Timing
|
Selects the timing to reset Trip B.
|
When Fully Refueled/IGN Off/Manually Reset*1
|
Adjust Alarm Volume
|
Changes volume level of all system warnings, door opening warning, and indicator.
|
High/Mid*1/Low
|
Fuel Efficiency Backlight
|
Turns the ambient meter feature on and off.
|
On*1/Off
|
Turn by Turn Auto Display
|
Turns the pop-up information on/off in the turn-by-turn navigation in the driver information interface.
|
On*1/Off
|
Rear Seat Reminder
|
Turns the Rear Seat Reminder feature on and off.
|
On*1/Off
|
Speed/Distance Units
|
Selects the speed/distance units.
|
km/h · km/mph · miles*1
(U.S.) km/h · km*1/mph · miles (Canada)
|
- Default Setting
Driving Position Setup*
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Memory Position Link
|
Turns the driving position memory system on and off.
|
On*1/Off
|
Seat Position Movement At Entry/Exit
|
Moves the seat rearward when you get in/get out of the vehicle. Changes the setting for this feature.
|
On*1/Off
|
- Default Setting
Keyless Access Setup
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Door Unlock Mode
|
Changes which doors unlock when you grab the driver’s door handle.
|
Driver Door Only*1/All Doors
|
Keyless Access Light Flash
|
Causes some exterior lights to flash when you unlock/lock the doors.
|
On*1/Off
|
Keyless Access Beep
|
Causes the beeper to sound when you unlock/lock the doors.
|
On*1/Off
|
Remote Start System On/Off
|
Turns the remote engine start feature on and off.
|
On*1/Off
|
Lockout Prevention
|
Changes the settings for the lockout protection function.
|
On*1/Off
|
- Default Setting
Lighting Setup
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Auto High-Beam
|
Turns the auto high-beam on and off.
|
On*1/Off
|
Interior Light Dimming Time
|
Selects the length of time the interior lights stay on after doors are closed.
|
60sec/30sec*1/15sec
|
Headlight Auto Off Timer
|
Selects the length of time the exterior lights stay on after you close the driver's door.
|
60sec/30sec/15sec*1/0sec
|
Auto Light Sensitivity*
|
Changes the timing for the headlights to come on.
|
Max/High/Mid*1/Low/Min
|
Auto Headlight On with Wiper On
|
Turns headlight function at wiper operation On/Off when the headlight is in AUTO setting.
|
On*1/Off
|
- Default Setting
Door Setup
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Auto Door Lock
|
Changes the setting for the automatic locking feature.
|
With Vehicle Speed*1/Shift From P/Off
|
Auto Door Unlock
|
Changes the setting for when the doors unlock automatically.
|
All Doors When Driver’s Door Opens*1/All Doors With Shift To P/All Doors When Ignition Switched Off/Off
|
Walk Away Auto Lock
|
Changes the settings for the auto lock function when you walk away from the vehicle.
|
On/Off*1
|
Keyless Lock Answer Back
|
Turns flash of exterior lights on/off when doors are locked/unlocked by keyless remote.
|
On*1/Off
|
Keyless Remote Power Window Control
|
Turns the remote window control on and off.
|
On*1/Off
|
Lock Presetting
|
Changes the settings for the lock presetting function.
|
On*1/Off
|
- Default Setting
Climate Control Setup
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Driver Seat automatic Climate Control
|
Automatic climate control of Driver Seat with automatic air conditioner. Changes the interlocking control setting.
|
On*1/Off
|
Passenger Seat automatic Climate Control
|
Automatic climate control of Passenger Seat with automatic air conditioner. Changes the interlocking control setting.
|
On*1/Off
|
- Default Setting
INDIVIDUAL Settings
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Powertrain
|
Selects the responsiveness of the powertrain.
|
ECON/NORMAL*1/SPORT
|
Steering
|
Selects the level of steering effort.
|
NORMAL*1/SPORT
|
ACC
|
Selects the acceleration to set vehicle speed of Adaptive Cruise Control with Low Speed Follow.
|
ECON/NORMAL*1
|
Gauge
|
Selects the gauges to be displayed in the Driver Information Interface.
|
NORMAL*1/SPORT
|
- Default Setting
Maintenance Info.
Customizable Features
|
Description
|
Selectable Settings
|
---|---|---|
Maintenance Info.
|
Resets the maintenance information.
|
Select Reset Items
|
Vehicle Color Settings
You can change the body color of the vehicle image on the Vehicle Settings screen.
- Select Menu.
- Select Body Color.
- Select desired color.
* Not available on all models
- Recommended topic(s)
