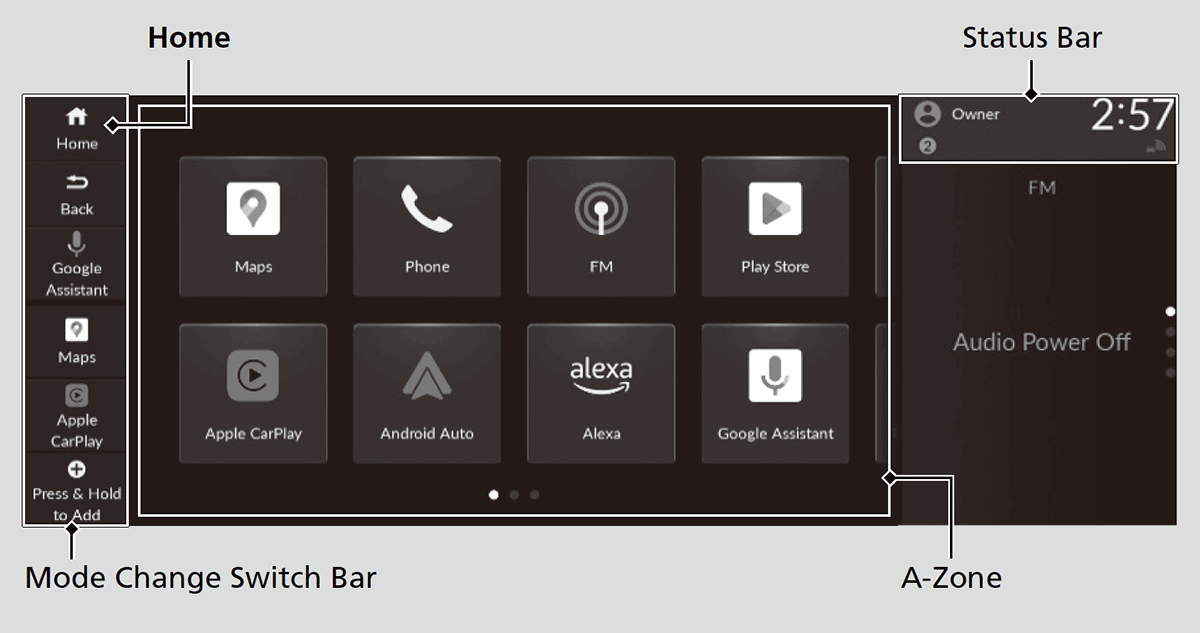

Audio/Information Screen

Displays the audio status and wallpaper. From this display, you can go to various setup options.

Detail
Touchscreen Operation
  • Use simple gestures - including touching, swiping, and scrolling - to operate certain audio functions.
  • Some items may be grayed-out during driving to reduce the potential for distraction.
  • You can select them when the vehicle is stopped or use voice commands.
  • Wearing gloves may limit or prevent touchscreen response.

You can change the touchscreen sensitivity setting.

Mode Change Switch Bar

You can also select any application from the Mode Change Switch bar. Shortcuts can be edited to open other applications; but Home, Back, and Google Assistant*1 or Alexa*1 cannot be edited.

*1: On models with Google built-in, these buttons also cannot be moved.



The power flow monitor is also displayed on the driver information interface.

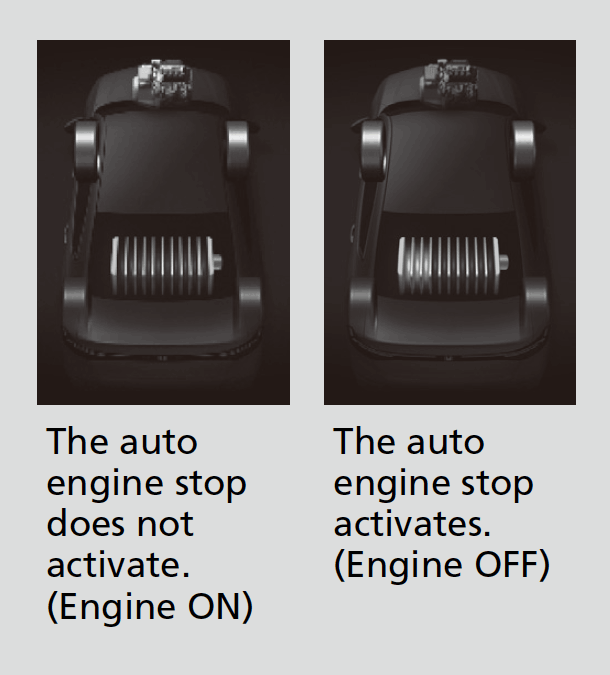

While the vehicle is stationary with the engine running, the following may appear on the audio/information screen.


While the engine provides propulsion directly to the wheels, the icon appears in the power flow monitor on the screen.

A-Zone

The A-Zone is main operation area in the 12.3 inch color touchscreen.

Switching the display

Select Home to go to the home screen.
Select the following icons on the home screen or after selecting All Apps.

Trip Computer

Displays the trip computer information.

  • Current Drive tab: Displays the current trip information.
  • Trip A/Trip B tab: Displays information for the current and three previous drives. The information is stored every time you reset Trip A/B.
    To reset the Trip A/B, select Menu, then select Delete Trip History.
    To change the setting of how to reset Trip A/B, select Menu, then select “Trip A” Reset Timing or “Trip B” Reset Timing.

Compass

Displays the compass screen.

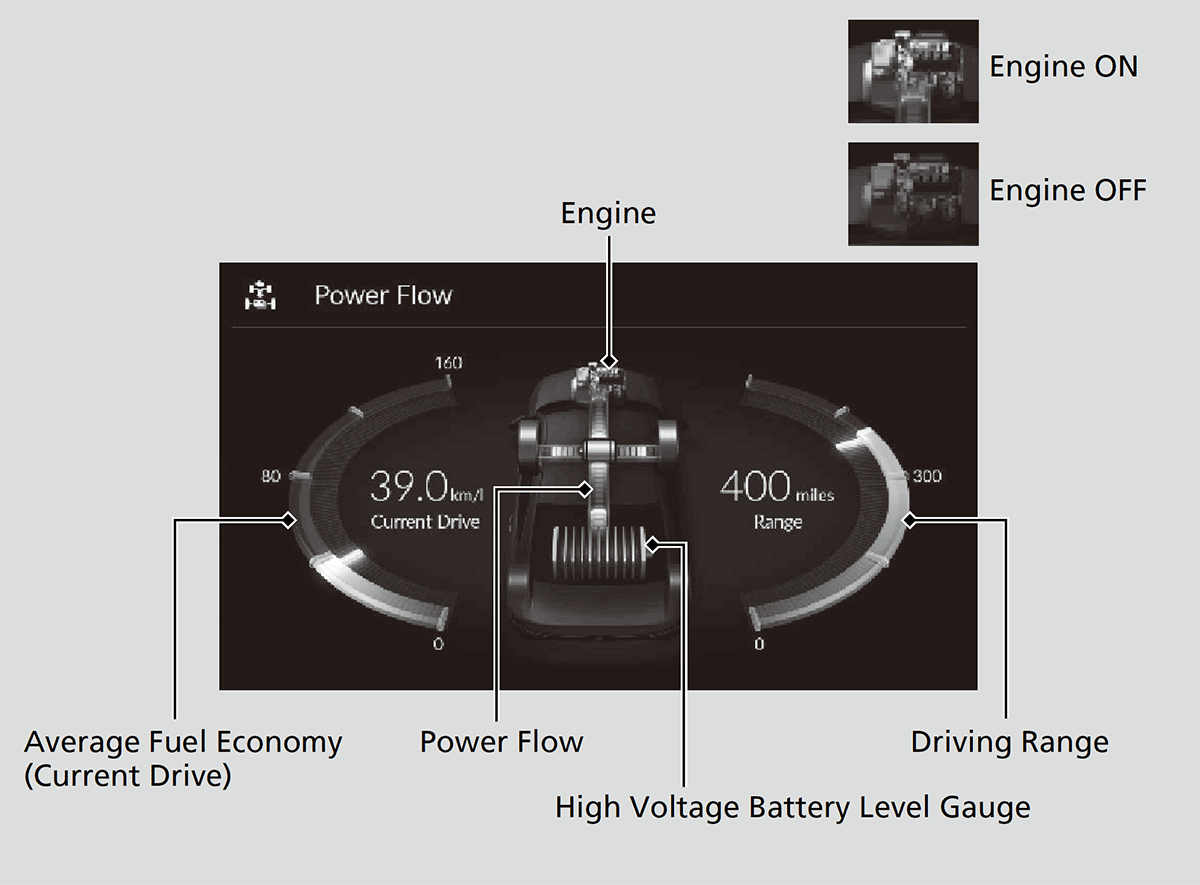

Power Flow

Displays the motor and engine power flow, average fuel economy, and range.

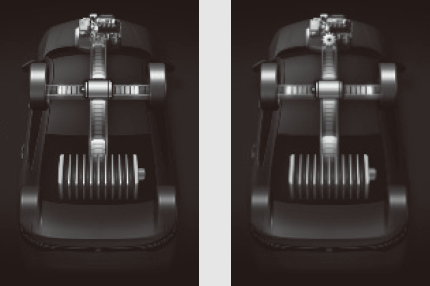

Displays the power flow, indicating what is supplying power to the vehicle and/or charging the battery.

  • The indicator for the power transmission appears in blue, and for the battery charging operation, in green.

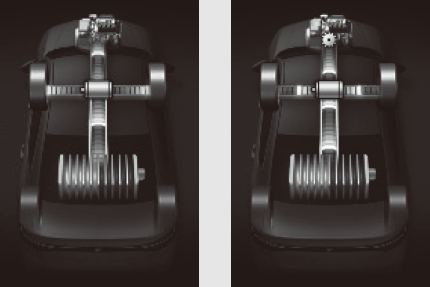

Display
Color of indicators
Vehicle’s Condition
Blue
Power is being supplied by the High Voltage battery and the engine-driven generator.
Blue
Power is being supplied by the High Voltage battery.
Blue
Power is being supplied by the engine-driven generator.

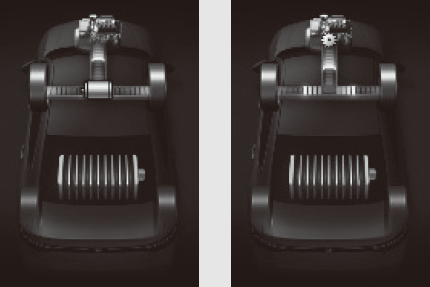

Display
Color of indicators
Vehicle’s Condition
Blue and Green
Power is being supplied directly by the engine and the High Voltage battery is being charged by the engine-driven generator.
Green
The High Voltage battery is being charged through regenerative braking.
Green
The High Voltage battery is being charged by the engine-driven generator.

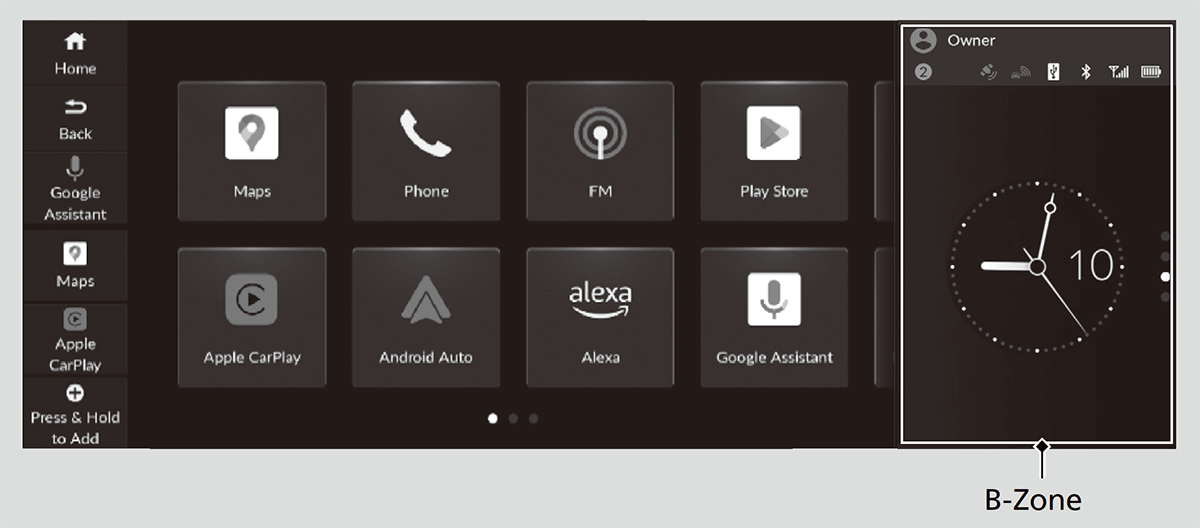

B-Zone

The B-Zone displays a card that is useful while the driver is using another application in the A-Zone.

The following cards are available:

  • Audio source
  • Clock
  • Navigation (Apple CarPlay or Android Auto)
  • Compass
  • Power Flow
  • Suggestions from Google Assistant*1
  1. Depending on the OS version
Detail
You can swipe up and down on the B-Zone to view a different card.
Page position is indicated at the right of the B-Zone.

Wallpaper Setup

You can change, store, and delete the wallpaper on the audio/information screen.

Detail
The wallpaper you set up on Clock Faces cannot be displayed on the driver information interface.
  • When importing wallpaper files, the image must be in the USB flash drive’s root directory. Images in a folder cannot be imported.
  • The file name must be fewer than 64 bytes.
  • The file format of the image that can be imported is BMP (bmp) or JPEG (jpg).
  • Up to 21 pictures can be imported.
  • The maximum image size is 4,096 × 2,304 pixels. If the image size is less, the image is displayed in the middle of the screen with the extra area appearing in black.

You cannot delete the initially imported wallpapers.

Import wallpaper

  1. Connect the USB flash drive to the USB port.
  2. Select Clock.
  3. Select Menu.
  4. Select Clock Faces.
  5. Select Add More.
  6. Import a desired picture.
    • Multiple pictures can be imported at the same time.
  7. Select Select Files.
  8. Select Add Files.
    • The display will return to the Clock Faces screen.

Select wallpaper

  1. Select Clock.
  2. Select Menu.
  3. Select Clock Faces.
  4. Select a desired wallpaper.
  5. Select Save.
    • The display will return to the Clock Faces screen.

Delete wallpaper

  1. Select Clock.
  2. Select Menu.
  3. Select Clock Faces.
  4. Select Delete Files.
  5. Select Select Files to Delete.
    • When you want to delete everything wallpaper. Select Delete All Files.
  6. Select a desired wallpaper.
  7. Select Select Files.
  8. Select Delete Files.
    • The display will return to the Clock Faces screen.

Home Screen

Detail
You can contain up to 6 pages to the home screen.

Select Home to go directly back to the first page of the home screen from any page.

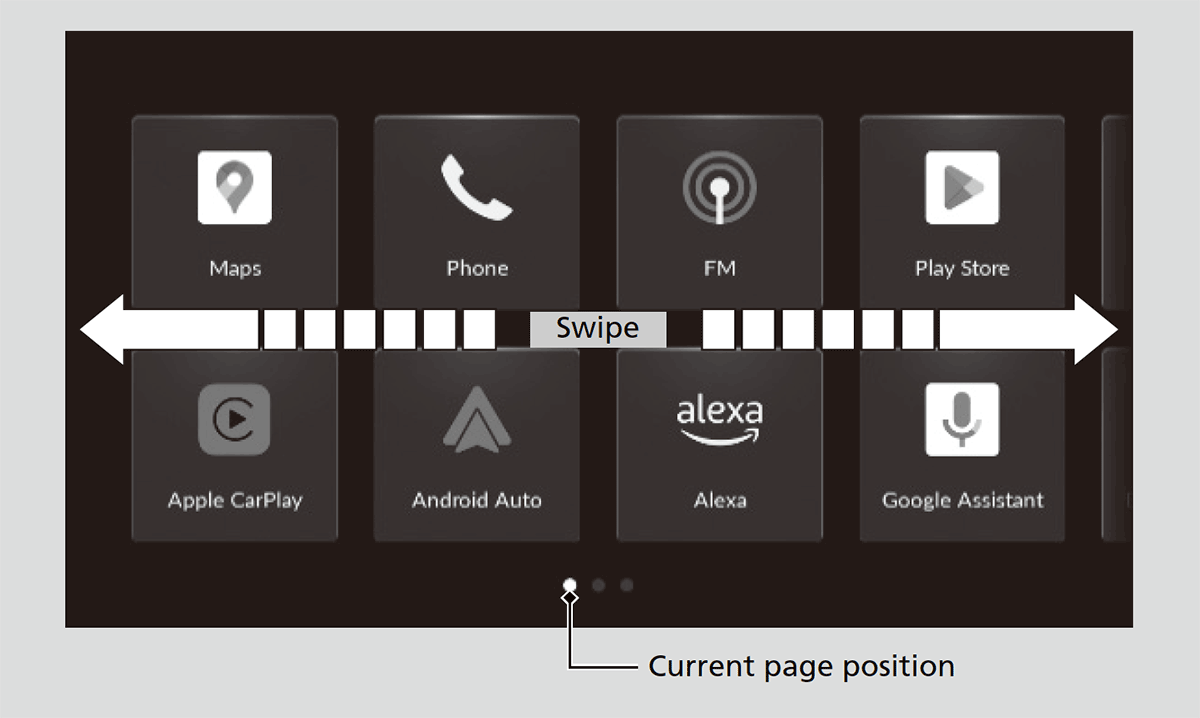

To move to the next screen

Swiping the screen left or right changes to the next screen.

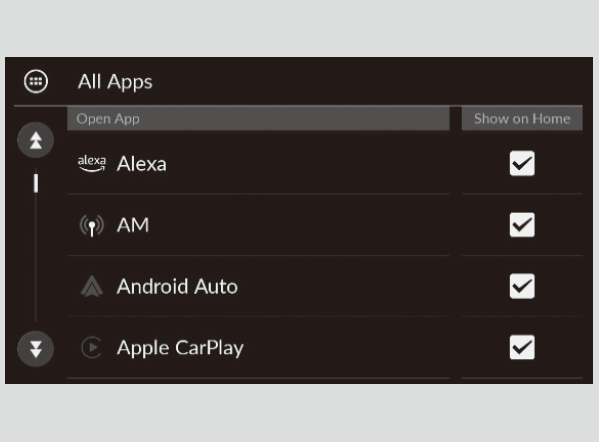

To add/remove app icons on the home screen

App icons can be added or deleted on the home screen.

  1. Select Home.
  2. Select All Apps.
  3. Select an app to check or uncheck them.
Detail
Apps will not be deleted by deleting the icon on the home screen.

To move/remove icons on the home screen

You can change location on the home screen.

  1. Select and hold an icon.
    • The screen switches to the customization screen.
  2. Drag and drop the icon to where you want it to be.

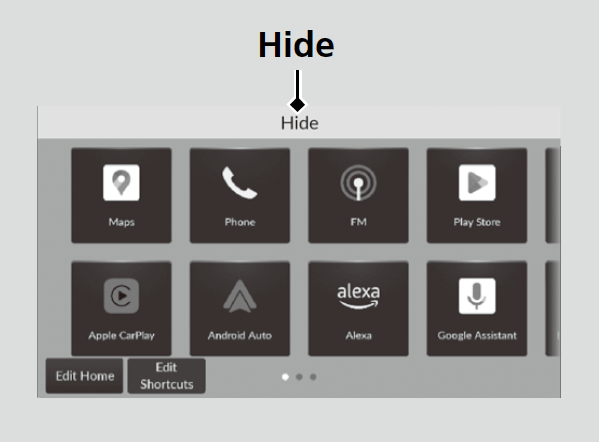

    • Drag and drop the icon to Hide to remove from the home screen.
  3. Select Home or Back.
    • The screen will return to the home screen.
Detail
Apps will not be deleted by deleting the icon on the home screen.

Select Tips to show tips. To hide them, select it again.

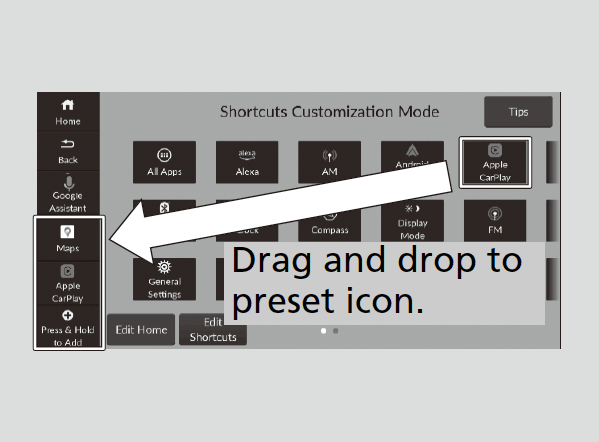

To shortcut icons on the home screen

You can store up to three*1 or four icons on the mode change switch bar.

  1. Select and hold an icon.
    • The screen switches to the customization screen.
  2. Select Edit Shortcuts.
  3. Drag and drop the icon you want to store to the left of the home screen.
    • The icon is stored as a shortcut.
  4. Select Home or Back.
    • The screen will return to the home screen.
  1. Model with Google built-in
Detail
Select Tips to show tips. To hide them, select it again.

You can also to shortcut icons on the home screen the following procedure.

  1. Select and hold an icon.

  2. Select Edit Shortcuts.

  3. Select an icon.

  4. Select shortcut location.

  5. Select Home or Back.

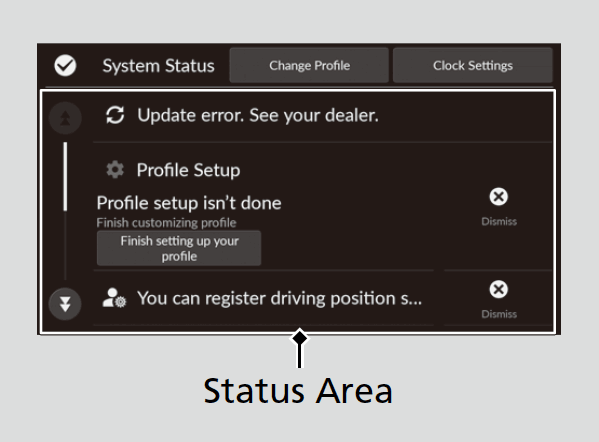

Status Bar

Shows the indicators of the information for the vehicle, connected phones, etc. in the header area. You can confirm the detail information shown in the status area by selecting the status bar.



* Not available on all models
