Audio/Information Screen

Displays the audio status and wallpaper. From this display, you can go to various setup options.

Switching the Display

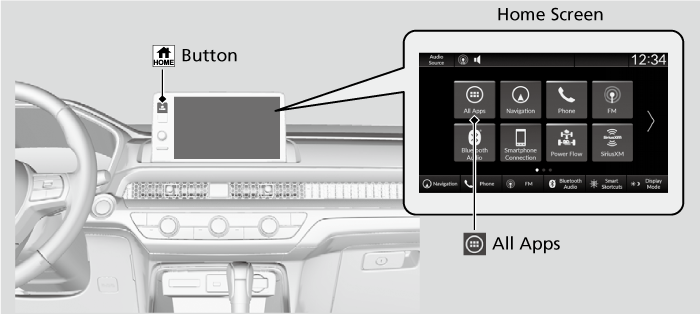

Using the audio/information screen

Press the button to go to the home screen.

Select the following icons on the home screen or after selecting All Apps.

Navigation*

Displays the navigation screen.

Phone

Displays the HFL information.

FM/AM/SiriusXM/USB/Bluetooth Audio

Displays the audio information for each.

Power Flow

Displays the power flow screen.

General Settings

Enters the customizing menu screen.

HondaLink®

Displays the HondaLink screen.

Apple CarPlay/Android Auto

Displays the Apple CarPlay or Android Auto.

Vehicle Settings

Displays the vehicle settings screen.

Trip Computer

Displays the trip computer information.
  • Current Drive tab: Displays the current trip information.
  • Trip A/Trip B tab: Displays information for the current and three previous drives.
The information is stored every time you reset Trip A/B.
To reset the Trip A/B, select Settings, then select Delete Trip History.
To change the setting of how to reset Trip A/B, select Settings, then select “Trip A” Reset Timing or “Trip B” Reset Timing.

System Updates

Updates the software version of the audio system.

Wi-Fi Hotspot*

Displays the AT&T Hotspot screen.

Clock

Displays the clock.

Smart Shortcuts

Displays the Smart Shortcuts screen.

Display Mode

Displays the brightness bar.

Compass*

Displays the compass screen.

Detail
Touchscreen operation
  • Use simple gestures - including touching, swiping and scrolling - to operate certain audio functions.
  • Some items may be grayed out during driving to reduce the potential for distraction.
  • You can select them when the vehicle is stopped or use voice commands.
  • Wearing gloves may limit or prevent touchscreen response.

You can change the touchscreen sensitivity setting.

Wallpaper Setup

You can change, store, and delete the wallpaper on the audio/information screen.

Import wallpaper

You can import up to 11 images, one at a time, for wallpaper from a USB flash drive.

  1. Connect the USB flash drive to the USB port.
  2. Press the button.
  3. Select Clock.
  4. Select Settings.

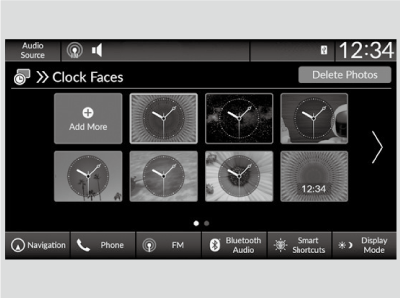

  5. Select Clock Faces.

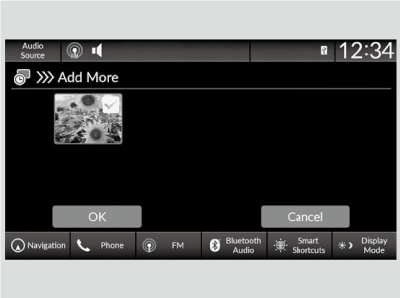

  6. Select Add More.
    • The image of the pictures stored in the USB flash drive are displayed on the list.
  1. Select a desired picture to import.
    • Multiple pictures can be selected at the same time.
  2. Select OK.
    • The selected pictures are displayed.
  3. Select Transfer.
    • It will return to the clock wallpaper setting screen.

Select wallpaper

  1. Press the button.
  2. Select Clock.
  3. Select Settings.
  4. Select Clock Faces.
  5. Select a desired picture to set.
    • The preview is displayed on the screen.
  6. Select Save.
    • The clock screen which the wallpaper has been set is displayed.

To view wallpaper once it is set

  1. Press the button.
  2. Select Clock.

Delete wallpaper

  1. Press the button.
  2. Select Clock.
  3. Select Settings.
  4. Select Clock Faces.
  5. Select Delete Photos.
  6. Select a desired picture to delete.
    • Multiple pictures can be selected at the same time.
  7. Select OK.
    • The selected pictures are displayed.
  8. Select Delete.
    • It will return to the clock wallpaper setting screen.
Detail
The wallpaper you set up on Clock Faces cannot be displayed on the driver information interface.
  • When importing wallpaper files, the image must be in the USB flash drive’s root directory.
    Images in a folder cannot be imported.
  • The file name must be less than 64 bytes.
  • The file format of the image that can be imported is BMP (bmp) or JPEG (jpg).
  • The individual file size limit is 10 MB.
  • The maximum image size is 4,096 × 2,304 pixels. If the image size is less than 1,280 × 720 pixels, the image is displayed in the middle of the screen with the extra area appearing in black.
  • If the USB flash drive does not have any pictures, the message appears.

You cannot delete the initial imported wallpapers.

Home Screen

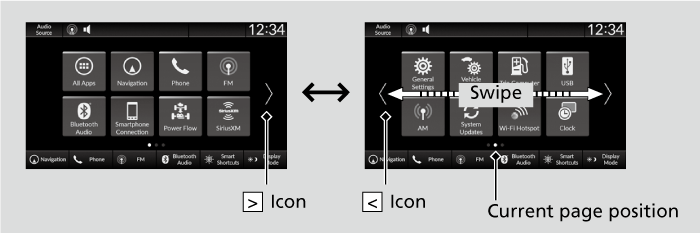

To move to the next screen

Selecting < or >, or swiping the screen left or right changes to the next screen.

Detail
The home screen has 3 pages. You can add up to 6 pages.

Press the button to go directly back to the first page of the home screen from any page.

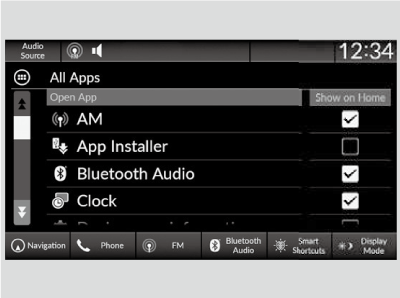

To add app icons on the home screen

App icons can be added on the home screen.

  1. Press the button.
  2. Select All Apps.
  3. Select the box checked on the desired apps.
Detail
Pre-installed apps may not start up normally. If this occurs, you need to reset the system.

If you perform Factory Data Reset, it may reset all the settings to their factory default.

In case those apps still do not startup normally even after Factory Data Reset, contact your dealer.

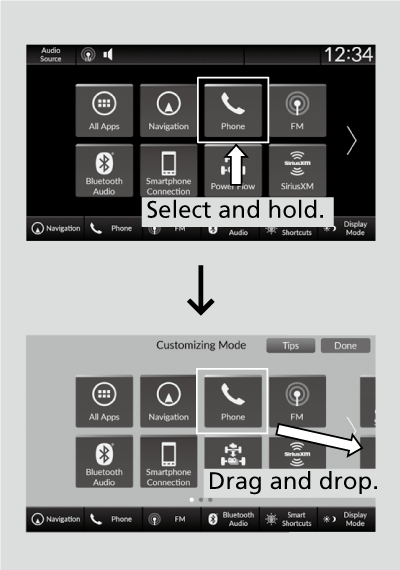

To move icons on the home screen

You can change location on the home screen.

  1. Press the button.
  2. Select and hold an icon.
    • The screen switches to the customization screen.
  3. Drag and drop the icon to where you want it to be.
  4. Select Done.
    • The screen will return to the home screen.
Detail
Select Tips to show tips. To hide them, select it again.

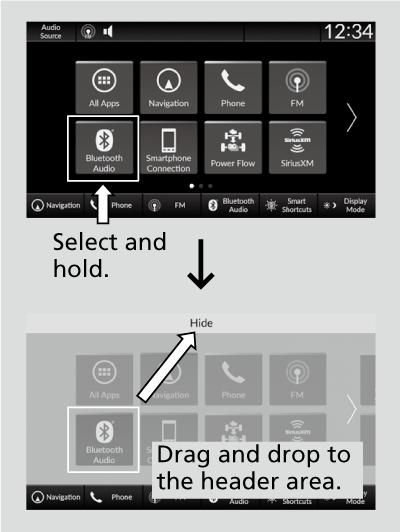

To remove icons on the home screen

You can delete the icons on the home screen.

  1. Press the button.
  2. Select and hold an icon.
    • The screen switches to the customization screen.
  3. Drag and drop the icon you want to remove to the header area.
    • The icon is removed from the home screen.
  4. Select Done.
    • The screen will return to the home screen.
Detail
You cannot delete the All Apps icon.

Apps will not be deleted by deleting the icon on the home screen.

Select Tips to show tips. To hide them, select it again.

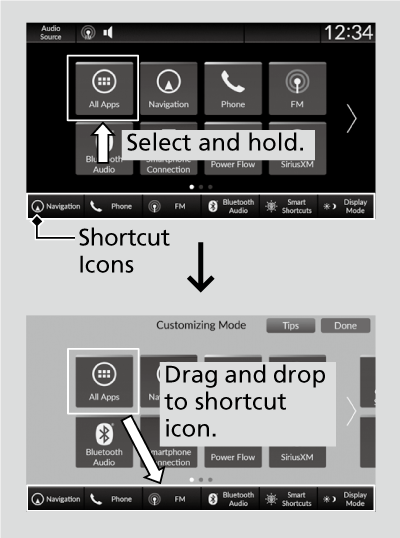

To shortcut icons on the home screen

You can store up to six icons on the bottom of the home screen.

  1. Press the button.
  2. Select and hold an icon.
    • The screen switches to the customization screen.
  3. Drag and drop the icon you want to store to the bottom of the home screen.
    • The icon is a shortcut.
  4. Select Done.
    • The screen will return to the home screen.
Detail
Select Tips to show tips. To hide them, select it again.

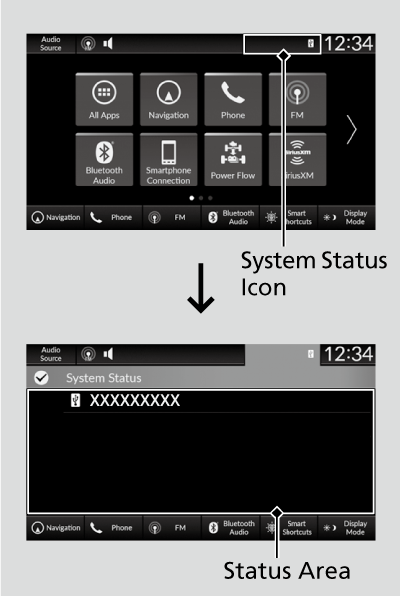

Status Area

  1. Select the system status icon.
    • The status area appears.
  2. Select an item to see the details.
  3. Press the button or select the system status icon to close the area.

* Not available on all models
