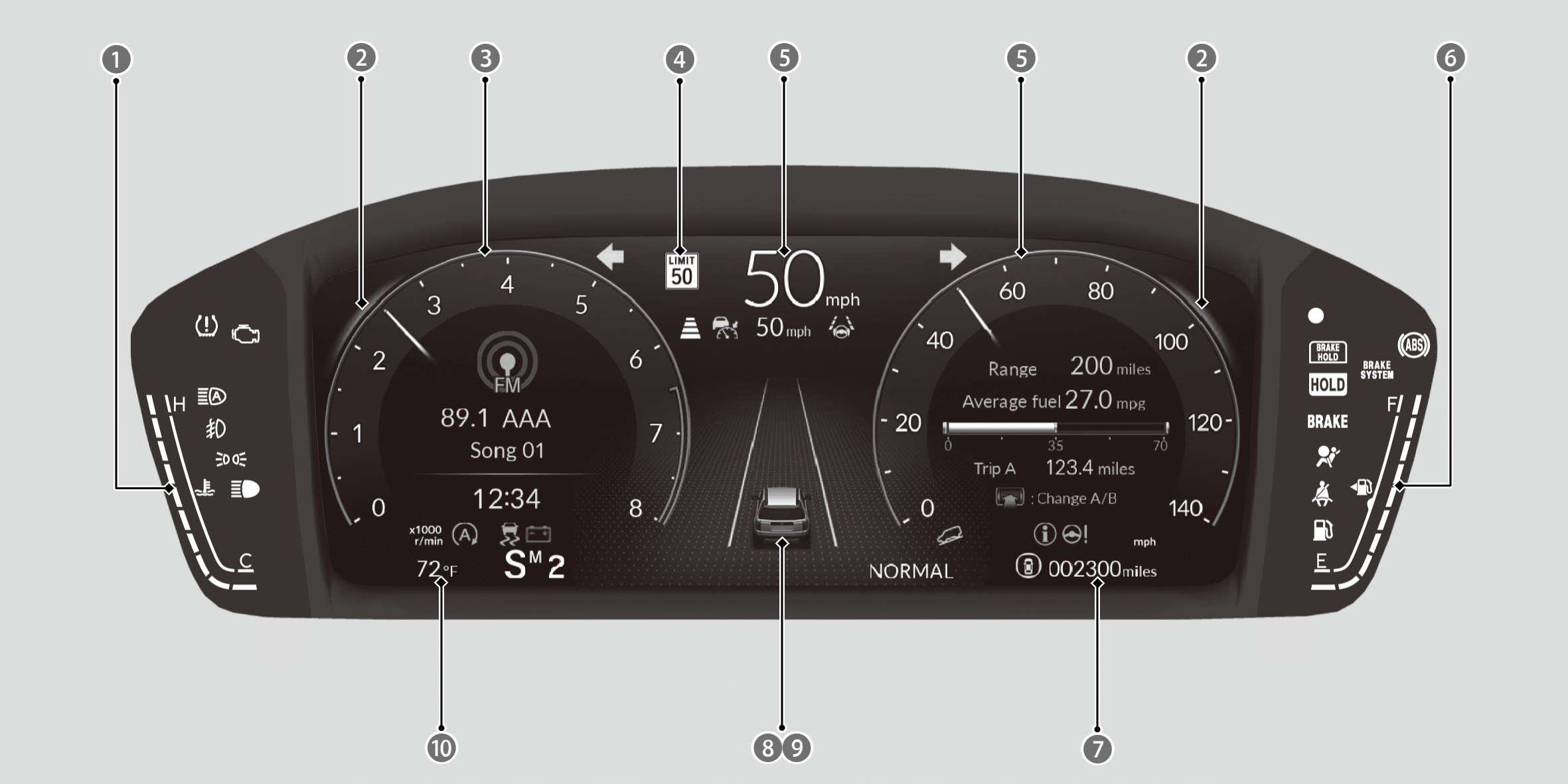

Types of Gauges

  • Temperature Gauge

  • Ambient Meter

  • Tachometer

  • Traffic Sign Recognition System

  • Speedometer

  • Fuel Gauge

  • Odometer

  • Current Mode for Adaptive Cruise Control (ACC) with Low Speed Follow, the Lane Keeping Assist System (LKAS), and Traffic Jam Assist

  • Parking Sensor System

  • Outside Temperature

Speedometer

Displays your driving speed.

  1. You can change the Speed/Distance units.

    Gauge Display Settings

    Customized Features

U.S. models

  • Vehicle Speed in mph

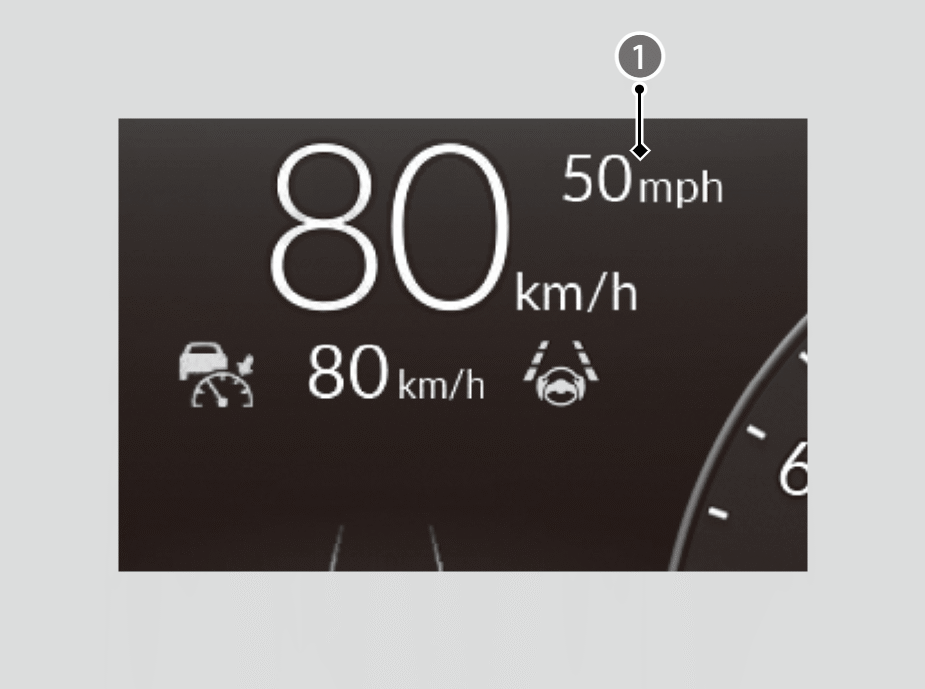

  1. If you change the unit from miles and mph to km and km/h, the current vehicle speed in mph appears next to the digital speedometer.

Tachometer

Shows the number of engine revolutions per minute.

Fuel Gauge

Displays the amount of fuel left in the fuel tank.

  1. You should refuel when the reading approaches E.
  2. Running out of fuel can cause the engine to misfire, damaging the catalytic converter.
  3. After lightly refueling, or depending on your vehicle’s condition, the actual amount of remaining fuel may differ from the fuel gauge reading.

Ambient Meter

Changes to green to indicate that the vehicle is being driven in a fuel-efficient manner with SPORT mode off.

Temperature Gauge

Displays the temperature of the engine coolant. Normally, the reading should not reach the H mark while driving.

Driving with the temperature gauge reading near the H can cause serious engine damage. Pull safely to the side of the road and allow engine temperature to return to normal.

How to Handle Overheating

Outside Temperature

Shows the outside temperature.

  1. The temperature sensor is in the front bumper.
  2. Your vehicle, surrounding vehicles, and road heat can affect the temperature reading when your vehicle speed is less than 19 mph (30 km/h). Also, the display is not updated until the temperature reading has stabilized. This may take several minutes.

You can adjust the temperature displayed on the gauge.

Customized Features

Traffic Sign Recognition System

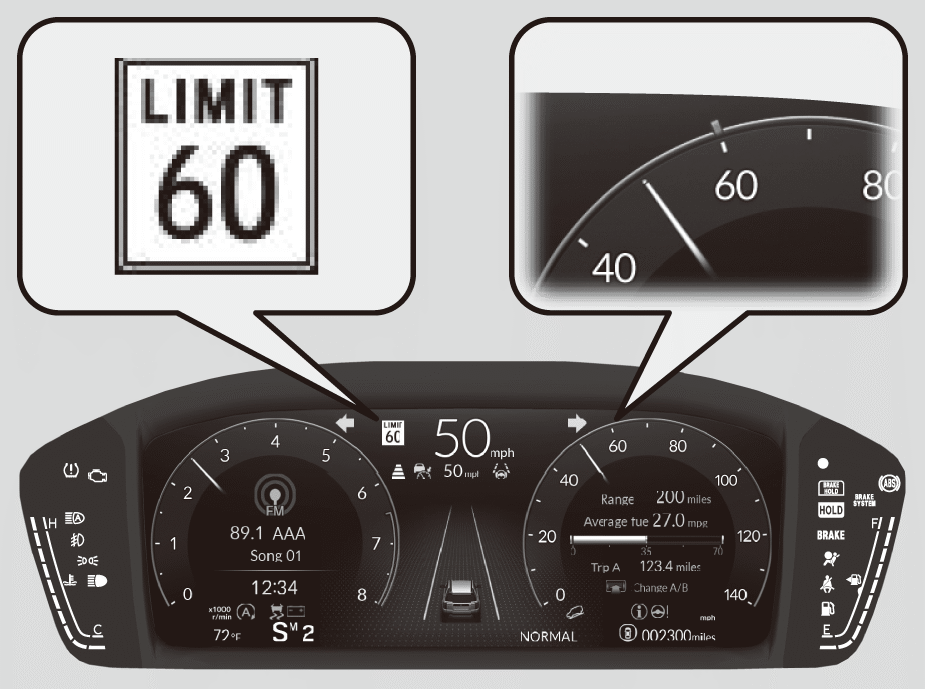

Shows certain detected traffic signs while driving. If speed limit warning is activated, the sign icon blinks when the maximum speed of the traffic sign detected is exceeded by a threshold, when compared with the vehicle speed.

About Traffic Sign Recognition System

  1. The default speed limit warning threshold is the maximum speed of the traffic sign detected.

You can adjust the threshold for speed limit warning.

Customized Features

Current Mode for Adaptive Cruise Control (ACC) with Low Speed Follow, the Lane Keeping Assist System (LKAS), and Traffic Jam Assist

Shows the current mode for ACC with Low Speed Follow, LKAS, and Traffic Jam Assist.

About ACC with Low Speed Follow

About LKAS

About Traffic Jam Assist

  • Set Speed

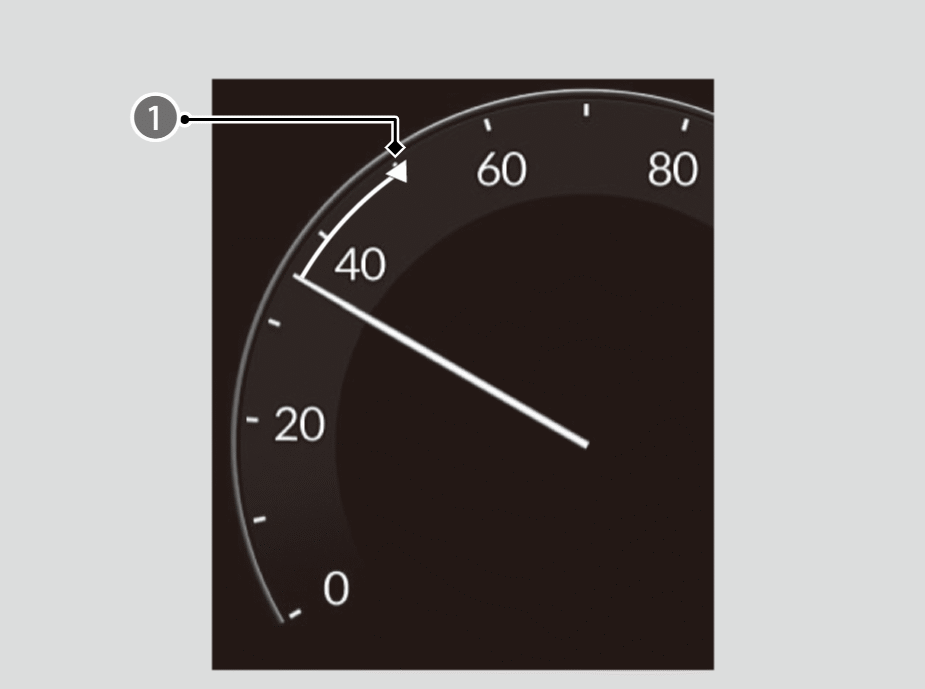

  1. When you set speed for ACC with Low Speed Follow or cruise control, a set speed mark will be displayed on the speedometer.

Parking Sensor System

Shows information about the parking sensor system.

About Parking Sensor System

  1. This display will automatically be shown when the TRAIL mode is selected.

    Drive Mode System

Odometer

Shows the total distance that your vehicle has traveled.
